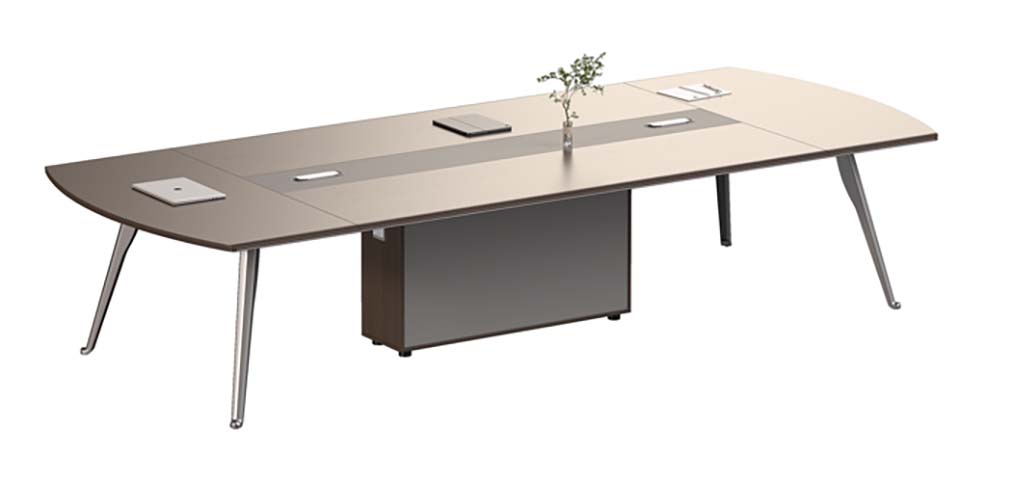

Large Boat-Shaped Laminate Conference Table with Central Cable Panel (model CT-BOAT-3200-CABLE) is listed under Conference Table. Dimensions: 3200 × 1300 × 750 mm. Materials: 25 mm wood-composite core with melamine laminate face and matching edge banding; 50 mm assembled visual edge. Load capacity: 120 kg. Product Features: Two-tone,laminate,boat-shaped,tabletop,central,cable,management,splayed,metal,legs,panel,support,cabinet. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | CT-BOAT-3200-CABLE |
| Overall dimensions (W × D × H) | 3200 × 1300 × 750 mm | Overall table dimensions | 3200 x 1300 x 750 mm |
| Central cable panel width | 220 mm | Finished Top Thickness | 45 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Distributed tabletop static load | 120 kg |
| Central cable-panel point load | 25 kg | Net product weight | 135 kg |
| Packaged gross weight | 155 kg | Recommended chair weight allowance | 180 kg total |
| Tabletop level adjustment | 10 mm total | Assembly crew requirement | 2 persons |
| Surface seating capacity | 10 persons | Seating capacity layout | 10 persons |
| Top Static Load Reference | 150 kg uniformly distributed | Tabletop substrate and finish | 25 mm wood-composite core with melamine laminate face and matching edge banding; 50 mm assembled visual edge |
| Two-tone surface treatment | Light beige writing surfaces with dark taupe side panels and a dark central cable insert | Central support cabinet | Dark melamine-faced composite panel cabinet with black adjustable glides |
| Leg structure | Splayed round tubular steel legs with polished metallic front legs and dark rear legs | Cable-access covers | Brushed aluminum-look rectangular grommet covers set into the central panel |
| Edge and hardware construction | PVC or ABS edge banding, steel mounting plates, screws, and leveling feet | Central cable routing | A 2000 x 220 mm recessed panel connects both cable ports and routes power/data cables below the tabletop |
| Cable access points | Two 160 x 70 mm rectangular access covers provide cable entry from the tabletop to the central cabinet | Support and privacy structure | The central floor cabinet carries the middle tabletop sections and forms a modesty panel for seated users |
| Floor leveling | Adjustable glides compensate up to 10 mm for uneven floors on the cabinet and leg bases | Largest carton dimensions | 1700 x 1350 x 120 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 1100× 300 mm | Reference Packaged Gross Weight | 90 kg/set in 2 cartons |
| Reference Packaging Volume | 0.55 m³/set | Boardroom and formal meeting room | Suits a 10-person executive meeting room where central power/data access and face-to-face sightlines are required |
| Conference center or training suite | Can serve project reviews, client meetings, and video conferences with documents or laptops placed along both sides | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 1300 × 750 mm | |
|---|---|---|
| Overall table dimensions | 3200 x 1300 x 750 mm | |
| Central cable panel width | 220 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load | 120 kg | |
|---|---|---|
| Central cable-panel point load | 25 kg | |
| Net product weight | 135 kg | |
| Packaged gross weight | 155 kg | |
| Recommended chair weight allowance | 180 kg total | |
| Tabletop level adjustment | 10 mm total | |
| Assembly crew requirement | 2 persons | |
| Surface seating capacity | 10 persons | |
| Seating capacity layout | 10 persons | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate and finish | 25 mm wood-composite core with melamine laminate face and matching edge banding; 50 mm assembled visual edge | |
|---|---|---|
| Two-tone surface treatment | Light beige writing surfaces with dark taupe side panels and a dark central cable insert | |
| Central support cabinet | Dark melamine-faced composite panel cabinet with black adjustable glides | |
| Leg structure | Splayed round tubular steel legs with polished metallic front legs and dark rear legs | |
| Cable-access covers | Brushed aluminum-look rectangular grommet covers set into the central panel | |
| Edge and hardware construction | PVC or ABS edge banding, steel mounting plates, screws, and leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable routing | A 2000 x 220 mm recessed panel connects both cable ports and routes power/data cables below the tabletop | |
|---|---|---|
| Cable access points | Two 160 x 70 mm rectangular access covers provide cable entry from the tabletop to the central cabinet | |
| Support and privacy structure | The central floor cabinet carries the middle tabletop sections and forms a modesty panel for seated users | |
| Floor leveling | Adjustable glides compensate up to 10 mm for uneven floors on the cabinet and leg bases |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 1700 x 1350 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Boardroom and formal meeting room | Suits a 10-person executive meeting room where central power/data access and face-to-face sightlines are required | |
|---|---|---|
| Conference center or training suite | Can serve project reviews, client meetings, and video conferences with documents or laptops placed along both sides |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
