PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 1500 × 760 mm
Overall dimensions	3600 x 1500 x 760 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight range	145 kg
Distributed tabletop load	120 kg
Central point load	40 kg
Modesty panel lateral stability	45 kg lateral resistance
Drawer slide or moving-part cycles	0 cycles
Recommended room size	5200 x 3400 mm
Surface heat resistance	80 deg C short-term contact
Edge impact durability	20 kg dropped at 100 mm
Seating capacity	12 people
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	18 mm moisture-resistant engineered wood core with 50 mm built-up edge profile
Top facing	Dark gray-brown wood-grain melamine or HPL laminate
Edge banding	2 mm impact-resistant PVC edge with rounded profile
Center modesty panel	18 mm beige matte laminated particleboard or MDF panel
End support assembly	18 mm dark and beige laminated panels joined into box-style legs
Cable channel cover	Removable beige laminated panel or aluminum-finish strip with 2400 mm visible run

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable management	Longitudinal 2400 mm channel routes power and data cables between table positions; cover appears removable
Power and data access	One 160 x 80 mm access plate position supports sockets, HDMI, RJ45, and USB modules; actual modules are not installed in the image
Seating layout	12-person face-to-face arrangement with six seats per long side and limited end seating
Floor contact and leveling	Box-style panel bases with concealed adjustable glides, 15 mm adjustment range for uneven floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	1900 x 820 x 180 mm for the largest carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Boardroom and meeting room	Suits a 12-person formal conference room requiring laptop space, document layout, and central cable routing
Executive discussion area	Fits management offices or headquarters meeting spaces using a dark wood-grain and beige executive finish

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CT-PANEL-3600-12P

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CT-PANEL-3600-12P

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CT-PANEL-3600-12POpen Export Tool

Quick Actions

Post an RFQ

Product Description

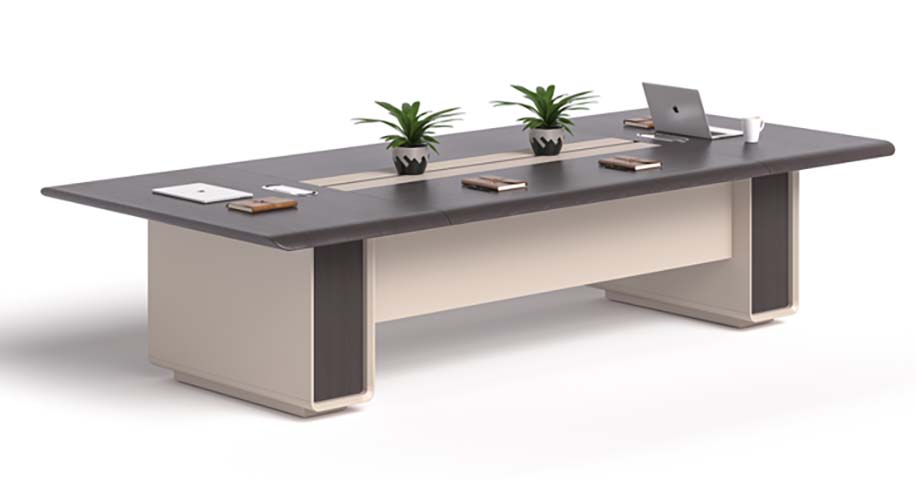

The Large Rectangular Two-Tone Conference Table with Central Cable Raceway presents a formal, substantial solution for meeting environments where cable organization and a structured seating layout are priorities. Its long rectangular top uses a dark gray-brown wood-grain melamine or HPL laminate surface, paired with beige and dark gray laminated panel supports to create a two-tone executive appearance. A beige central modesty panel reinforces the visual order from the seating side, while the box-style end supports give the table a broad, grounded profile. The tabletop is built on an 18 mm moisture-resistant engineered wood core with a 50 mm built-up edge profile and a finished top thickness of 45 mm. Its perimeter is protected by 2 mm impact-resistant PVC edge banding with a rounded profile. The center panel is an 18 mm beige matte laminated particleboard or MDF panel, and the end support assembly combines 18 mm dark and beige laminated panels into box-style legs. The support section uses an 80 mm main section with a 2 mm metal wall, and concealed adjustable glides allow a 15 mm adjustment range to accommodate uneven floors. Functionally, the table is configured for a 12-person face-to-face arrangement, with six seats along each long side and limited end seating. Each main seat is planned with 680 mm high and 900 mm wide knee clearance, supporting laptop use and document layout during formal meetings. The longitudinal central cable channel runs 2400 mm and is intended to route power and data cables between table positions. Its removable beige laminated panel or aluminum-finish strip leaves a visible 2400 mm run when specified. An access plate position measuring 160 x 80 mm can support sockets, HDMI, RJ45, and USB modules; the modules themselves are not installed. An 80 mm cable opening and a cable tray with 120 mm depth further support cable containment. This model is well suited to boardrooms, corporate meeting rooms, management offices, and headquarters discussion areas using a dark wood-grain and beige palette. For planning, the overall dimensions are 3600 x 1500 x 760 mm, and the recommended room size is 5200 x 3400 mm. Procurement teams should note the unbranded model CT-PANEL-3600P, the stated distributed tabletop load of 120 kg, central point load of 40 kg, and 45 kg lateral resistance for the modesty panel. The surface offers short-term heat resistance to 80 degrees Celsius. Delivery is planned as one set across two cartons, with a reference assembly time of 40 minutes, packaged gross weight of 90 kg per set, and packaging volume of 0.55 cubic meters per set. No moving-part cycles or drawer slides are included.

Large Rectangular Two-Tone Conference Table with Central Cable Raceway Specifications
