PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1000 × 750 mm
Overall dimensions	2400 x 1000 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Representative net weight	118 kg
Distributed worktop static load	120 kg
Single-point top load	45 kg
Panel support floor bearing capacity	160 kg per side
Recommended seated users	1 person
Top surface impact acceptance target	30 N drop impact
Hardware cyclic assembly target	20 installations
Lateral stability verification load	30 kg
Surface warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Dark worktop	25 mm substrate with 25 mm edge build-up, matte dark laminate or melamine surface and rounded profile
Beige support panels	25 mm thick wood-based panels with warm beige matte coating or melamine laminate
Modesty panel	25 mm thick beige wood-based privacy panel connected beneath the rear work surface
Edge treatment	Rounded PVC or veneered edge banding with a softened front nose and radius corners
Joining hardware	Steel cam bolts, corner brackets and machine screws with zinc or black plating
Floor contact pads	Injected polymer glide pads, 3 mm thick, under each panel support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated work configuration	750 mm fixed-height work surface paired with a 280 mm minimum knee opening for standard office chairs
Privacy and support structure	Central modesty panel conceals the seated user's leg area while tying the two panel supports together
Freestanding installation	Two full-depth floor-standing panels support the top without wall fixing or a separate metal underframe
Equipment placement	Continuous 2260 x 880 mm work zone supports a laptop, documents, task light and conference items without built-in power or cable ports

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total shipping volume	0.524 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suitable for a manager or director office where the 2400 mm surface supports a laptop, documents and guest-facing meetings
Meeting-ready workstation	Fits a 12sq m private office or open management pod with one task chair and one visitor seating position

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk requirements	Specify EN 527safety, strength and dimensional requirements for office work tables
EN 527-2 mechanical tests	Require EN 527static load, durability and stability test methods for the complete desk
EN 717-1 panel emission	Use EN 717formaldehyde release testing for wood-based panels and laminate assemblies
EN 15185 wear resistance	Reference EN 15185 abrasion testing for laminate or melamine desktop finishes
EN 15186 slip resistance	Reference EN 15186 friction testing for the horizontal desktop surface

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Use ANSI/BIFMA X5.5 for desk strength, load, fatigue and stability acceptance in North American projects

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional fit	Apply GB/T 3324 general technical requirements for wooden furniture dimensions, tolerances and workmanship
GB/T 3325 acceptance	Use GB/T 3325 test methods for wooden furniture strength, durability and stability verification
GB 18584 emission control	Specify GB 18584 limits for formaldehyde emission from indoor wooden furniture components
GB/T 10357.5 stability test	Require table stability testing according to GB/T 10357.5 before bulk acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional fit: Apply GB/T 3324 general technical requirements for wooden furniture dimensions, tolerances and workmanship;
2. GB/T 3325 acceptance: Use GB/T 3325 test methods for wooden furniture strength, durability and stability verification;
3. GB 18584 emission control: Specify GB 18584 limits for formaldehyde emission from indoor wooden furniture components;
4. GB/T 10357.5 stability test: Require table stability testing according to GB/T 10357.5 before bulk acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-PANEL-2400-CT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-PANEL-2400-CT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-PANEL-2400-CTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

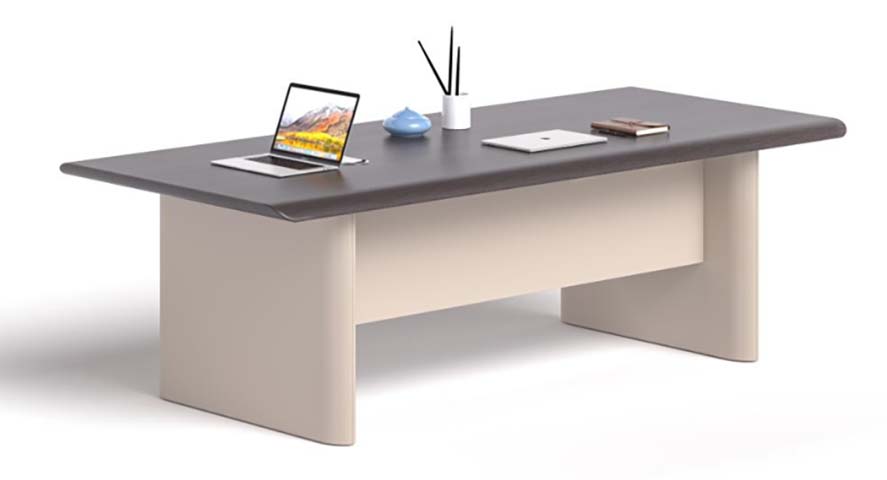

The Two-Tone Executive Office Desk is a freestanding executive workstation with a broad, rounded worktop and a clean panel-support layout. Its dark matte surface is contrasted by warm beige support panels and a central modesty panel, giving the desk a structured, modern appearance suited to professional interiors. The rounded front edge and radius corners soften the substantial rectangular form, while the two full-height floor-standing panels create an open knee space without the visual complexity of a conventional metal underframe. The desk is built from wood-based panels finished in matte laminate or melamine. The dark worktop uses a thick substrate with edge build-up to produce a substantial 50 mm finished top profile, finished with rounded PVC or veneered edge banding and a softened front nose. The beige support and modesty panels are 25 mm thick wood-based panels with a warm matte coating or melamine laminate. Steel cam bolts, corner brackets and machine screws in zinc or black plating join the assembly, while injected polymer glide pads sit beneath the panel supports to provide floor contact. Designed for a single seated user, the fixed-height work surface provides a wide main knee position and includes a central modesty panel that conceals the leg area while linking the two supports structurally. The top offers a continuous work zone for a laptop, documents, task lighting and conference items. An 80 mm cable opening and 120 mm deep cable tray support basic cable routing, although the desk does not include built-in power or cable ports. Its static load capacity is rated for distributed and single-point loading, with panel support floor bearing capacity specified separately for each side. This model is well suited to private manager or director offices, management pods and guest-facing meeting workstations. It can serve as a primary desk in a compact private office or as a statement workstation in an open management area with one task chair and one visitor position. The 2400 mm width provides generous document and equipment space while maintaining an uncluttered executive look. Procurement planning should account for the desk’s substantial weight and panel-based construction. The product ships as a knocked-down set, with assembly hardware included and a representative assembly time of forty minutes per set. Buyers should confirm final packaging counts and freight details before ordering, as logistics references present differing carton configurations. Specification choices should also verify the selected dark and beige finishes, edge treatment, glide type, cable management provisions and access for delivery and installation.

Two-Tone Executive Office Desk with Rounded Top and Panel Supports Specifications
