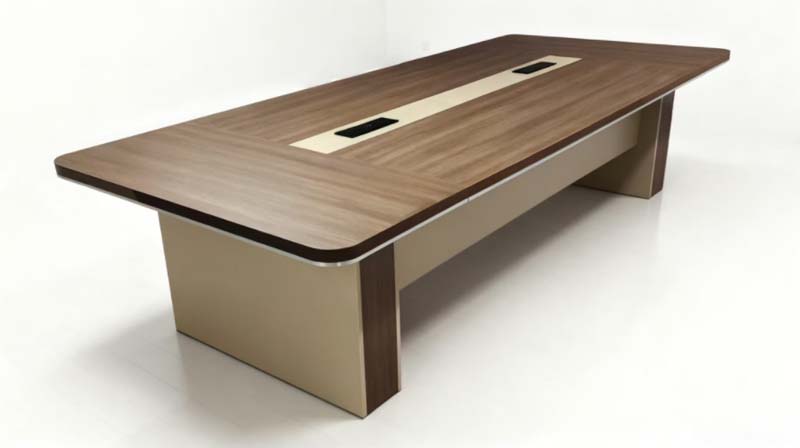

Product supplierTwo-Tone Walnut Beige Rectangular 10-Person Conference Table with Central Cable Management, High-density particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 1600 × 760 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| End pedestal support height | 710 mm | |
| End pedestal support width (along table length) | 300 mm | |
| End pedestal support depth | 1600 mm | |
| Lower structural apron height | 300 mm | |
| Central cable inlay panel width | 200 mm | |
| Cable port cutout size (each) | 200 x 80 mm | |
| Edge banding thickness | 3 mm | |
| Knee clearance height under apron | 660 mm | |
| Knee clearance depth between pedestals | 2400 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 10 persons | |
|---|---|---|
| Distributed static tabletop load | 500 kg | |
| Tabletop surface abrasion resistance | 2000 cycles | |
| Net product weight | 90 kg | |
| Leveling foot adjustment range | 15 mm | |
| Surface moisture resistance | Grade B1 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | High-density particleboard core | |
|---|---|---|
| Tabletop finish | Walnut-grain high-pressure laminate | |
| End pedestal panels | Beige matte laminate engineered wood panel | |
| Edge trim | Brushed silver aluminum edge banding | |
| Central cable inlay panel | Beige matte laminate panel with recessed port cutouts | |
| Cable port inserts | Black ABS plastic cable access covers | |
| Internal support frame | 1.5mm thick powder-coated steel reinforcement | |
| Lower apron panel | Beige laminate engineered wood | |
| Leveling feet | Nylon base with steel threaded stud | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable management trough | Full-length internal steel trough routes cables between tabletop ports and floor | |
|---|---|---|
| Dual cable access ports | Two recessed tabletop cutouts allow cable pass-through without removing full inlay | |
| Adjustable leveling feet | Threaded feet at each pedestal base adjust 15mm to stabilize on uneven floors | |
| Full-width modesty apron | Lower connecting panel between pedestals provides seated leg privacy and structural rigidity | |
| Rounded safety edges | All tabletop corners and perimeter edges are rounded to reduce impact injury | |
| Configurable data/power modules | Port cutouts support installation of power, HDMI, network, and telephone sockets | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping volume (CBM) | 0.85 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardrooms | Fits 10-person seated meetings with integrated AV cable routing for presentation equipment | |
|---|---|---|
| Training and meeting spaces | Smooth scratch-resistant laminate surface supports regular use for workshops and discussions | |
| Executive meeting areas | Sturdy panel-base construction provides a formal, stable surface for stakeholder meetings | |
| Hybrid work meeting rooms | Central cable ports support video conferencing equipment, power, and network connections |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office work tables - test methods for safety and structural durability | |
|---|---|---|
| EN 13722:2004 | Furniture - strength, durability and stability for non-domestic seating tables | |
| EN 312:2010 | Particleboard - specifications, applicable for structural wood panel performance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for office tables - desk products, applicable for structural load and stability testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural safety and finish quality | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for tabletop substrate performance | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture | |
| GB/T 17657-2013 | Test methods for surface properties of wood-based panels, applicable for laminate wear resistance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural safety and finish quality; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for tabletop substrate performance; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of formaldehyde emission for wooden furniture; 4. GB/T 17657-2013: Test methods for surface properties of wood-based panels, applicable for laminate wear resistance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
