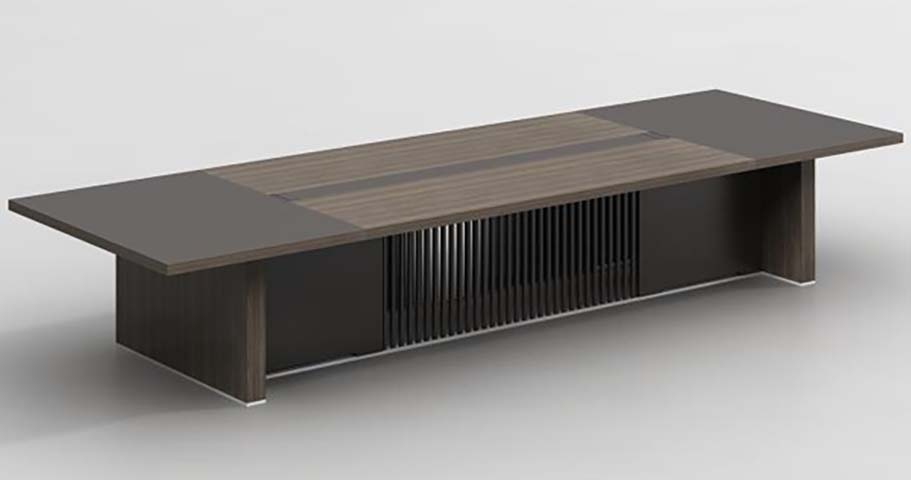

Product supplierRectangular Executive Conference Table with Central Cable Management Channel, 25mm high-density particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4200 × 1600 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 12 people | |
|---|---|---|
| Distributed work surface static load | 600 kg | |
| Point load per 100x100mm surface area | 100 kg | |
| Product net weight | 280 kg | |
| Surface abrasion resistance rating | Class 2 | |
| Structure service life reference | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main work surface substrate | 25mm high-density particleboard core | |
|---|---|---|
| Central work surface finish | Walnut wood grain high-pressure laminate | |
| End work surface finish | Dark grey matte high-pressure laminate | |
| End support panels | Dark wood grain melamine-faced engineered wood | |
| Central modesty panel slats | Powder-coated black aluminum vertical slats | |
| Bottom edge trim | Brushed stainless steel accent strip | |
| Central cable channel cover | Soft-touch black PVC flip cover | |
| Foot pads | Adjustable nylon leveling feet | |
| Internal support frame | 1.5mm thick square steel tube frame | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable management system | Flip-open access covers along full table length route power/data cables to floor | |
|---|---|---|
| Modesty panel coverage | Vertical slatted panel spans full central under-table area to block leg visibility | |
| Leveling adjustment | Adjustable foot pads at each base corner compensate for 15mm of floor unevenness | |
| End storage compartments | Closed paneled cabinet bays at each end support hold CPU units or meeting supplies | |
| Surface edge profile | 1mm beveled eased edge reduces contact pressure on forearms during long meetings | |
| Cable pass-through access | Slots in slatted modesty panel allow cables to route from table channel to floor outlets | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardrooms | Accommodates 12 attendees for executive leadership meetings and presentations | |
|---|---|---|
| Conference centers | Suits multi-tenant meeting rooms with integrated cable management for AV equipment | |
| Large private offices | Functions as an executive desk for senior staff requiring extensive work and meeting space | |
| Training facilities | Supports collaborative group training sessions with ample surface space for materials and devices | |
| Recommended matching setup | Pairs with 12 mid-back ergonomic conference chairs and under-table power/data modules |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
