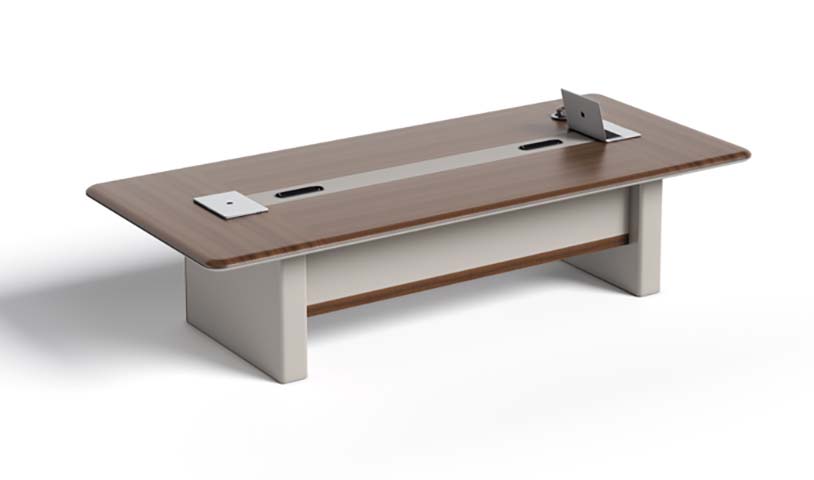

Rectangular Wood Veneer Conference Table with Cable Management (model CONF-RCT-2800-WV-CM) is listed under Conference Table. Dimensions: 2800 × 1200 × 750 mm. Materials: 25 mm E1-grade MDF or particleboard core with walnut-toned sliced wood veneer and 50 mm built-up edge. Load capacity: 120 kg. Product Features: rectangular,table,wood-veneer,work,panel,pedestal,base,central,cable,management,flip-up,connectivity,port. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | CONF-RCT-2800-WV-CM |
| Overall dimensions (W × D × H) | 2800 × 1200 × 750 mm | Finished Top Thickness | 45 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Net weight | 145 kg |
| Distributed tabletop load | 120 kg | Vertical static load acceptance target | 300 kg total |
| Horizontal stability load target | 300 N applied at 750 mm height | Edge impact acceptance target | 45 kg drop at 100 mm |
| Adjustable foot range | 10 mm | Seating capacity | 10 persons |
| Surface spread-of-flame acceptance target | Class B1 | Warranty period | 5 years |
| Seating capacity layout | 10 persons, 4 along each long side and 1 at each end | Tabletop substrate and finish | 25 mm E1-grade MDF or particleboard core with walnut-toned sliced wood veneer and 50 mm built-up edge |
| Surface coating | Matte polyurethane or UV-cured clear coating with visible brown wood grain | Edge construction | Matching veneered edge banding with 35 mm rounded corner profile and protective clear coat |
| Pedestal panels | 36 mm light greige painted MDF or particleboard panels with sealed exposed edges | Lower accent rail | Walnut-toned veneered or melamine rail running below the modesty panel |
| Central cable cover | 1.5 mm brushed silver aluminum plate with black rectangular cable brushes and two access plates | Central cable routing | Continuous 120 mm center raceway routes power, HDMI and network cables from tabletop devices toward floor outlets |
| Tabletop connectivity access | Two 260 x 160 mm hinged metal plates provide access for power modules, media sockets and cable termination | Cable brushing and dust control | Two 220 x 60 mm black brush grommets allow cable pass-through while limiting debris entry |
| Leveling and installation | Two panel pedestals bolt to a concealed steel stretcher and support the top independently of wall fixing | Gross weight | 168 kg |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 1100× 300 mm | Reference Packaged Gross Weight | 90 kg/set in 2 cartons |
| Reference Packaging Volume | 0.55 m³/set | Corporate meeting room | Suitable for a 10-person boardroom or video conference room because the center raceway supports laptops, power and AV cabling |
| Project procurement configuration | Recommended for executive offices, training suites and government meeting areas requiring durable veneer styling and concealed connectivity | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1200 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 145 kg | |
|---|---|---|
| Distributed tabletop load | 120 kg | |
| Vertical static load acceptance target | 300 kg total | |
| Horizontal stability load target | 300 N applied at 750 mm height | |
| Edge impact acceptance target | 45 kg drop at 100 mm | |
| Adjustable foot range | 10 mm | |
| Seating capacity | 10 persons | |
| Surface spread-of-flame acceptance target | Class B1 | |
| Warranty period | 5 years | |
| Seating capacity layout | 10 persons, 4 along each long side and 1 at each end |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate and finish | 25 mm E1-grade MDF or particleboard core with walnut-toned sliced wood veneer and 50 mm built-up edge | |
|---|---|---|
| Surface coating | Matte polyurethane or UV-cured clear coating with visible brown wood grain | |
| Edge construction | Matching veneered edge banding with 35 mm rounded corner profile and protective clear coat | |
| Pedestal panels | 36 mm light greige painted MDF or particleboard panels with sealed exposed edges | |
| Lower accent rail | Walnut-toned veneered or melamine rail running below the modesty panel | |
| Central cable cover | 1.5 mm brushed silver aluminum plate with black rectangular cable brushes and two access plates |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable routing | Continuous 120 mm center raceway routes power, HDMI and network cables from tabletop devices toward floor outlets | |
|---|---|---|
| Tabletop connectivity access | Two 260 x 160 mm hinged metal plates provide access for power modules, media sockets and cable termination | |
| Cable brushing and dust control | Two 220 x 60 mm black brush grommets allow cable pass-through while limiting debris entry | |
| Leveling and installation | Two panel pedestals bolt to a concealed steel stretcher and support the top independently of wall fixing |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight | 168 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate meeting room | Suitable for a 10-person boardroom or video conference room because the center raceway supports laptops, power and AV cabling | |
|---|---|---|
| Project procurement configuration | Recommended for executive offices, training suites and government meeting areas requiring durable veneer styling and concealed connectivity |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktable dimensions and safety requirements, applicable as a structural reference for a conference-height table | |
|---|---|---|
| EN 15372:2016 | Safety, strength and durability requirements for non-domestic tables, suitable for commercial conference-room verification | |
| EN 1730:2000 | Test methods for table stability, strength and fatigue loading during procurement inspection | |
| EN 717-1:2004 | Formaldehyde release test method for wood-based panels, applicable to substrate emission documentation | |
| EN 13501-1:2018 | Fire classification for construction products if flame-retardant board or veneer is specified |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional accuracy, edge finishing and panel workmanship | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture test methods applicable where a concealed steel reinforcing frame is supplied | |
| GB/T 10357.1-2089 | Table strength and load test methods, applicable to static load and stability acceptance | |
| GB 18580-2017 | Formaldehyde emission requirement for wood-based panels used in the tabletop and pedestal substrates | |
| GB 8624-2012 | Building material burning behavior classification, applicable only if the project requires a documented flame-retardant surface |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional accuracy, edge finishing and panel workmanship; 2. GB/T 3325-2017: Metal furniture test methods applicable where a concealed steel reinforcing frame is supplied; 3. GB/T 10357.1-2089: Table strength and load test methods, applicable to static load and stability acceptance; 4. GB 18580-2017: Formaldehyde emission requirement for wood-based panels used in the tabletop and pedestal substrates; 5. GB 8624-2012: Building material burning behavior classification, applicable only if the project requires a documented flame-retardant surface; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
