PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4800 × 1600 × 760 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed tabletop load	180 kg
Single-point top load	50 kg
End support vertical static load	300 kg per support
Net weight range	195 kg
Power-module lid operating cycles	10000 cycles
Seating service load	14 users
Surface temperature range	40degrees C
leveling adjustment	15 mm
Seating capacity	14 persons
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	25 mm moisture-resistant MDF or particleboard core with balanced backing
Top facing	Dark walnut wood veneer or high-pressure laminate, 1 mm wear layer
Edge treatment	Silver metallic or brushed PVC edge trim with rounded corners
Modesty panel	18 mm light-gray melamine-faced MDF or particleboard with matte painted appearance
End supports	Box-formed panel supports with dark gray outer frame and light-gray inset panel
Central cover	Brushed aluminum or silver steel cable-management cover with flip-up port

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable routing	Cables route through a 2400 x 220 mm covered center channel with four visible grommet openings
Flip-up connectivity module	The 320 x 180 mm raised module provides laptop, power, HDMI, and network connection access; final sockets require supplier schedule.
Dedicated cable hatch	The left 260 x 200 mm access plate allows floor-box connection and under-table cable pulling.
Seating configuration	The 4800 x 1600 mm top supports 14 meeting seats with clear access along both long sides and both ends.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	2450 x 830 x 180 mm per top package
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Boardroom application	Suited to a 14-person executive boardroom where laptop, network, and presentation cabling must remain concealed.
Conference facility use	Appropriate for corporate meeting rooms or training suites requiring a fixed presentation table with central power and data access.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CF-RECT-4800-WV-CM

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CF-RECT-4800-WV-CM

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CF-RECT-4800-WV-CMOpen Export Tool

Quick Actions

Post an RFQ

Product Description

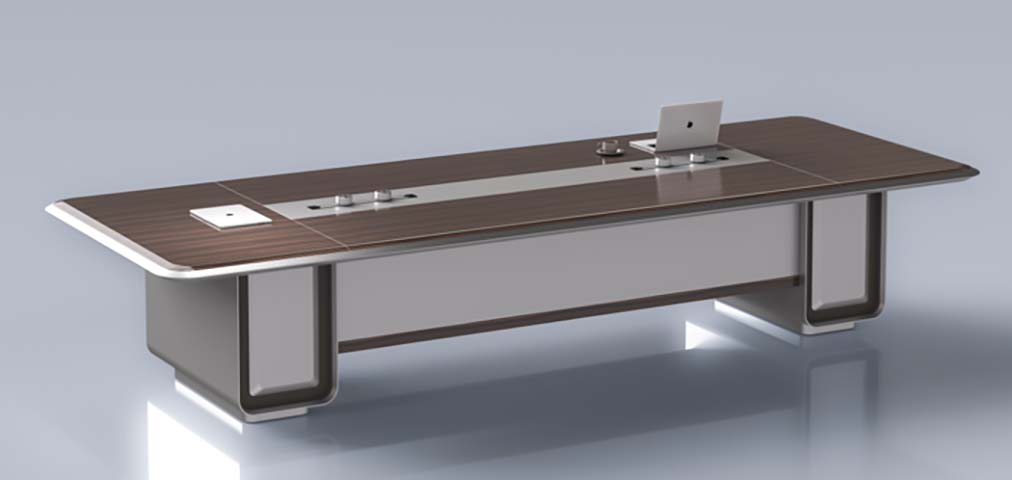

The CF-RECT-4800-WV-CM is an unbranded large rectangular conference table designed for modern executive meeting environments. Its dark walnut wood-grain surface, silver metallic edge trim, rounded corners, light-gray modesty panels, and enclosed panel supports create a structured, professional appearance. The layout places a long covered management channel down the center of the tabletop, while the box-formed end supports provide a substantial visual frame with dark-gray outer frames and light-gray inset panels. The 4800 by 1600 mm top is built on a 25 mm moisture-resistant MDF or particleboard substrate with balanced backing, producing a finished top thickness of 45 mm. The facing is available as dark walnut wood veneer or high-pressure laminate with a 1 mm wear layer. Edge protection is provided by silver metallic or brushed PVC trim. The modesty panels use 18 mm light-gray melamine-faced MDF or particleboard with a matte painted appearance, and the main support sections are 80 mm with 2 mm metal walls. Each main seat position offers 680 mm of knee clearance height and 900 mm of width. Cable and power organization is integrated into the table rather than added as a separate fixture. A 2400 by 220 mm covered center channel conceals cables and includes four visible grommet openings, each 80 mm in diameter, with a cable tray depth of 120 mm. The brushed aluminum or silver steel central cover incorporates a 320 by 180 mm flip-up connectivity module for laptop, power, HDMI, and network access. Final socket configuration must follow the supplier schedule. A separate 260 by 200 mm access plate on the left supports floor-box connection and under-table cable pulling. The power-module lid is rated for 10,000 operating cycles. The table seats 14 users, with clear access along both long sides and both ends. It is suited to executive boardrooms, corporate meeting rooms, and training suites where presentation, laptop, power, and network connections need to remain accessible yet tidy. Rated loading includes a 180 kg distributed tabletop load, a 50 kg single-point top load, and a 300 kg vertical static load per end support. The surface temperature rating is 40 degrees C, and the table weighs 195 kg net. Procurement planning should allow for two cartons per set, a packaging volume of 0.55 cubic meters, and a reference assembly time of 40 minutes. The stated packaged gross weight is 90 kg per set across two cartons; buyers should confirm freight details, final power and data socket layouts, and the selected veneer or laminate finish before purchase.

Large Rectangular Wood-Veneer Conference Table with Central Cable and Power Management Specifications
