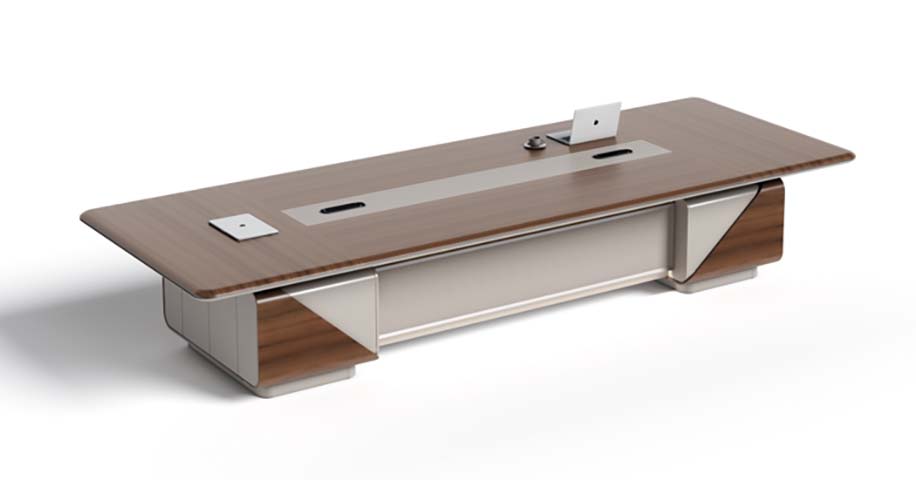

Large Walnut Veneer Conference Table with Central Cable Management and Modesty Panel (model CF-WAL-CABLE-3600) is listed under Conference Table. Dimensions: 3600 × 1350 × 750 mm. Materials: 25 mm MDF or plywood substrate with walnut wood veneer and 2 mm matching edge band. Load capacity: 200 kg. Product Features: walnut,woodgrain,rectangular,top,closed,panel,base,cable,channel,modern,executive,style. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | CF-WAL-CABLE-3600 |
| Overall dimensions (W × D × H) | 3600 × 1350 × 750 mm | Overall table size | 3600 x 1350 x 750 mm |
| Finished Top Thickness | 45 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Suggested seated capacity | 10 persons | Distributed tabletop load | 200 kg |
| Central point load | 60 kg | Net weight | 190 kg |
| Base lateral stability load | 80 kg horizontal force at 750 mm height | Cable channel capacity | 12 cables at 6 mm nominal diameter |
| Surface usable area | 4.86 m2 | Place setting width | 600 mm per person |
| Recommended floor protection | 4 floor-contact pads, 80 x 60 mm each | Seating capacity layout | 10 persons: 4 per long side and 1 at each end |
| Tabletop substrate and finish | 25 mm MDF or plywood substrate with walnut wood veneer and 2 mm matching edge band | Top edge build-up | 50 mm built-up edge using veneered substrate and protective clear coating |
| Central inset strip | Satin champagne anodized aluminum or brushed steel plate, 3 mm nominal thickness | End support panels | 36 mm painted MDF or plywood panels with walnut veneer accent faces |
| Front modesty panel | 25 mm matte light-gray painted panel set between the two end supports | Base plinth and trim | 1.5 mm steel or aluminum trim with powder-coated champagne finish |
| Central cable routing | Recessed longitudinal strip routes cables from tabletop ports toward a central under-table raceway | Dual access grommets | Two 220 x 95 mm ports provide cable entry at two meeting zones |
| Raised multimedia module | One 190 mm upright module supports a tabletop socket or conferencing interface and can retract into the strip | Modesty and leg screening | Continuous 340 mm front panel conceals cabling and seated users while retaining 620 mm knee height |
| Packing condition | Flat-packed tabletop and two panel-base assemblies with hardware carton | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | 2100× 1100× 300 mm |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | Reference Packaging Volume | 0.55 m³/set |
| Boardroom and executive meeting room | Suits a 10-person formal conference room where concealed power, network and presentation cabling are required | Corporate training or video conference space | Works with tabletop conferencing equipment and participant devices while the modesty panel hides under-table cabling |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 1350 × 750 mm | |
|---|---|---|
| Overall table size | 3600 x 1350 x 750 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Suggested seated capacity | 10 persons | |
|---|---|---|
| Distributed tabletop load | 200 kg | |
| Central point load | 60 kg | |
| Net weight | 190 kg | |
| Base lateral stability load | 80 kg horizontal force at 750 mm height | |
| Cable channel capacity | 12 cables at 6 mm nominal diameter | |
| Surface usable area | 4.86 m2 | |
| Place setting width | 600 mm per person | |
| Recommended floor protection | 4 floor-contact pads, 80 x 60 mm each | |
| Seating capacity layout | 10 persons: 4 per long side and 1 at each end |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate and finish | 25 mm MDF or plywood substrate with walnut wood veneer and 2 mm matching edge band | |
|---|---|---|
| Top edge build-up | 50 mm built-up edge using veneered substrate and protective clear coating | |
| Central inset strip | Satin champagne anodized aluminum or brushed steel plate, 3 mm nominal thickness | |
| End support panels | 36 mm painted MDF or plywood panels with walnut veneer accent faces | |
| Front modesty panel | 25 mm matte light-gray painted panel set between the two end supports | |
| Base plinth and trim | 1.5 mm steel or aluminum trim with powder-coated champagne finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable routing | Recessed longitudinal strip routes cables from tabletop ports toward a central under-table raceway | |
|---|---|---|
| Dual access grommets | Two 220 x 95 mm ports provide cable entry at two meeting zones | |
| Raised multimedia module | One 190 mm upright module supports a tabletop socket or conferencing interface and can retract into the strip | |
| Modesty and leg screening | Continuous 340 mm front panel conceals cabling and seated users while retaining 620 mm knee height |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packing condition | Flat-packed tabletop and two panel-base assemblies with hardware carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Boardroom and executive meeting room | Suits a 10-person formal conference room where concealed power, network and presentation cabling are required | |
|---|---|---|
| Corporate training or video conference space | Works with tabletop conferencing equipment and participant devices while the modesty panel hides under-table cabling |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
