Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 1400 × 750 mm | |
|---|---|---|
| Overall size | 3600 x 1400 x 750 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 165 kg | |
|---|---|---|
| Distributed tabletop load | 120 kg | |
| Static vertical load at center | 80 kg | |
| Recommended occupant load | 10 persons | |
| Top panel surface load | 0.8 kN/m2 | |
| Base stability footprint | 3100 x 1050 mm | |
| Warranty target | 5 years | |
| Seating capacity layout | 10 persons | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Dark tabletop | Matte dark engineered-wood board with impact-edged laminate surface | |
|---|---|---|
| Edge profile | 50 mm thick rounded edge with matching dark surface finish | |
| Beige base panels | Painted or melamine-faced engineered-wood slab panels | |
| Center cable strip | Beige rigid panel cover divided into removable sections | |
| Internal joining hardware | Cam locks, metal brackets, and connector plates with exposed-metal fasteners concealed | |
| Floor contact pads | Glide pads fitted below each slab support |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

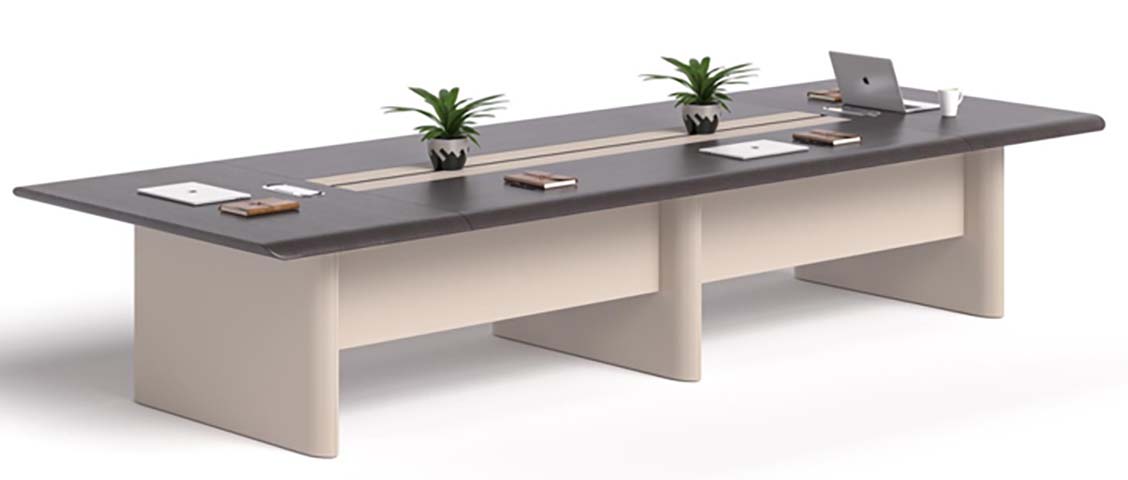

| Central cable management | A 180 x 2400 mm covered center channel routes power and data cables between meeting positions | |
|---|---|---|
| Device-ready meeting surface | The 1200 mm deep top supports laptops and documents on both sides of the cable strip | |
| Ten-position seating | The 3600 mm rectangular plan supports four chairs per side and one chair at each end | |
| Panel-base leg clearance | Three broad slab supports create two open knee bays with no central pedestal obstruction |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton size | 1900 x 1450 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate meeting room | Suits a 10-person boardroom where laptops, documents, and central power/data access are used simultaneously | |
|---|---|---|
| Executive conference area | Dark top and beige slab base provide a formal two-tone presentation for management meetings and client discussions |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety recommendation | EN 527 | |
|---|---|---|
| Mechanical safety recommendation | EN 1730 | |
| Surface emission recommendation | EN 13986 |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB/T 39600, E1 limit | |
|---|---|---|
| Physical and chemical surface recommendation | GB/T 4893.1 to GB/T 4893.9 | |
| Furniture structural safety recommendation | GB/T 10357.5 |
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB/T 39600, E1 limit; 2. Physical and chemical surface recommendation: GB/T 4893.1 to GB/T 4893.9; 3. Furniture structural safety recommendation: GB/T 10357.5; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
