PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	5200 × 1600 × 750 mm
Overall dimensions	5200 x 1600 x 750 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	430 kg
Distributed tabletop load	300 kg
Single pop-up module load	20 kg
Recommended occupant load	14 persons
LED service life	30,000 hours
Drawer-slide and flip module cycles	10,000 cycles
Static floor load	0.62 kPa per occupied footprint
Assembly crew requirement	4 persons
Seating capacity	14 persons
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop	Walnut-look engineered wood board with matched grain veneer or melamine face, 50 mm thick edge build-up
Edge banding	Rounded wood-grain laminated edge with layered corner profile
Central service strip	Brushed silver metal access cover with segmented removable plates
Modesty panels	Warm white matte painted MDF panels with vertical fluted ribs
End support cabinets	Box-formed painted MDF support case with matching rounded vertical edges
Pop-up hardware	Aluminum-alloy faceplates with black plastic or metal cable covers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable management	Continuous 260 mm tabletop service channel routes power, HDMI, network, and laptop cables to the under-floor body
Pop-up connectivity	Two powered lift modules provide a combined 8 power/USB/network positions when raised and sit flush when closed
Cable port groups	Two recessed black cable grommet groups provide 4 pass-through openings for temporary laptop connections
Integrated ambient lighting	Warm LED strip illuminates the fluted modesty panel and operates through an accessible low-voltage driver

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Boardroom meeting room	Suits executive and video-enabled boardrooms requiring 14 seats, concealed cabling, and central pop-up power
Corporate meeting and presentation area	Supports laptop-based presentations, conference phones, and cable-controlled tabletop setup

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CFM-5200-14P-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CFM-5200-14P-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CFM-5200-14P-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

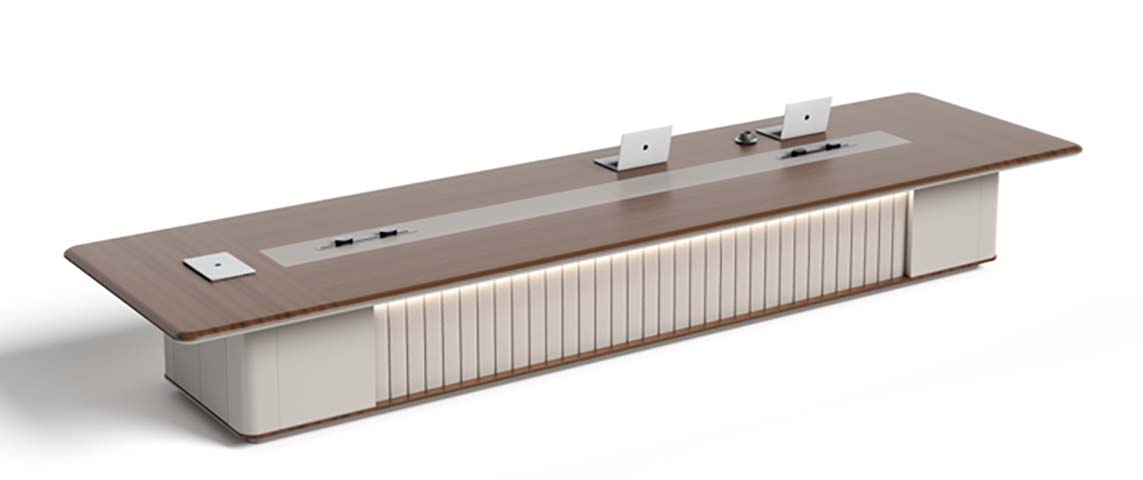

The Large Integrated Boardroom Conference Table, model CFM-5200P-LED, is an unbranded rectangular meeting table designed for executive and technology-enabled meeting environments. Its long, substantial form creates a formal boardroom layout for 14 persons, with a broad walnut-look engineered wood top and a central service strip that keeps the visual presentation clean while supporting power, data, and presentation equipment. The table measures 5200 x 1600 x 750 mm, with a 45 mm finished top, 50 mm edge build-up, rounded wood-grain laminated edge banding, and layered corner profiling. Each main seat is supported by 680 mm high and 900 mm wide knee clearance. The support structure uses an 80 mm main section with a 2 mm metal wall, paired with box-formed painted MDF end support cabinets featuring matching rounded vertical edges. Warm white matte painted MDF modesty panels add a softer architectural character through vertical fluted ribs, which are highlighted by the integrated warm LED strip. The strip is powered through an accessible low-voltage driver and is rated for a 30,000-hour service life. Beneath the top, a continuous 260 mm tabletop service channel routes power, HDMI, network, and laptop cables toward the under-floor body. The channel is covered by a brushed silver metal access strip with segmented removable plates, while aluminum-alloy pop-up modules provide a flush, refined surface when closed. Two powered lift modules offer a combined 8 power, USB, and network positions when raised, and each pop-up module is rated for a 20 kg load. Two recessed black cable grommet groups add four pass-through openings for temporary laptop connections. An 80 mm cable opening and a 120 mm deep cable tray support organization below the surface, with black plastic or metal cable covers helping to maintain a neat finish. The table is suited to executive boardrooms, video-enabled meeting rooms, and corporate presentation spaces where conference phones, laptops, and cabling should remain controlled rather than exposed. Its distributed tabletop load is rated at 300 kg, net weight is 430 kg, and static floor load is 0.62 kPa per occupied footprint, all of which should be reviewed against room access, floor capacity, and installation logistics. Procurement planning should also account for delivery in two cartons, a packaged gross weight of 90 kg per set, packaging dimensions of 2100 x 1100 x 1000 x 300 mm, packaging volume of 0.55 cubic meters, and a reference assembly time of 40 minutes per set. Buyers should confirm available power and data feeds, under-floor or wall connection locations, seating configuration, and maintenance access to the service channel and LED driver before installation.

Large Integrated Boardroom Conference Table Specifications
