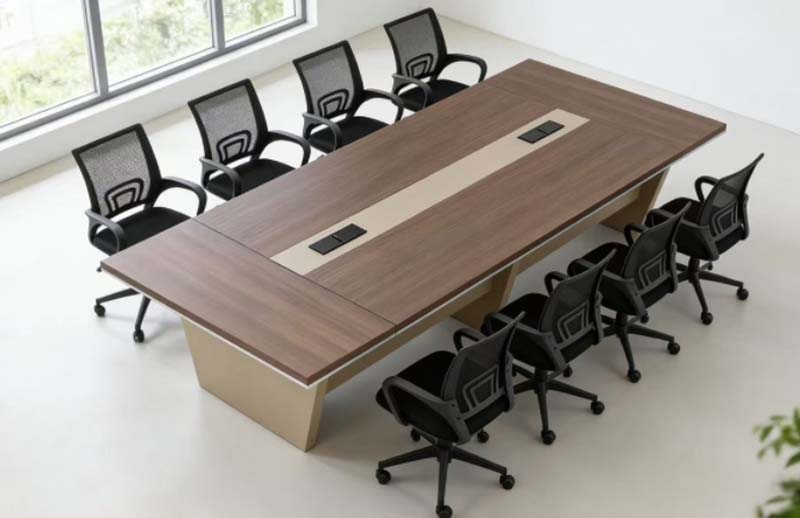

Product supplier8-Person Rectangular Walnut-Tone Conference Table with Central Cable Management, High-density MDF core with walnut woodgrain laminate overlay
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 1200 × 750 mm | |
|---|---|---|
| Tabletop thickness | 38 mm | |
| Central cable inlay width | 200 mm | |
| End support base dimensions | 700 x 600 x 725 mm | |
| Edge band thickness | 3 mm | |
| Perimeter seated knee clearance | 650 mm | |
| Power module spacing along center | 1800 mm | |
| End panel wall thickness | 25 mm | |
| Under-table cable trough depth | 80 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load | 450 kg | |
|---|---|---|
| Product net weight | 180 kg | |
| Surface scratch resistance | 2000 cycles | |
| Recommended seating capacity | 8 people | |
| Finish warranty period | 3 years | |
| Leveling foot adjustment range | 15 mm | |
| Seating capacity per long side | 4 seats | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | High-density MDF core with walnut woodgrain laminate overlay | |
|---|---|---|
| Tabletop surface coating | Scratch-resistant PU clear topcoat | |
| Tabletop edge trim | 3mm thick matching walnut PVC edge banding | |
| End support panels | Beige/light taupe finished engineered wood panel | |
| Central cable inlay cover | Matte beige engineered wood panel with recessed port cutouts | |
| Under-table cable trough | Powder-coated cold-rolled steel channel | |
| Leveling feet | Nylon-base adjustable glides with steel threaded stems | |
| Power/data module housings | Matte black ABS plastic recessed enclosures | |
| Assembly hardware | Zinc-plated steel cam locks and connector bolts | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated cable management | Full-length central inlay with under-table steel trough to route power, AV, and network cables | |
|---|---|---|
| Recessed power/data ports | Two flush-mounted modules providing AC power, USB charging, RJ45 network, and HDMI connectivity | |
| Floor leveling adjustment | Threaded nylon glides at each base corner to adjust for uneven floor surfaces | |
| Knock-down assembly | Flat-pack design with pre-drilled components for on-site assembly without specialized tools | |
| Surface maintenance | Non-porous laminate surface allows wipe-clean removal of coffee, ink, and meeting room stains | |
| Modular expansion compatibility | Split tabletop design supports extension segments for larger meeting room configurations | |
| Cable access design | Flush inlay covers prevent cable snags and maintain a smooth writing surface across the full tabletop | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardrooms | Seats 8 attendees for executive meetings, presentations, and video conferences with built-in connectivity | |
|---|---|---|
| Medium office meeting rooms | Fits standard 15sqm meeting spaces with clearance for wheeled task chairs around perimeter | |
| Training and collaborative workspaces | Provides a large flat worksurface for group workshops, document review, and team activities | |
| Client consultation spaces | Professional two-tone walnut finish creates a polished appearance for client-facing meetings | |
| Hybrid meeting setups | Central cable management supports integrated conferencing equipment, laptops, and charging devices | |
| Government and institutional offices | Durable commercial construction supports daily high-frequency use in public sector meeting spaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 15372:2016 | Office furniture strength, durability and safety requirements for non-domestic tables | |
|---|---|---|
| EN 12521:2015 | Furniture strength, durability and safety requirements for seating and tables in public spaces | |
| EN 71-3:2019 | Migration of certain elements safety standard for finish materials used in commercial furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk and table products, applicable to structural load and stability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material content and indoor air quality in office settings |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to tabletop and panel structural integrity | |
|---|---|---|
| GB/T 4893.8-2013 | Furniture surface wear resistance test, applicable to laminate tabletop finish durability | |
| GB 20286-2006 | Fire safety requirements for public place furniture, applicable to boardroom use environments |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to tabletop and panel structural integrity; 2. GB/T 4893.8-2013: Furniture surface wear resistance test, applicable to laminate tabletop finish durability; 3. GB 20286-2006: Fire safety requirements for public place furniture, applicable to boardroom use environments; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
