Automatic mm / inch conversion · Core engineering specifications

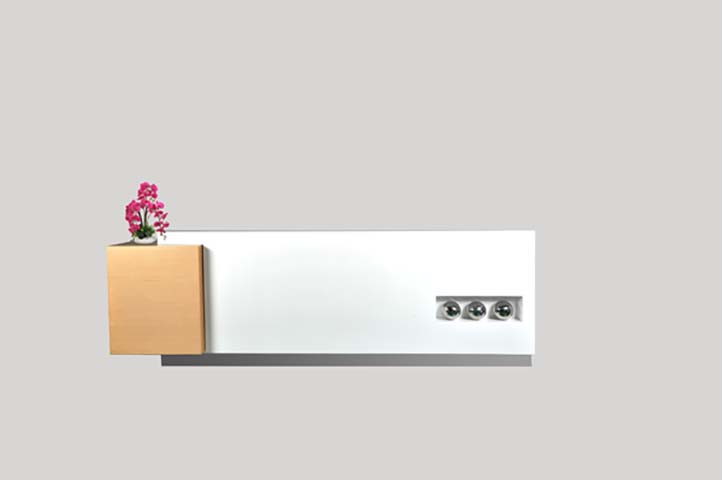

| Left attached storage cubby dimensions | 400 x 350 x 300 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Total static load capacity for top surface | 50 kg | |
|---|---|---|
| Unit net weight range | 28 kg | |
| Recommended maximum TV screen size | 65 inches | |
| Surface abrasion resistance rating | Grade 2 | |
| Structural warranty period | 3 years | |
| Available color option count | 2 | |
| Top surface load-bearing edge thickness | 25 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet body panels | 18mm thick E1 grade engineered wood with high-gloss white UV cured finish | |
|---|---|---|
| Left side cubby exterior | 18mm thick engineered wood with light beech wood grain melamine laminate | |
| Pull handles | Polished chrome plated zinc alloy spherical pulls | |
| Internal storage shelves | 15mm thick engineered wood with matching matte white laminate | |
| Back panel | 5mm thick MDF with pre-cut cable management openings | |
| Wall mounting brackets | 2mm thick powder coated carbon steel heavy-duty brackets | |
| Edge banding | 1mm thick PVC edge banding matching panel finish | |
| Surface coating hardness | H grade scratch-resistant UV coating | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Three equal-width front storage compartments | Concealed behind push-to-open doors aligned with chrome spherical pulls | |
|---|---|---|
| Floating wall-mounted installation | Fixed to wall studs via steel brackets with open space under the unit | |
| Recessed cable management access | Pre-cut back panel openings to route power and A/V cables behind the unit | |
| Push-to-open door mechanism | No protruding external pulls other than decorative spheres for flush front aesthetic | |
| Open side top display surface | Flat top on left wood cubby suitable for decorative items and small plants | |
| Adjustable internal shelf positions | 5mm spaced shelf pin holes allow shelf height adjustment for different device sizes | |
| Cleaning access under unit | 150mm floor clearance allows robot vacuum and mop access below the cabinet | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Residential living room installation | Wall-mounted under wall-mounted TVs for media device and accessory storage | |
|---|---|---|
| Small apartment and studio spaces | Floating design reduces floor footprint and creates visual spaciousness in compact rooms | |
| Modern minimalist and Nordic interior schemes | Two-tone wood and white finish complements neutral contemporary decor palettes | |
| Home theater media setups | Concealed storage hides cable boxes, game consoles and media collections out of sight | |
| Commercial reception lounge areas | Sleek low-profile design for waiting area display and brochure storage | |
| Bedroom installation opposite beds | Wall-mounted at viewing height for bedroom TV and personal item storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 Domestic and kitchen storage units and worktops - Safety requirements | Applicable for storage unit structural stability and safety validation | |
|---|---|---|
| EN 12524:2000 Furniture - Storage units - Test methods for strength and durability | Applicable for shelf and body load capacity performance testing |
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable for wood panel dimensional tolerance and structural integrity acceptance | |
|---|---|---|
| GB 18580-2017 Formaldehyde emission limits for wood-based panels | Applicable for verifying panel E1 grade formaldehyde emission compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable for wood panel dimensional tolerance and structural integrity acceptance; 2. GB 18580-2017 Formaldehyde emission limits for wood-based panels: Applicable for verifying panel E1 grade formaldehyde emission compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
