Automatic mm / inch conversion · Core engineering specifications

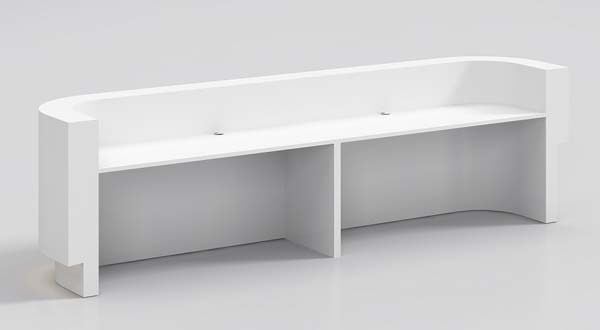

| overall dimensions | 3000 x 800 x 1100 mm | |
|---|---|---|
| work surface height | 750 mm | |
| raised privacy back guard height | 350 mm | |
| single kneehole width | 1350 mm | |
| knee clearance height | 680 mm | |
| cable grommet diameter | 80 mm | |
| front panel curvature depth | 200 mm | |
| worktop panel thickness | 38 mm | |
| side end cap thickness | 50 mm | |
| central divider thickness | 25 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| total static worktop load capacity | 800 kg | |
|---|---|---|
| supported staff capacity | 2 seated receptionists | |
| product net weight | 180 kg | |
| surface abrasion resistance | 2000 cycles | |
| warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| worktop surface | Matte white solid surface or high-pressure laminate | |
|---|---|---|
| base panel structure | 18mm thick E1 grade high-density fiberboard | |
| privacy back guard | 25mm thick matte white panel matching worktop finish | |
| central divider panel | 25mm thick white laminated board | |
| cable grommets | ABS plastic white flush-mount cable ports | |
| base support feet | Matte white powder-coated steel leveling feet | |
| front curved panel | CNC-formed curved white panel with matching matte finish | |
| surface finish | Scratch-resistant matte white non-porous coating | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| cable management | Two flush grommets route power/data cables from worktop to internal raceways | |
|---|---|---|
| privacy screening | Full-length raised back guard conceals monitors and paperwork from public view | |
| dual workstation layout | Central divider creates two independent equal-sized staff work zones | |
| leveling adjustment | Integral steel feet adjust to compensate for uneven floor surfaces | |
| knee clearance access | Two open knee openings allow standard task chair access for seated staff | |
| surface cleaning | Non-porous matte finish supports daily disinfecting and stain removal | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| shipping carton dimensions | 3100 x 900 x 400 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| corporate office lobby | Front-of-house reception area for visitor check-in and staff greeting | |
|---|---|---|
| medical clinic reception | Check-in counter for clinical front-desk staff with cleanable non-porous surface | |
| salon and spa front desk | Customer check-out and appointment booking station for two service staff | |
| hotel lobby concierge | Guest services counter for check-in assistance and inquiry handling | |
| co-working space entry | Member check-in and visitor management station for shared office facilities |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to work surface performance | |
|---|---|---|
| EN 13722:2004 | Furniture strength, durability and stability for reception and public area furniture | |
| EN 71-3:2019 | Migration of certain elements safety standard for surface finishes in public spaces |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and durability standard for commercial office work surfaces | |
|---|---|---|
| ANSI/BIFMA X7.1-2021 | Formaldehyde and TVOC emission limits for low-emitting office furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel reception desk construction | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for office use | |
| GB/T 4897.3-2003 | Performance requirements for particleboard used in furniture structural components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel reception desk construction; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for office use; 3. GB/T 4897.3-2003: Performance requirements for particleboard used in furniture structural components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
