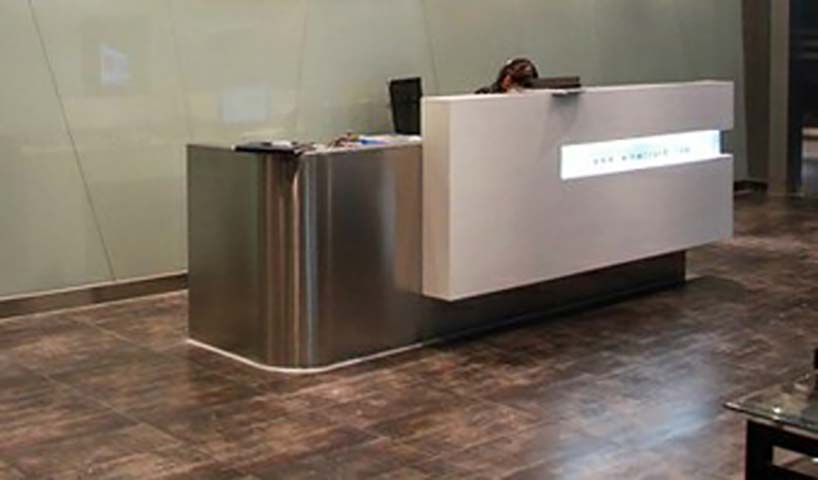

Product supplierL-Shaped Curved Brushed Stainless Steel Reception Desk with Illuminated Sign Panel, 25mm E1 grade high-density particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 800 × 1100 mm | |
|---|---|---|
| Worktop thickness | 25 mm | |
| Curved stainless steel end panel thickness | 1.5 mm | |
| Front modesty panel thickness | 18 mm | |
| Plinth base height | 100 mm | |
| Illuminated sign panel dimensions | 1200 x 200 mm | |
| Knee clearance height under worktop | 680 mm | |
| Edge band thickness | 2 mm | |
| Cable grommet diameter | 80 mm | |
| Worktop depth at staff side | 600 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop distributed static load | 100 kg/m² | |
|---|---|---|
| Drawer slide load rating | 35 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Recommended maximum seated staff count | 2 | |
| LED sign panel lifespan | 50000 hours | |
| Surface abrasion resistance | 2000 revolutions | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop core | 25mm E1 grade high-density particleboard | |
|---|---|---|
| Worktop surface | High-pressure fireproof laminate | |
| Curved end panel | 304 grade brushed stainless steel | |
| Front facade panel | 18mm matte light grey baking paint MDF | |
| Plinth base | Powder-coated dark grey steel | |
| Illuminated sign panel | Frosted acrylic diffuser with LED strip lighting | |
| Internal frame | 1.2mm thick square steel tubing | |
| Storage hardware | Cold-rolled steel ball bearing slides and soft-close hinges | |
| Edge trim | 2mm thick PVC edge banding | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Illuminated company signage | Recessed backlit LED panel with frosted diffuser | |
|---|---|---|
| Under-counter storage | Integrated lockable drawers and cabinet compartments | |
| Cable management | Desktop grommets routed to under-desk cable tray | |
| Dual-height service design | 1100mm front public counter height, 750mm rear staff work height | |
| Modular section assembly | Sectional bolted construction for on-site installation | |
| Curved end safety design | Smooth rounded brushed metal corner with no sharp edges | |
| Elevated plinth access | 100mm raised base for easy floor cleaning under the unit | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate office lobby entrance | Professional reception counter conceals staff and displays company branding | |
|---|---|---|
| Commercial building tenant entry | Durable high-traffic design for daily visitor check-in and greeting | |
| Hotel or service center lobby | Service counter with integrated lighting for guest reception and wayfinding | |
| Showroom visitor reception area | Modern aesthetic matches contemporary commercial interior design schemes | |
| Two-staff reception configuration | Length supports two concurrent reception or check-in workstations |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables safety and strength requirements | |
|---|---|---|
| EN 15372:2016 | Furniture durability and strength for non-domestic seating/desks | |
| EN 13722:2004 | Furniture assessment of surface resistance to wear |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units in office environments performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB/T 4893.8-2013 | Surface abrasion resistance test for furniture finishes | |
| GB/T 10357.1-2013 | Table static load and stability test methods |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels; 3. GB/T 4893.8-2013: Surface abrasion resistance test for furniture finishes; 4. GB/T 10357.1-2013: Table static load and stability test methods; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
