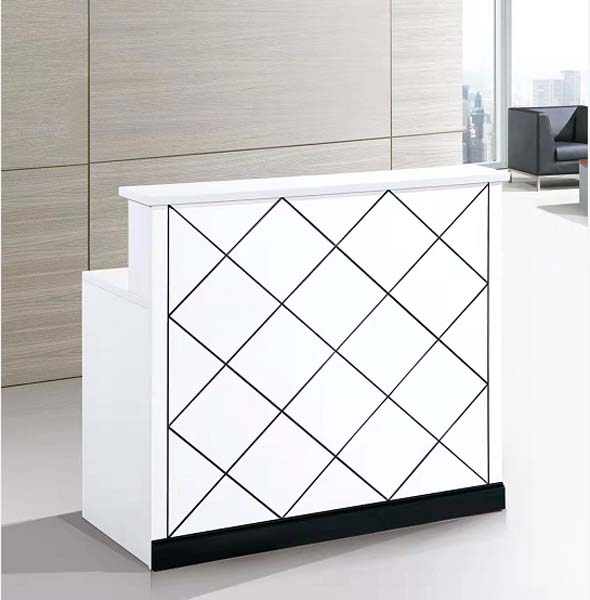

Name: Modern High-Gloss White L-Shaped Reception Desk with Black Diamond Grid Front Panel
Brand: Fanshidun
SKU: 6LXKNC

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1000 × 1100 mm
overall footprint	2400 x 1000 x 1100 mm
visitor-facing front counter height	1100 mm
attendant side work surface height	760 mm
left side return surface length	1100 mm
main work surface depth	700 mm
top panel thickness	50 mm
PVC edge banding thickness	2 mm
knee clearance height under work surface	700 mm
knee clearance depth under work surface	500 mm
front decorative kickplate height	100 mm
counter overhang beyond front panel	30 mm
cable grommet opening diameter	80 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

product net weight	120 kg
main work surface static load capacity	150 kg
drawer slide cycle rating	50000 cycles
cabinet door hinge cycle rating	80000 cycles
surface abrasion resistance	2000 cycles
recommended maximum reception attendant capacity	2 people
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

main panel substrate	18 mm high-density MDF board
surface finish	High-gloss white piano lacquer
front panel diamond accents	Black PVC laminate inlay strips
bottom kickplate	1 mm thick black matte stainless steel
edge banding	2 mm thick white PVC edge trim
internal frame supports	25 mm square powder-coated steel tubing
drawer hardware	Cold-rolled steel full-extension ball bearing slides
door and drawer locks	Brass keyed cam locks
adjustable feet	Nylon base with M8 threaded steel stem
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

two-tier counter design	Raised 1100mm visitor-facing ledge for transaction privacy, 760mm staff work surface
integrated storage	1 lockable drawer and 1 lockable cabinet door in left return section
cable management	80mm cable grommets on work surface plus under-detachable cable tray
leveling adjustment	4 adjustable feet with 15mm vertical adjustment range
keyboard tray compatibility	Pre-drilled mounting points under work surface for optional slide-out keyboard tray
logo customization	Smooth flat front panel suitable for applied company logo branding
lockable storage	Keyed locks secure all drawer and cabinet compartments to secure reception supplies
knock-down assembly	Modular panel construction for flat-pack shipping and on-site assembly
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

small office lobby	Fits compact entry areas for 2reception staff to greet visitors and process check-ins
beauty salon/spa reception	Glossy decorative finish provides modern upscale appearance for service business front counters
retail store checkout	Two-tier design supports point-of-sale equipment and customer transaction space
small hotel front desk	Compact L-shape fits boutique hotel lobbies for guest check-in and concierge support
medical/dental clinic reception	Smooth high-gloss surface is easy to sanitize between patient visits
recommended adjacent seating	Pair with 2commercial reception armchairs for visitor waiting space adjacent to counter

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 15372:2008+A1:2016	Furniture – Strength, durability and safety for non-domestic office tables, applicable for surface load and stability
EN 13722:2004	Furniture – Strength and durability of storage units for non-domestic use, applicable for cabinet and drawer performance
EN 13986:2004+A1:2015	Wood-based panels for use in construction, applicable for formaldehyde emission class E1 requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel dimensional tolerance and finish quality
GB/T 4897.3-2003	Particleboard and fiberboard for furniture use, applicable for MDF substrate performance
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel dimensional tolerance and finish quality;
2. GB/T 4897.3-2003: Particleboard and fiberboard for furniture use, applicable for MDF substrate performance;
3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · REC-LD1100-WH-DG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · REC-LD1100-WH-DG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · REC-LD1100-WH-DGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Fanshidun REC-LD1100-WH-DG is a purpose-built L-shaped reception desk designed for modern commercial front-of-house settings, defined by a sleek two-tier form that balances visitor-facing professionalism and staff functional comfort. The desk features a crisp high-gloss white piano lacquer finish across all primary surfaces, contrasted by a distinctive black diamond grid front panel formed by PVC laminate inlay strips. Its layout follows a classic L configuration, with a long main visitor-facing counter paired with a shorter left-side return surface, creating an open but defined transaction zone that separates guest and staff areas clearly. The raised front counter sits at a height that supports transaction privacy, while the lower attendant-side work surface sits at an ergonomic working height, with generous knee clearance underneath for seated staff. Constructed around 18 mm high-density MDF board panels, the desk incorporates durable supporting components for long-term commercial use. Internal frames use 25 mm square powder-coated steel tubing for structural rigidity, with 2 mm thick white PVC edge trim sealing all panel edges to resist impact and wear. The 50 mm thick top panel supports a uniformly distributed static load of 150 kg, while the bottom kickplate uses 1 mm thick black matte stainless steel for scuff resistance at floor level. Drawers run on cold-rolled steel full-extension ball bearing slides rated for 50000 open-close cycles, cabinet doors use hinges rated for 80000 cycles, and all storage compartments secure with brass keyed cam locks. The high-gloss surface carries an abrasion resistance rating of 2000 cycles, and four nylon adjustable feet with M8 threaded steel stems deliver 15 mm of vertical adjustment to level the unit on uneven floors. Core functional features support seamless daily reception operations. The two-tier design includes a raised visitor ledge for private transaction exchanges and a lower staff work surface with 80 mm cable grommets and a detachable under-desk cable tray to organize power and data cords for office equipment. The left return section houses one lockable drawer and one lockable cabinet to secure reception supplies, and pre-drilled mounting points under the work surface accommodate an optional slide-out keyboard tray. The smooth flat front panel is suited for applied company logo branding to align with organizational visual identity. The unit accommodates a maximum of 2 reception staff at a time, and its high-gloss surface is easy to sanitize between uses. This desk fits a range of compact commercial spaces, including small office lobbies for visitor greeting and check-in, beauty salon and spa entryways where its glossy finish supports an upscale ambiance, retail store checkout zones with space for point-of-sale equipment, boutique hotel lobbies for guest check-in and concierge support, and medical or dental clinic reception areas. For coordinated waiting areas, pair the desk with 2 commercial reception armchairs positioned adjacent to the counter. Procurement teams should note the unit ships across multiple cartons with a total packaged gross weight of 180 kg per set, requires 40 minutes of on-site assembly, and leaves a 1 cubic meter packaging footprint per unit.

Modern High-Gloss White L-Shaped Reception Desk with Black Diamond Grid Front Panel Specifications
