PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 700 × 1100 mm
Staff work surface height	750 mm
Front transaction surface height	1100 mm
Recessed LED plinth height	150 mm
Desktop thickness	50 mm
Edge banding thickness	2 mm
Per-staff workstation width	800 mm
Knee clearance height under work surface	680 mm
Desktop usable depth (staff side)	600 mm
Logo mounting area height (front facade)	350 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total desktop static load capacity	500 kg
Number of supported staff workstations	3
Product net weight	180 kg
Surface abrasion resistance	2000 cycles
LED strip rated lifespan	50000 hours
Warranty period	3 years
Available finish color options	6
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main panel substrate	18mm thick MDF board
Front facade finish	High-gloss UV lacquer coating
Recessed plinth diffuser	Frosted acrylic panel
Internal support frame	1.2mm thick square steel tubing
Edge banding	2mm thick PVC matching finish
LED light source	2835 SMD warm white LED strip
Desktop surface coating	Stain-resistant high-gloss paint
Feet levelers	Nylon base adjustable steel feet
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated plinth LED lighting	Warm white ambient strip light recessed in base plinth, diffused by acrylic panel
Custom company logo mounting	Flat front facade supports raised 3D logo installation at visitor eye level
Cable management system	80mm diameter desktop grommets with under-desk cable tray routing
Adjustable floor leveling	15mm height-adjustable steel feet compensate for uneven lobby flooring
Optional modular add-on storage	Compatible with lockable under-desk drawer pedestals mounted on staff side
LED power connection	Hardwired or plug-in low-voltage power supply with on/off switch located on staff side
Smooth transaction ledge	Extended front top edge supports visitor paperwork, sign-in materials and transactions
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate office lobby entry	Suitable for main entry reception, provides professional branded greeting for visitors
2-3 person reception team use	Accommodates multiple receptionists handling check-in, visitor queries and administrative tasks
Service industry lobbies	Applicable for hotel, clinic, salon or fitness center front counter use
Modern minimalist interior schemes	Glossy light grey finish with warm LED lighting matches contemporary neutral interior palettes
Branded customer-facing areas	Supports custom logo placement to display company identity at customer entry points
Open-plan public reception zones	Freestanding linear design defines reception boundary without blocking sightlines across lobby

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2019	Office worktables safety and strength requirements, applicable to staff work surface performance
EN 12521:2015	Furniture for non-domestic seating and tables strength, durability and stability requirements
EN 62471:2008	Photobiological safety of LED light sources used in furniture-mounted lighting

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel reception desk structural integrity
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to MDF substrate E1 grade requirement
GB 7000.204-2008	Safety requirements for built-in LED lighting fixtures used in furniture installations

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel reception desk structural integrity;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MDF substrate E1 grade requirement;
3. GB 7000.204-2008: Safety requirements for built-in LED lighting fixtures used in furniture installations;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RC-LIN2400-GR-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RC-LIN2400-GR-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RC-LIN2400-GR-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

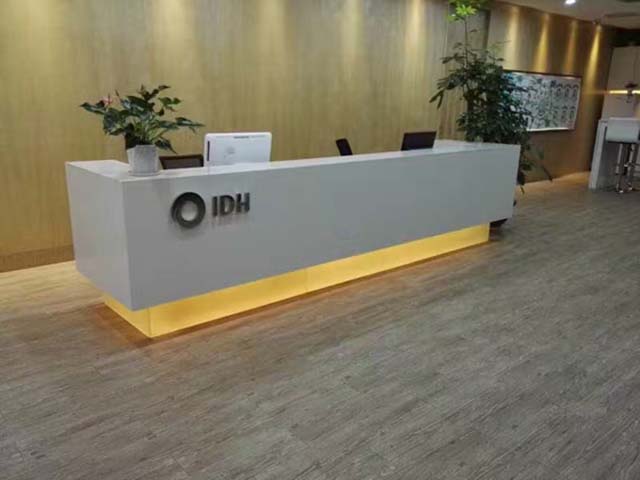

The IDH Linear High-Gloss Light Gray Office Lobby Reception Desk, model RC-LIN2400-GR-LED, is a freestanding linear reception unit crafted to align with modern minimalist interior design schemes. Its sleek, uninterrupted light gray high-gloss facade creates a polished, professional first impression, with warm white ambient lighting recessed into a frosted acrylic plinth that casts soft, diffused glow at floor level to anchor the unit in open spaces. The elevated front transaction surface sits at a height tailored for visitor interactions, while the lower staff work surface is dimensioned to support three dedicated workstations per unit, with a smooth extended front ledge to hold sign-in materials, visitor paperwork, and transaction items. The flat front facade includes a dedicated zone at visitor eye level designed to accommodate raised 3D custom company logos, supporting clear branded display in customer-facing areas. The freestanding linear form defines a clear reception boundary without blocking cross-lobby sightlines, making it ideal for unobstructed open-plan public reception zones. The desk is built around a rigid internal frame of 1.2mm thick square steel tubing, with core panels constructed from MDF board finished with stain-resistant high-gloss UV lacquer, and 2mm thick color-matched PVC edge banding for durable, seamless edges. The recessed plinth uses a frosted acrylic diffuser for its integrated 2835 SMD warm white LED strip, and the unit rests on nylon-base adjustable steel feet that compensate for uneven lobby flooring. Load-bearing desktop sections use a composite build for robust support, with a total desktop static load capacity of 500 kg, surface abrasion resistance rated for 2000 cycles, and an LED strip rated lifespan of 50000 hours. Functional details include 80mm diameter desktop cable grommets paired with under-desk cable trays for tidy wiring, dual hardwired or plug-in low-voltage LED power supply with a staff-side on/off switch, and compatibility with lockable under-desk drawer pedestals for additional storage. The unit supports three reception staff at a comfortable work height with adequate knee clearance, and comes in 6 available finish color options. This reception desk is suited for corporate office main entry lobbies, hotel, clinic, salon, and fitness center front counters, and any branded customer-facing entry space where a polished, contemporary greeting point is required. Procurement teams should note the unit ships across multiple cartons, requires 40 minutes of on-site assembly, and is covered by a 3-year warranty. Custom logo hardware and compatible add-on storage pedestals are sold separately to support tailored workspace configurations.

Linear High-Gloss Light Gray Office Lobby Reception Desk with LED Plinth Lighting Specifications
