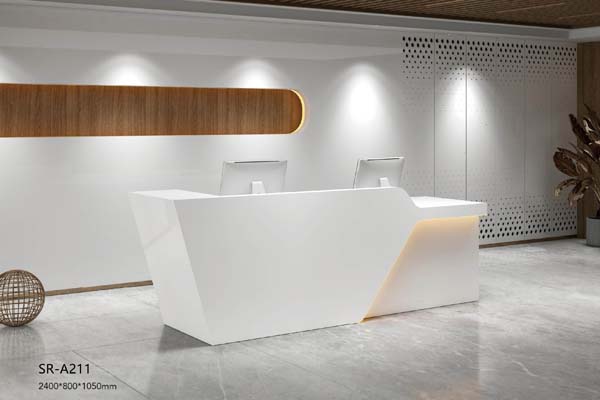

Product supplierModern Asymmetric Dual-Workstation Office Reception Desk with Integrated LED Accent Lighting, 12mm thick artificial acrylic solid surface (Corian-type)
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 800 × 1050 mm | |
|---|---|---|
| work surface height | 750 mm | |
| front facade public height | 1050 mm | |
| knee clearance height under work surface | 650 mm | |
| work surface thickness | 50 mm | |
| front panel thickness | 38 mm | |
| edge band thickness | 2 mm | |
| angled LED facet width (right side) | 400 mm | |
| cable grommet diameter | 80 mm | |
| internal leg clearance width per workstation | 700 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| top static uniform load capacity | 150 kg | |
|---|---|---|
| drawer slide dynamic load rating (if fitted) | 45 kg | |
| drawer slide cycle durability | 50000 cycles | |
| hinge cycle durability (if storage fitted) | 80000 cycles | |
| surface abrasion resistance | 2000 cycles | |
| net weight range | 280 kg | |
| recommended maximum user count | 2 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| top work surface | 12mm thick artificial acrylic solid surface (Corian-type) | |
|---|---|---|
| front facade panels | 18mm thick plywood substrate with baked matte white paint finish | |
| internal structural framing | 1.2mm thick square steel tube frame | |
| angled accent light panel | 5mm thick frosted translucent acrylic diffuser | |
| LED strip lighting | 24V low-voltage warm white LED strip (3000K) | |
| base leveler feet | M10 adjustable nylon-padded steel feet | |
| edge treatment | Seamless thermoformed solid surface edge matching top material | |
| cabinet drawer hardware (if fitted) | Cold-rolled steel three-section ball-bearing slides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| dual independent workstation layout | Two separate staff positions sized to hold full-size monitors and peripherals | |
|---|---|---|
| integrated warm white LED accent lighting | Embedded in right angled facade panel for ambient lobby branding effect | |
| concealed under-surface cable management | Internal channel routing power/data cables from grommets to floor outlets | |
| adjustable leveling feet | 15mm vertical adjustment range to stabilize desk on uneven stone flooring | |
| seamless non-porous work surface | Resists coffee, ink and dirt stains for easy daily cleaning in high-traffic areas | |
| optional integrated storage pedestal | Matching white lockable drawer unit fits under work surface for office supplies | |
| customizable logo placement | Flat front facade supports engraved or applied company branding for lobby identity | |
| wall-adjacent free-standing installation | Requires no permanent wall fixing, positioned against lobby back wall | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| corporate office lobby | Serves as front visitor check-in point for 2reception staff, matches modern minimalist interiors | |
|---|---|---|
| hotel front reception area | Provides durable, easy-clean surface for guest check-in and concierge services | |
| medical clinic admission area | Non-porous surface supports regular disinfection, dual stations support patient check-in flow | |
| co-working space entrance | Branded welcome point for member check-in and visitor registration, fits modern open-plan offices | |
| bank branch service counter | High front facade provides transaction privacy while maintaining staff approachability | |
| recommended placement | Positioned 1200mm from lobby entrance wall to allow visitor queuing and staff circulation |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applies to reception work surface performance | |
|---|---|---|
| EN 13722:2004 | Furniture strength and durability for storage units, applies to integrated drawer pedestals | |
| EN 62471:2008 | Photobiological safety of LED lighting, applies to integrated accent light strips |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applies to panel and solid-surface reception units | |
|---|---|---|
| GB/T 4897.3-2015 | Particleboard for furniture use, applies to internal structural panel substrates | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture, applies to finish emission limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to panel and solid-surface reception units; 2. GB/T 4897.3-2015: Particleboard for furniture use, applies to internal structural panel substrates; 3. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture, applies to finish emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
