Automatic mm / inch conversion · Core engineering specifications

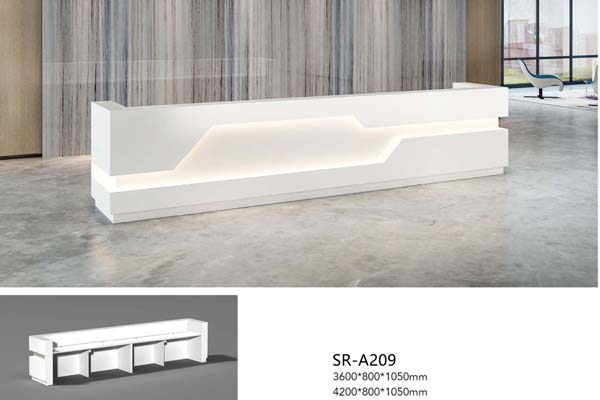

| overall dimensions (4200mm variant) | 4200 x 800 x 1050 mm | |
|---|---|---|
| work surface height | 750 mm | |
| front facade privacy height | 1050 mm | |
| under-desk knee clearance height | 680 mm | |
| under-desk knee clearance depth per station | 600 mm | |
| individual staff station width | 1200 mm | |
| work surface thickness | 50 mm | |
| recessed LED front panel height | 300 mm | |
| plinth base height | 50 mm | |
| return corner section length | 1200 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| work surface static load capacity | 200 kg | |
|---|---|---|
| integrated LED strip operational lifespan | 50000 hours | |
| maximum seated staff capacity | 3 | |
| finish abrasion resistance | 800 cycles | |
| surface static bending strength | 18 MPa | |
| product warranty period | 20 years | |
| reference unit net weight (4200mm variant) | 380 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| front facade panel | 12mm matte white artificial stone solid surface | |
|---|---|---|
| work surface top | 12mm matte white solid surface | |
| internal support frame | 1.5mm thick powder-coated square steel tubing | |
| base plinth | 18mm E1 grade MDF with matching matte white paint finish | |
| accent lighting component | 2835 SMD warm white LED strip with frosted diffuser | |
| edge banding | 2mm thick matching solid surface edge trim | |
| cable management channel | 0.8mm thick galvanized steel under-desk tray | |
| staff-side privacy back panel | 18mm E1 grade MDF with matte white laminate finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| front facade accent lighting | Integrated recessed warm white LED strip in geometric angled recess, operated by wall switch | |
|---|---|---|
| cable management system | Concealed under-desk steel tray with 80mm diameter desk grommets per station for power/data routing | |
| multi-staff seating support | Three segmented under-desk knee openings allowing side-by-side seated reception work | |
| floor mounting | Flush plinth base with adjustable leveling feet for uneven floor alignment | |
| customization support | Available in 3600mm and 4200mm standard lengths, with custom color and logo lighting options | |
| seamless joint construction | CNC-machined panel joints bonded and polished to invisible finish for monolithic appearance | |
| surface repair capability | Solid surface material allows sanding and polishing to remove minor scratches and stains | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| corporate office lobby | Primary visitor greeting and check-in point for company headquarters and large office spaces | |
|---|---|---|
| hotel lobby reception | Guest check-in and concierge workstation for upscale business and boutique hotels | |
| medical/dental clinic front office | Patient check-in and appointment scheduling desk with easy-to-clean non-porous surface | |
| co-working center entrance | Multi-staff check-in and member service desk for large shared office facilities | |
| government service hall | Public-facing service counter for document processing and citizen inquiries |
EU Market Access Requirements* EN Standards
| EN 15372:2008+A2:2016 | Safety, strength and durability for non-domestic office furniture, applicable to work surfaces | |
|---|---|---|
| EN 13722:2004 | Office furniture - Reception desks - Mechanical and structural safety requirements | |
| EN 62471:2008 | Photobiological safety for LED lighting components, applicable to integrated accent strips | |
| EN 312:2010 | Particleboard specifications, applicable to internal structural wood panels |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel structural components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, requirement for E1/ENF grade internal panels | |
| GB 7000.201-2008 | Safety requirements for fixed general purpose luminaires, applicable to integrated LED strips | |
| GB/T 4897.3-2015 | Particleboard for furniture use, applicable to internal structural panel components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel structural components; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, requirement for E1/ENF grade internal panels; 3. GB 7000.201-2008: Safety requirements for fixed general purpose luminaires, applicable to integrated LED strips; 4. GB/T 4897.3-2015: Particleboard for furniture use, applicable to internal structural panel components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
