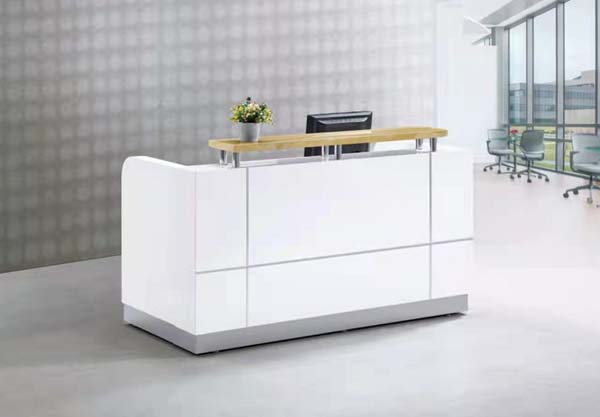

Product supplierModern Two-Tier Rounded Left Corner Office Reception Desk, 50mm thick MDF substrate with high-gloss white paint finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 750 × 1100 mm | |
|---|---|---|
| Staff work surface height | 750 mm | |
| Raised transaction shelf height | 1100 mm | |
| Staff knee clearance height | 680 mm | |
| Staff knee clearance depth | 450 mm | |
| Front privacy panel height | 1000 mm | |
| Transaction shelf depth | 350 mm | |
| Main work surface depth | 600 mm | |
| Rounded corner radius | 150 mm | |
| Metal support post diameter | 50 mm | |
| Metal kickplate height | 100 mm | |
| Panel thickness | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 150 kg | |
|---|---|---|
| Main work surface static load | 100 kg | |
| Transaction shelf static load | 20 kg | |
| Recommended seated staff capacity | 1 person | |
| Drawer slide load rating (if fitted) | 25 kg | |
| Drawer slide cycle rating (if fitted) | 50000 cycles | |
| Door hinge cycle rating (if fitted) | 80000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Commercial warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Front privacy panels | 50mm thick MDF substrate with high-gloss white paint finish | |
|---|---|---|
| Raised transaction shelf | Light oak laminate veneer over engineered wood core | |
| Shelf support posts | Polished chrome-plated steel tubular posts | |
| Base kickplate | Brushed silver stainless steel trim along bottom perimeter | |
| Staff work surface | Matte white laminate over 25mm thick particleboard core | |
| Internal structural frame | 1.2mm thick steel reinforcement brackets under work surfaces | |
| Edge banding | 2mm thick PVC matching panel finish on all exposed edges | |
| Hardware (if fitted) | Zinc-plated steel screws, cam locks and connecting fittings | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Dual-level work zones | Separate lower staff work area and raised visitor transaction shelf | |
|---|---|---|
| Cable management access | 80mm diameter cable grommet at work surface rear for monitor power/data | |
| Under-counter storage provision | Configurable space for lockable file drawer and stationary cabinet | |
| Front privacy screening | Full-height white front panel blocking view of seated staff legs and workspace | |
| Rounded corner safety | Smooth curved left corner to eliminate sharp edges in high-traffic lobbies | |
| Floor clearance under kickplate | 10mm gap between kickplate and floor for easy floor cleaning around base | |
| Work surface space allocation | Sufficient width for monitor, keyboard, guest sign-in materials and decor | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Small to medium office lobbies | Sized for 30person office entrances as primary guest greeting point | |
|---|---|---|
| Corporate reception areas | Professional white and light wood finish suitable for modern corporate office environments | |
| Small retail service counters | Raised transaction shelf supports customer check-in, payment and consultation functions | |
| Medical clinic front desks | Smooth gloss white surface is easy to clean and disinfect for public-facing healthcare settings | |
| Co-working space reception points | Compact footprint fits shared office entrance areas for member check-in services | |
| Recommended matching furniture | Pair with mid-back ergonomic reception chair and 2-seat lobby waiting bench |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for staff work surface load testing | |
|---|---|---|
| EN 13722:2004 | Furniture assessment of surface resistance to abrasion and heat, applicable for panel finish durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for static load, durability and stability, applicable for commercial reception desk testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for panel strength and dimensional accuracy | |
|---|---|---|
| GB/T 4897.3-2015 | Requirements for particleboard used in furniture, applicable for core substrate formaldehyde limits | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for panel strength and dimensional accuracy; 2. GB/T 4897.3-2015: Requirements for particleboard used in furniture, applicable for core substrate formaldehyde limits; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
