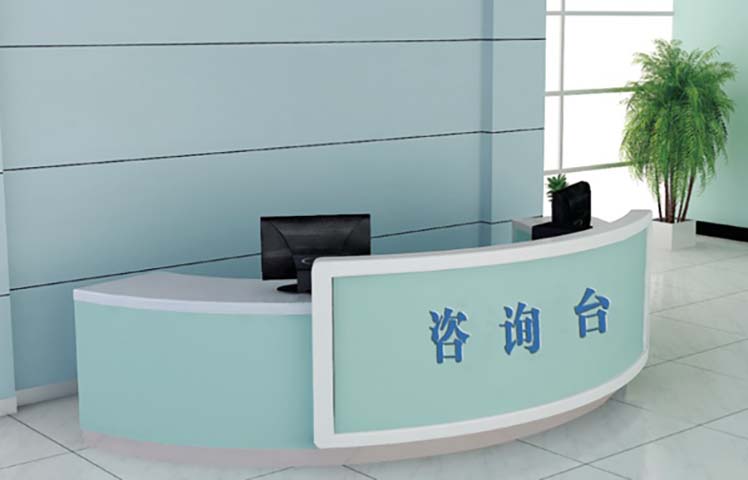

Product supplierCurved Light Blue and White Medical Lobby Information Reception Desk, 18mm E0-grade solid wood particle board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3500 × 700 × 1100 mm | |
|---|---|---|
| worktop thickness | 25 mm | |
| front panel thickness | 18 mm | |
| PVC edge band thickness | 2 mm | |
| plinth base height | 100 mm | |
| internal knee clearance height | 750 mm | |
| cable grommet diameter | 80 mm | |
| front modesty panel height | 1000 mm | |
| worktop usable depth | 600 mm | |
| curve outer radius | 1800 mm | |
| white trim border width | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total unit net weight | 150 kg | |
|---|---|---|
| worktop static load capacity | 150 kg | |
| drawer slide load rating | 35 kg | |
| hinge cycle rating | 80000 cycles | |
| surface abrasion resistance | 2000 cycles | |
| applicable attendants capacity | 2 persons | |
| product warranty period | 10 years | |
| available color options | 3 colors | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| cabinet body substrate | 18mm E0-grade solid wood particle board | |
|---|---|---|
| worktop surface | 12mm medical-grade composite acrylic artificial stone | |
| body finish | Matte baked paint in light mint blue | |
| edge trim | 2mm thick white PVC edge banding | |
| internal hardware | Cold-rolled steel silent soft-close slides and hinges | |
| plinth base | Light grey PVC-laminated engineered wood | |
| front signage panel | Light blue painted panel with raised 3D blue lettering | |
| cable management components | ABS plastic cable grommets and internal steel cable trays | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| modular internal storage | Built-in cabinet sections with hanging drawers and CPU storage | |
|---|---|---|
| integrated cable routing | Internal dedicated channels for power and data wiring | |
| full-height front modesty panel | Solid continuous panel from plinth to worktop edge | |
| raised plinth base | Floor-level sealed base design | |
| customizable front signage | 3D raised character mounting panel | |
| non-porous surface finish | Smooth seamless worktop and front panels | |
| accessible service compatibility | Modular design supports integration of lower accessible counter sections | |
| quarter-round arc layout | Curved outward-facing front profile | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| hospital lobby information points | Provides staffed consultation and direction service for patients and visitors | |
|---|---|---|
| clinic reception and registration areas | Supports dual-staff check-in and record processing with integrated cable management | |
| public service hall consultation corners | Fits quarter-round corner placement with approachable curved front profile | |
| community health center triage points | Disinfectable non-porous surfaces resist daily cleaning and high contact use | |
| corporate lobby welcome desks | Soft two-tone finish presents a professional, approachable front entrance point |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applicable to worktop load performance | |
|---|---|---|
| EN 13722:2004 | Furniture seating and tables test methods for surface resistance, applicable to finish durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, applicable for structural load verification | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, recommended for low-emission public space procurement | |
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to internal drawer and cabinet durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural performance and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor public space furniture | |
| GB/T 35607-2017 | Antibacterial performance evaluation for furniture surfaces, recommended for medical facility use | |
| GB/T 4897-2015 | Particle board quality requirements, applicable to cabinet body substrate verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural performance and finish quality; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor public space furniture; 3. GB/T 35607-2017: Antibacterial performance evaluation for furniture surfaces, recommended for medical facility use; 4. GB/T 4897-2015: Particle board quality requirements, applicable to cabinet body substrate verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
