PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 700 × 1100 mm
Staff-side work surface height	750 mm
Visitor-side front facade height	1100 mm
Left white pedestal width	600 mm
Right white pedestal width	600 mm
Work surface panel thickness	25 mm
Front panel thickness	18 mm
Edge band thickness	2 mm
Staff knee clearance height	680 mm
Cable grommet diameter	80 mm
Pedestal internal drawer clear height	150 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Work surface static load capacity	91 kg
Drawer slide dynamic load rating	25 kg
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	80000 cycles
Surface abrasion resistance	2000 cycles
Recommended maximum user count	2
Product net weight	120 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Core panel substrate	E1-grade MDF engineered wood
Central front facade finish	Dark walnut wood grain matte laminate
Side pedestal finish	White matte thermofused laminate
Work surface finish	Scratch-resistant matte laminate
Edge banding	2mm thick PVC edge trim
Structural support frame	1.2mm thick powder-coated steel internal frame
Drawer hardware	Cold-rolled steel ball-bearing slides
Cabinet door hardware	Soft-close steel concealed hinges
Leveling feet	Nylon base adjustable steel glides
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual side pedestal storage	Two side units with lockable drawers and cabinet space
Central staff work zone	Elevated-front hidden work surface for computer and paperwork
Integrated cable management	Grommets and under-desk cable tray route power/data cords
Floor-mounted installation	Secured to wall with included anchor hardware for stability
Custom logo mounting area	Flat front facade supports applied corporate signage
Reversible orientation option	Return can be configured for left or right corner placement
Soft-close drawer operation	Drawers close silently without slamming
Adjustable leveling	Base glides adjust 15mm to level unit on uneven carpet or hard flooring
Central dark walnut work block width	1200 mm
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate office lobby	Primary use for visitor check-in and reception staff workflow
Hotel front entry	Suitable for guest check-in and concierge workstations
Medical clinic reception	Supports patient check-in and records storage at entry points
Salon or service center front desk	Handles client booking, payment processing and retail storage
Recommended companion seating	Pair with ergonomic office task chairs for staff, guest sofas in waiting area
Placement requirement	Position against entry wall with clear 1200mm circulation path in front

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2016	Office work tables safety and strength requirements
EN 15372:2016	Furniture strength, durability and safety for non-domestic storage
EN 14073-2:2004	Office storage furniture safety requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety and durability
ANSI/BIFMA X5.9-2019	Storage units standard for office furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 4897.3-2003	Particleboard specifications for furniture use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
3. GB/T 4897.3-2003: Particleboard specifications for furniture use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · REC-L2400-WW-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · REC-L2400-WW-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · REC-L2400-WW-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

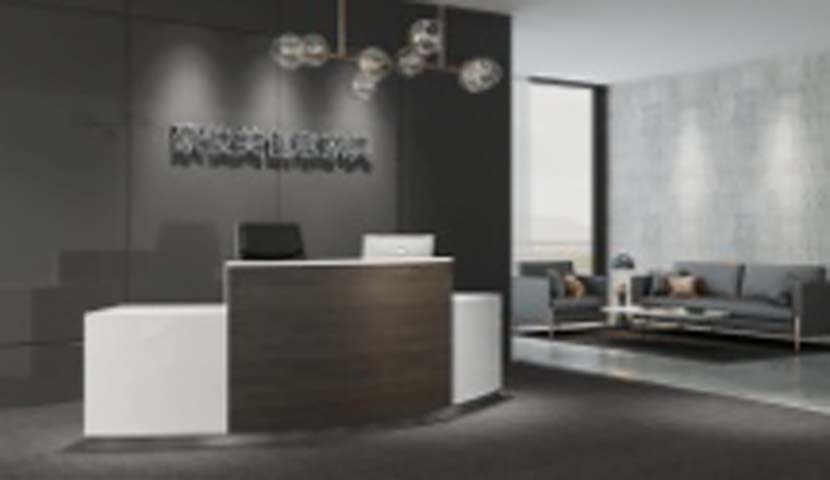

The Modern Two-Tone L-Shaped Office Reception Desk, model REC-L2400-WW-01, features a clean, contemporary block-style silhouette defined by its signature L-shaped layout and elevated front facade. The design balances a dark walnut wood grain matte laminate central front panel with crisp white matte thermofused laminate side pedestals, paired with a scratch-resistant matte laminate work surface for a polished, professional visual presence suitable for high-visibility entry spaces. The structure is built around a 1.2mm thick powder-coated steel internal support frame, with core panels constructed from E1-grade MDF engineered wood. Work surfaces are 25mm thick, while front panels measure 18mm thick, all finished with 2mm thick PVC edge trim to protect against daily wear. Hardware includes cold-rolled steel ball-bearing drawer slides, soft-close steel concealed cabinet hinges, and nylon base adjustable steel glides to compensate for uneven flooring; wall anchor hardware is included for secure floor-mounted installation. Functional design elements support seamless front-of-house operations: the elevated front facade conceals a central staff work zone sized to accommodate two users, with integrated cable management grommets and an under-desk cable tray to organize power and data cords. Dual 600mm wide side pedestals on either side of the work zone offer lockable drawers and enclosed cabinet storage, with soft-close drawer operation to eliminate slamming. The flat central front facade includes a dedicated area for custom corporate logo mounting, and the desk offers reversible orientation to fit left or right corner placements. The work surface supports a static load of 91kg, with drawer slides rated for 25kg dynamic load and 50000 open/close cycles, and hinges rated for 80000 cycles; the surface resists abrasion across 2000 cycles of use. This reception desk suits a range of commercial entry spaces, including corporate office lobbies for visitor check-in, hotel front entries for guest services and concierge work, medical clinic reception areas for patient intake and records storage, and salon or service center fronts for booking, payment processing, and retail supply storage. It pairs ideally with ergonomic task chairs for staff and guest seating in adjacent waiting areas, and requires placement against an entry wall with a clear circulation path in front. Procurement teams should note the desk ships as one set across multiple cartons with a total packaged gross weight of 180kg and 1 cubic meter packaging volume, requiring 40 minutes of on-site assembly per unit.

Modern Two-Tone L-Shaped Office Reception Desk Specifications
