PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 810 × 1100 mm
Visitor-facing top height	1100 mm
Staff work surface height	760 mm
Front panel total height	1040 mm
Worktop thickness	50 mm
Stainless steel trim thickness	1.5 mm
Vertical support post diameter	50 mm
Base kickplate height	60 mm
Per-staff work zone width	910 mm
Staff knee clearance height	700 mm
Horizontal accent strip spacing	320 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Raised worktop distributed static load	100 kg
Staff work surface distributed static load	80 kg
Stainless steel trim corrosion resistance	5 years
Laminate surface abrasion resistance	300 cycles
Recommended maximum seating capacity	3 staff
Product net weight	250 kg
Structural warranty period	5 years
Available finish variants	5 options
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Raised visitor worktop	High-gloss white laminate over multi-layer plywood substrate
Front facade panels	Matte dark taupe laminate over MDF core substrate
Vertical support posts	Polished 304 stainless steel tubular sections
Horizontal accent strips	Polished 304 stainless steel flat trim (3 continuous strips)
Base kickplate	Curved polished 304 stainless steel sheet
Edge banding	2mm thick matching PVC edge band on all laminate panel edges
Internal support frame	1.2mm thick powder-coated steel tubular framing
Panel substrate thickness	18 mm
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed curved modular assembly	Permanent non-adjustable arc layout for continuous front-of-house greeting
Recessed staff work zone	Open rear workspace positioned at seated office height for task performance
Integrated cable access provision	Pre-cut 80mm diameter grommet positions in staff work surface for device wiring
Optional under-counter storage	Lockable drawer and cabinet modules compatible with base structure
Raised visitor counter barrier	Elevated front surface separates visitor and staff zones for transaction security
Floor level stability adjusters	10mm adjustment range threaded feet under base for uneven floor leveling
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate office lobby	Multi-person reception station for greeting visitors and handling check-in
Hotel front desk area	Curved transaction counter for guest registration and concierge services
Medical clinic waiting area	Check-in counter separating staff from patient traffic for privacy
Beauty salon/retail checkout	Service and payment counter with elevated transaction surface
Co-working space entrance	Member check-in and visitor reception station for shared office environments
Public building service hall	Information and service counter for public sector visitor interaction

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to staff work surface
EN 15372:2016	Office furniture strength, durability and safety for non-domestic storage
EN 13722:2004	Furniture test methods for surface finish resistance to abrasion
EN 10088-2:2014	Stainless steel sheet technical delivery conditions for trim components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for strength, durability and structural performance
ANSI/BIFMA X7.1-2022	Standard for formaldehyde and VOC emissions from office furniture systems
ANSI/BIFMA M7.1-2022	Standard test method for determining VOC emissions from office furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to laminate panel components
GB/T 4897.3-2015	Particleboard for furniture use, applicable to MDF/plywood core substrates
GB 18584-2001	Indoor decoration material limit of harmful substances for wooden furniture
GB/T 1732-2020	Paint film impact resistance test, applicable to finished surface durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate panel components;
2. GB/T 4897.3-2015: Particleboard for furniture use, applicable to MDF/plywood core substrates;
3. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture;
4. GB/T 1732-2020: Paint film impact resistance test, applicable to finished surface durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RCV-3000W-SS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RCV-3000W-SS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RCV-3000W-SSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

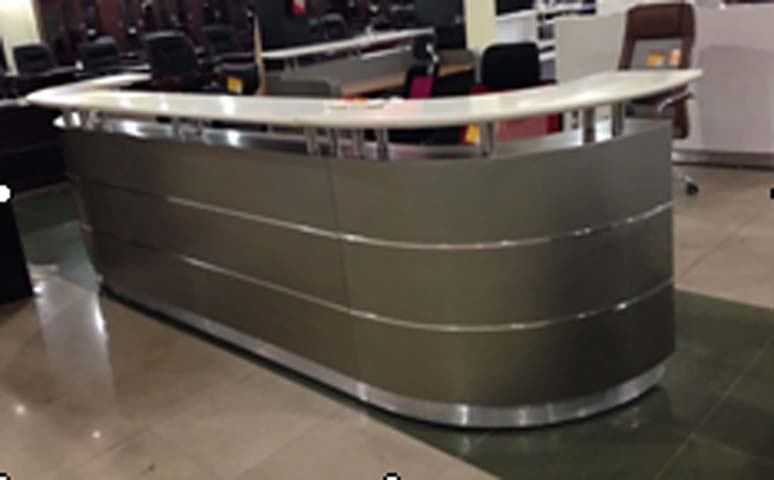

The Curved Multi-Person Commercial Office Reception Desk, model RCV-3000W-SS, delivers a sleek, modern front-of-house solution with a continuous fixed curved layout that creates an inviting, streamlined greeting profile. Its visual design balances contrasting finishes: a high-gloss white raised visitor worktop sits above matte dark taupe front facade panels, accented by continuous polished 304 stainless steel horizontal trim strips, curved stainless steel base kickplate, and matching tubular vertical support posts that lend a refined metallic accent to the contemporary form. The two-tier height configuration separates the elevated visitor-facing surface from the lower recessed staff work zone positioned for comfortable seated task work, with clean, unbroken lines suited to high-visibility public spaces. Construction prioritizes durable, commercial-grade materials: the raised visitor worktop uses high-gloss laminate over a multi-layer plywood substrate, while front panels feature matte laminate over an MDF core, with all laminate panel edges finished with 2mm matching PVC edge banding. An internal powder-coated steel tubular frame provides structural rigidity, supported by polished stainless steel posts and base elements. Stainless steel components carry corrosion resistance, while laminate surfaces offer abrasion resistance for regular high-traffic use, with a 5-year structural warranty backing fixed, permanent assembly. Functional features support efficient front-of-house operations: the raised visitor counter creates a clear transaction barrier between staff and guests, while the rear recessed work zone accommodates up to 3 staff members. Pre-cut cable grommets on the staff work surface connect to integrated cable management that holds power and data cables, keeping wiring organized. Threaded adjustable feet under the base allow leveling on uneven floors, and compatible lockable under-counter storage modules are available as optional add-ons to secure supplies and personal items. This reception desk suits a range of high-traffic commercial and public spaces, including corporate office lobbies for visitor check-in, hotel front desk areas for guest registration and concierge support, medical clinic waiting areas to separate staff from patient traffic for improved privacy, beauty salon and retail checkout points for service and payment processing, co-working space entrances for member and visitor check-in, and public building service halls for public sector information and service interactions. Procurement teams should note the unit ships across multiple cartons, with a reference assembly time per set, and plan for delivery and installation coordination to accommodate the unit’s net weight. Teams evaluating storage needs can opt for compatible lockable drawer and cabinet modules to match operational requirements, and confirm site floor load capacity and layout dimensions align with the desk’s fixed curved footprint prior to purchase.

Curved Multi-Person Commercial Office Reception Desk Specifications
