PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 600 × 1100 mm
work surface height	750 mm
transaction counter lip height	350 mm above work surface
knee recess width	800 mm
knee recess depth	450 mm
knee recess minimum height	650 mm
front base kickplate height	100 mm
horizontal gray accent strip width	1200 mm
panel thickness	18 mm
edge band thickness	2 mm
cable grommet diameter	60 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

work surface static load capacity	100 kg
product net weight	52 kg
surface abrasion resistance	2000 cycles
recommended maximum user weight for seated use	110 kg
design service life	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

main structural panels	18 mm thick E1 grade engineered particle board
surface finish	Matte white melamine laminate with UV cured coating
accent strips	18 mm thick dark gray melamine wrapped panels
edge banding	2 mm thick PVC edge banding on all exposed panel edges
structural support braces	1.2 mm thick powder coated steel internal brackets
base leveling feet	10 mm diameter nylon adjustable glides
cable grommet	ABS plastic wire management port
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

raised transaction counter	Front lip creates separate visitor interaction surface at 1100 mm height
seated work zone	Central 750 mm high work surface supports monitor and attendant tasks
cable management	60 mm diameter grommet routes monitor and device cables under work surface
leveling adjustment	Nylon glides adjust up to 10 mm to compensate for uneven lobby flooring
logo customization zone	Full-width upper front panel supports custom branding decals
solid front privacy panel	Closed visitor-facing facade blocks view of attendant leg and under-desk space
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

small office lobby	Compact footprint fits entry areas of small businesses and branch offices
salon and retail reception	Suitable for beauty salons, boutique shops and small clinic check-in
single attendant use	Dimensions sized for one seated receptionist to manage greeting and admin
modular office layout	Straight rectangular form can be placed against wall partitions or combined with modular units
modern minimalist interiors	White and gray color scheme matches contemporary neutral office decor

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and strength requirements applicable to reception work surfaces
EN 14073-2:2004	Storage furniture safety requirements for any integrated desk storage
EN 13722:2004	Furniture surface resistance to cold liquids, applicable to laminate desk tops

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for static load and durability
ANSI/BIFMA e3-2019	Furniture sustainability standard for material emissions and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel reception desk construction
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade required for indoor use
GB/T 4897.3-2015	Requirements for particle board used in furniture structural applications

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel reception desk construction;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade required for indoor use;
3. GB/T 4897.3-2015: Requirements for particle board used in furniture structural applications;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RCP-12060-WHTGRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RCP-12060-WHTGRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RCP-12060-WHTGRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

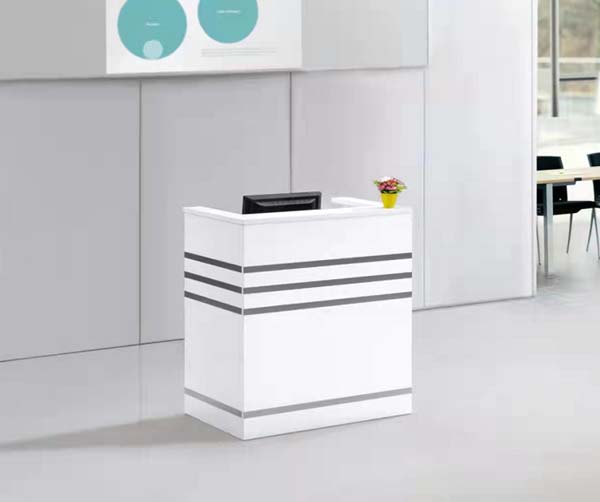

The Compact Modern Small Lobby Reception Desk with Transaction Counter, model RCP-12060-WHTGRY, features a streamlined straight-line rectangular form with a crisp matte white and dark gray color palette suited to contemporary minimalist interiors. A full-width 1200 mm dark gray horizontal accent strip runs across the upper front facade, paired with a 100 mm front base kickplate for a polished, uncluttered visual profile. The raised front transaction lip sits 350 mm above the 750 mm high main work surface, creating a clear separation between visitor interaction space and the attendant’s seated work zone, while a closed solid front privacy panel shields under-desk areas and attendant leg space from visitor view. An open knee recess positioned beneath the work surface offers ample room for a single seated receptionist, and the full-width upper front panel provides a dedicated zone for custom branding decals.
Constructed for fixed static use, the desk’s load-bearing top uses a composite build-up with a 25 mm primary panel thickness, up to 40 mm in high-load areas, fabricated from 18 mm E1 grade engineered particle board finished with matte white melamine and a UV-cured coating. Accent strips use matching 18 mm dark gray melamine-wrapped panels, and all exposed edges are sealed with 2 mm thick PVC edge banding to resist impact and wear. Internal 1.2 mm thick powder-coated steel brackets provide structural reinforcement, while 10 mm diameter nylon adjustable glides at the base compensate for uneven flooring with up to 10 mm of adjustment. A 60 mm ABS plastic cable grommet routes up to 10 power or data cables through the work surface, with an under-surface tray supporting up to 10 kg of cable management hardware. The work surface supports 100 kg of static load, with a 150 kg uniform distributed load capacity for the top, and the seated zone is rated for users up to 110 kg. The surface resists abrasion across 2000 use cycles, and drawer slides (where fitted) support 45 kg per pair across 50000 open/close cycles, with a rated design service life of 5 years.
This desk is optimized for spaces with limited entry area, including small office lobbies, branch office entryways, beauty salons, boutique retail locations, and small clinic check-in zones. Its straight form works for placement against wall partitions or integration into modular office layouts, and it is sized exclusively for single attendant operation. The unit ships as one set across two cartons, with 40 minutes of required assembly time per unit; procurement teams should account for total packaged volume of 1 cubic meter per set when planning delivery and on-site storage, and coordinate branding decal application separately as the unit does not include pre-applied logos.

Compact Modern Small Lobby Reception Desk with Transaction Counter Specifications
