Automatic mm / inch conversion · Core engineering specifications

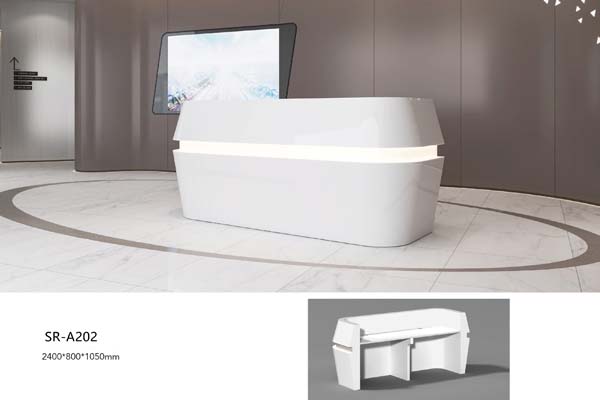

| Overall dimensions | 2400 x 800 x 1050 mm | |
|---|---|---|
| Countertop public-facing height | 1050 mm | |
| Staff knee clearance height | 700 mm | |
| Staff knee clearance depth | 450 mm | |
| Countertop panel thickness | 25 mm | |
| Body side panel thickness | 18 mm | |
| Edge banding thickness | 2 mm | |
| Integrated LED strip gap height | 50 mm | |
| Integrated display diagonal size | 55 inch | |
| Front arc radius | 1200 mm | |
| Floor clearance under base | 0 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Countertop static load capacity | 200 kg | |
|---|---|---|
| Drawer slide load rating (if fitted) | 35 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| LED strip service life | 50000 hours | |
| Surface abrasion resistance | 2000 cycles | |
| Net product weight | 220 kg | |
| Recommended concurrent users | 2 | |
| Structural warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Body substrate | 18mm high-density MDF panel | |
|---|---|---|
| Countertop substrate | 25mm high-density particleboard core | |
| Exterior finish | Multi-layer high-gloss white bake paint | |
| Edge treatment | 2mm thick PVC edge banding | |
| LED light assembly | 5000K cool white SMD LED strip | |
| Display frame | Black powder-coated aluminum bezel | |
| Internal support frame | 1.2mm thick steel square tubing | |
| Cable management components | PVC cable raceways | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Ambient LED lighting | Concealed horizontal light strip provides even soft illumination along body midline | |
|---|---|---|
| Integrated digital display | 15-degree tilted screen displays company branding, wayfinding, or announcements | |
| Staff seated work zone | Recessed lower knee space allows comfortable seated operation for attendants | |
| Concealed cable management | Internal raceways route power, data, and AV cables without exposed wiring | |
| Rounded safety edges | All curved front corners have smooth radiused edges to reduce impact injury | |
| Freestanding installation | Single unit requires no wall mounting for placement on finished lobby floors | |
| Customizable finish options | Bake paint color and material finish can be adjusted per project requirements | |
| Optional storage integration | Internal drawers or keyboard trays can be added to the staff work zone | |
| Display tilt angle | 15 degrees | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Corporate office lobbies | Provides professional greeting point for employees and visiting guests | |
|---|---|---|
| Hotel main reception areas | Serves as front desk for guest check-in and concierge services | |
| Medical clinic entrance areas | Facilitates patient check-in and wayfinding via integrated display | |
| Auto showroom entry points | Creates premium branded greeting area for vehicle shoppers | |
| Tech company welcome zones | Integrated display supports digital branding and visitor messaging | |
| Government service centers | Supports public-facing transaction and inquiry services |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to staff work surface | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic dimensions for seated work clearance | |
| EN 1022:2018 | Furniture seating stability test, applicable for staff chair use at counter | |
| EN 60598-1:2018 | Luminaire safety requirements, applicable to integrated LED light strip |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard for worksurface load | |
|---|---|---|
| ANSI/BIFMA X7.1-2021 | Furniture emissions standard for low-VOC panel and finish materials | |
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for optional integrated drawers |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel body construction | |
|---|---|---|
| GB/T 4893.1-2021 | Surface abrasion resistance test for furniture coatings, applicable to high-gloss finish | |
| GB 20286-2006 | Flame retardant requirements for public place furniture, applicable to lobby installation | |
| GB/T 15102-2017 | Specifications for PVC edge banding used on wood-based furniture panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel body construction; 2. GB/T 4893.1-2021: Surface abrasion resistance test for furniture coatings, applicable to high-gloss finish; 3. GB 20286-2006: Flame retardant requirements for public place furniture, applicable to lobby installation; 4. GB/T 15102-2017: Specifications for PVC edge banding used on wood-based furniture panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
