PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 800 × 1100 mm
Staff-side work surface height	750 mm
Customer-facing front counter height	1100 mm
L-return segment length	800 mm
L-return segment depth	600 mm
Worktop thickness	50 mm
Front facade panel thickness	25 mm
Edge band thickness	1 mm
Internal steel support frame wall thickness	1.5 mm
Staff knee clearance height	700 mm
Staff knee clearance depth	450 mm
Cable grommet diameter	80 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static load capacity	150 kg
Internal storage shelf static load per shelf	25 kg
Drawer slide cycle rating (if fitted)	50000 cycles
Cabinet door hinge cycle rating (if fitted)	80000 cycles
High-gloss lacquer surface abrasion resistance	3000 cycles
Product net weight (engineering reference)	280 kg
Recommended maximum user count	2 staff
Commercial use warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	18mm MDF (medium-density fiberboard)
Front facade panels	18mm MDF with multi-coat baked high-gloss lacquer
Internal support frame	1.5mm thick rectangular steel tube with powder coating
Edge trim	1mm thick matching color PVC edge banding
Internal storage components	15mm MDF with matte melamine finish
Hardware (hinges/slides)	Cold-rolled steel with zinc plating
Leveling feet	Nylon base with steel threaded stem
Cable management components	ABS plastic grommets and steel cable tray
Lacquer topcoat	UV-cured high-gloss clear coat
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped dual work zone layout	Provides main customer-facing counter and side return for secondary work or storage
Concealed internal storage compartments	Integrated cabinet space behind closed front panels for office supplies and equipment
Integrated cable management system	Cable grommets and under-desk tray route power/data cords to eliminate clutter
Adjustable floor leveling feet	Threaded feet adjust 20mm to compensate for uneven lobby flooring
Lockable storage option	Optional keyed locks for drawers/cabinets to secure valuables and documents
Modular sectional assembly	Split into 2 main sections for easy transport through standard doorways
Wall anchoring provision	Pre-drilled mounting points to secure desk to wall for anti-tip stability
Wipe-clean high-gloss surface	Non-porous lacquer finish resists stains and can be cleaned with damp cloth
Custom logo/LED lighting compatibility	Flat front panel supports backlit signage or LED strip installation
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate office lobby	Provides branded geometric focal point for visitor check-in and reception staff work
Retail boutique or showroom entrance	Sculptural two-tone design supports transaction processing and brand display
Hotel or service center front counter	Dual-height design separates customer interaction from staff operational space
Beauty salon or clinic reception	Smooth easy-clean surface meets hygiene requirements for customer-facing areas
Exhibition booth or event registration desk	Modular assembly enables fast setup and reconfiguration for temporary events
Creative studio or co-working space entrance	Contemporary geometric design aligns with modern creative workplace aesthetics

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office furniture work tables and desks, applies to work surface height, strength and stability requirements
EN 13722:2004	Office furniture storage units, applies to strength and durability of integrated cabinet components
EN 13986:2004	Wood-based panels for construction and furniture, applies to MDF panel performance classification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to work surface load, stability and durability testing for commercial use
ANSI/BIFMA X5.9-2019	Storage units standard, applies to integrated drawer and shelf performance requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to finished panel and lacquered reception desk construction
GB 18584-2001	Indoor decoration material limit of harmful substances in wood furniture, applies to formaldehyde emission limits for MDF substrates
GB/T 4897.3-2003	Particleboard and fiberboard for furniture use, applicable to MDF substrate structural and performance requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to finished panel and lacquered reception desk construction;
2. GB 18584-2001: Indoor decoration material limit of harmful substances in wood furniture, applies to formaldehyde emission limits for MDF substrates;
3. GB/T 4897.3-2003: Particleboard and fiberboard for furniture use, applicable to MDF substrate structural and performance requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · RCP-L2400-RWHG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · RCP-L2400-RWHG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · RCP-L2400-RWHGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

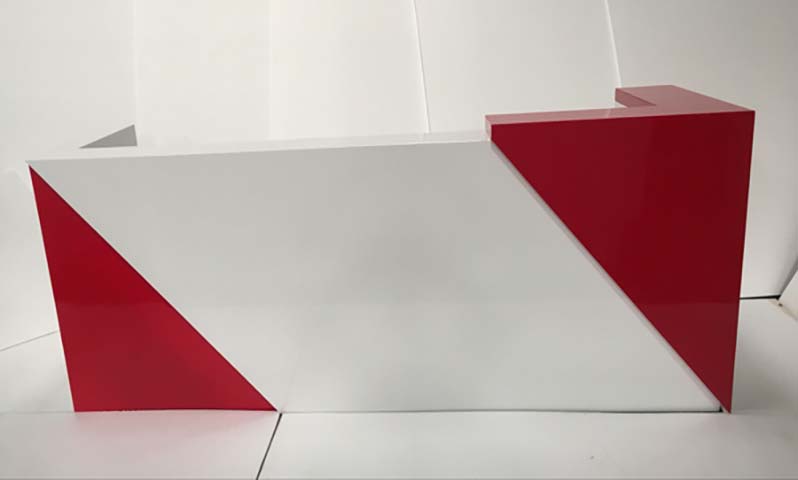

This asymmetric geometric red and white high-gloss L-shaped commercial reception desk, model RCP-L2400-RWHG, delivers a striking modern focal point for customer-facing spaces, with a bold color-blocked design that balances visual impact and functional utility. Its closed, sculptural front facade presents a seamless high-gloss red and white finish, arranged in an asymmetric geometric form that creates immediate visual interest without compromising the clean, polished lines suited to professional environments. The L-shaped layout integrates a primary customer-facing counter and a shorter side return, creating two distinct work zones to support both visitor interaction and back-of-house staff tasks across a total footprint of 2400 x 800 x 1100 mm, with a 750 mm staff-side work surface height and a full 1100 mm customer-facing counter height that clearly separates public and operational spaces. The desk is constructed with an engineered wood core built around a 1.5mm thick powder-coated rectangular steel internal support frame, ensuring structural stability for daily commercial use. Worktops use 18mm MDF substrate with a 50mm total thickness, while front facade panels are formed from 18mm MDF finished with multi-coat baked high-gloss lacquer and a UV-cured clear topcoat, trimmed with 1mm color-matched PVC edge banding for a seamless look. Internal storage components use 15mm MDF with a matte melamine finish, supported by zinc-plated cold-rolled steel hardware, with nylon leveling feet that adjust 20mm to compensate for uneven flooring, and ABS cable grommets paired with an under-desk steel cable tray to keep power and data cords organized and out of sight. Practical features include concealed internal storage behind the closed front facade for office supplies and equipment, with optional keyed locks available to secure sensitive documents or valuables. The modular two-section design simplifies transport through standard doorways, with pre-drilled wall anchoring points to prevent tipping, and a rated worktop static load capacity of 150kg, plus 25kg per internal storage shelf. The smooth, abrasion-resistant high-gloss surface supports easy cleaning for high-traffic use. This desk is well suited for corporate office lobbies, retail boutique and showroom entrances, hotel and service center front counters, beauty salon and clinic reception areas, exhibition booth registration points, and creative studio or co-working space entrances, aligning with contemporary aesthetic preferences across commercial settings. For procurement, note the product ships across multiple cartons, with a reference assembly time of 40 minutes per set and a net product weight of 280kg, designed to support up to 2 reception staff at a time. No brand marking is applied to the finished unit, allowing for custom branding integration to match organizational visual identities.

Asymmetric Geometric Red White High-Gloss L-Shaped Commercial Reception Desk Specifications
