PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 850 × 1200 mm
Seat width	520 mm
Seat depth	540 mm
Seat height (adjustable range max)	570 mm
Backrest height	750 mm
Headrest travel	60 mm
Retractable footrest extension	420 mm
Five-star base diameter	700 mm
Armrest height from seat	220 mm
Caster diameter	50 mm
Seat cushion thickness	140 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum user weight	227 kg
Gas lift rated static load	125 kg
Five-star base static load capacity	1136 kg
Caster load per wheel	150 kg
Caster rolling durability	100000 cycles
Upholstery abrasion resistance	200000 double rubs
Seat foam density	45 kg/m³
Back foam density	35 kg/m³
Foam rebound rate	60%
Warranty period	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	1.2mm thick light grey PU leather
Side accent panel	Brown woven textured fabric trim
Cushion fill	Layered high-resilience cold-cure foam with spring support
Internal frame	2.0mm thick welded steel tube frame
Armrest structure	Chrome-plated steel support with padded PU top
Five-star base	2.5mm thick polished chrome-plated steel
Gas lift	Class 4 50mm diameter steel gas lift
Caster material	Dual-wheel PU tread with PA housing
Control hardware	Chrome-finished steel recline lever and electric switch panel
Stitching	8 stitches per 30mm seam pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Electric recline function	135° lockable recline from 90° upright position
Seat height adjustment	120mm vertical travel via Class 4 gas lift
Retractable leg rest	420mm slide-out extension from seat front
360° swivel rotation	Full rotation on central swivel mechanism
Synchronized tilt mechanism	3mm steel plate chassis with tension adjustment
Linked armrest movement	Armrests tilt in sync with backrest recline
Integrated headrest support	Fixed padded headrest aligned for neck support
Smooth rolling mobility	Dual-wheel casters suitable for hard and carpeted floors
Reclined seat-back total depth	1270 mm
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Suitable for manager or C-suite workspaces with premium aesthetic requirements
Home office study	Fits luxury home office setups for long-duration seated work
Conference room leadership seating	Appropriate for formal boardroom and high-level meeting spaces
Reclining rest during work breaks	Supports short naps with extended footrest and reclined position
Hard and soft floor surfaces	PU casters suitable for wood, tile, and low-pile carpet floors
Long-duration daily use	Thick cushioning designed for 8+ hours of daily seated work
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applies to office chair dimensional, safety and strength requirements
EN 1022:2019	Applies to chair stability testing for domestic and office seating
EN 12520:2015	Applies to furniture seating mechanical safety performance requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to office chair general purpose durability and load testing
ANSI/BIFMA X5.11-2015	Applies to heavy-duty big and tall office chair load requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applies to office chair dimensional stability and strength requirements
GB/T 10357.3-2013	Applies to chair back, seat, and armrest static load test methods
GB 18584-2001	Applies to formaldehyde emission limits for wooden and upholstered furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applies to office chair dimensional stability and strength requirements;
2. GB/T 10357.3-2013: Applies to chair back, seat, and armrest static load test methods;
3. GB 18584-2001: Applies to formaldehyde emission limits for wooden and upholstered furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXEC-REC-ELEC-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXEC-REC-ELEC-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXEC-REC-ELEC-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

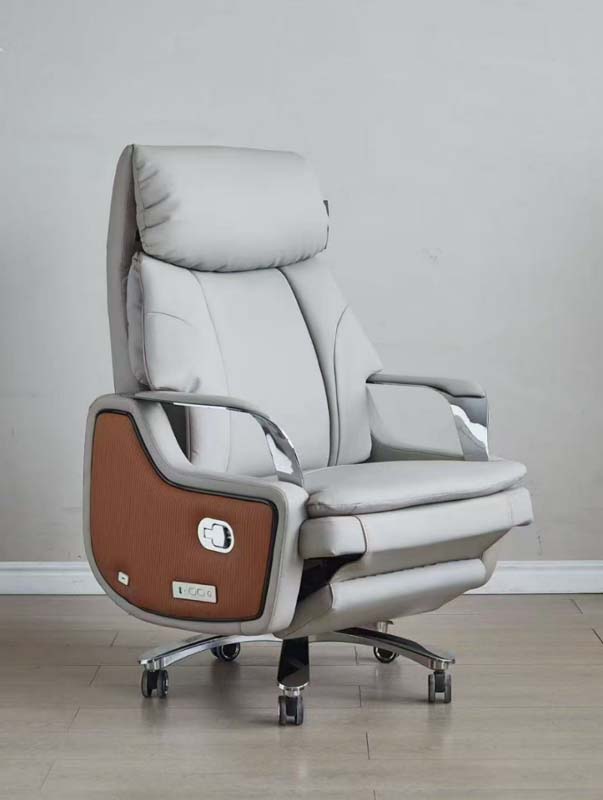

The Electric Reclining Executive Office Chair with Footrest, model EXEC-REC-ELEC-001, offers a polished, premium seating solution for professional and high-end home spaces. Its refined visual profile pairs smooth light grey faux leather upholstery with a distinct brown woven side accent panel, creating a balanced, sophisticated look that aligns with elevated workspace aesthetics. The design is anchored by a polished chrome-plated steel five-star base, with chrome-finished control hardware that complements the sleek, professional silhouette, while padded armrests and a fixed integrated headrest create a cohesive, streamlined layout free of bulky, protruding components. Built for consistent long-term use, the chair features a 2.0mm thick welded steel tube internal frame, layered high-resilience cold-cure foam with spring support for cushioning, and 1.2mm thick light grey PU leather upholstery tested to withstand 200000 double rubs of abrasion. The 2.5mm thick chrome-plated steel five-star base supports heavy static loads, paired with dual-wheel PU casters with PA housing rated for 100000 rolling cycles, suitable for wood, tile, and low-pile carpet floors. A Class 4 50mm diameter steel gas lift, 3mm steel plate synchronized tilt chassis, and chrome-plated steel armrest supports with padded PU tops complete the durable construction. Core functional features support both focused work and comfortable rest: the electric recline mechanism locks at any point between a 90° upright position and 135° recline, with armrests that tilt in sync with the backrest to maintain consistent arm support. The seat offers 120mm of vertical height adjustment reaching a maximum seat height of 570mm, full 360° swivel rotation, and a 420mm slide-out retractable footrest that extends from the seat front to support relaxed positioning during work breaks. The fixed padded headrest provides aligned neck support, and the 45 kg/m³ density seat foam is engineered to support 8+ hours of daily seated use, with a recommended maximum user weight of 227 kg. This chair is well suited for executive private offices for manager and C-suite workspaces, luxury home office studies, and formal boardroom or high-level conference room leadership seating, and supports short naps during work breaks with its extended recline and footrest. For procurement planning, each unit ships in 2 cartons with a packaged gross weight of 23 kg, requires 40 minutes of assembly per set, and allows 135 sets to be loaded in a 20GP container at 85% space utilization. The product is offered as an unbranded option, allowing flexible integration with existing workspace furnishing schemes without fixed brand marking requirements.

Electric Reclining Executive Office Chair with Footrest Specifications
