Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

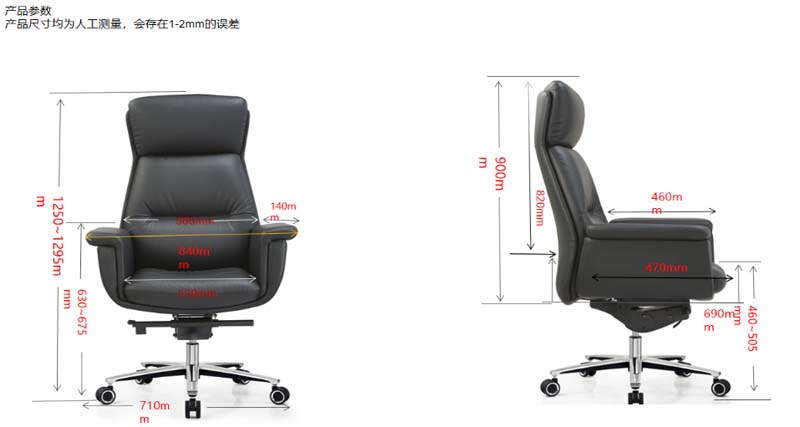

| Overall dimensions (W × D × H) | 710 × 690 × 1295 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 160 kg | |
|---|---|---|
| Chair net weight | 24 kg | |
| Static seat proof-load reference | 640 kg 1-minute test reference | |
| Backrest cyclic durability reference | 120,000 recline cycles | |
| Gas-lift vertical stroke | 45 mm | |
| Caster rolling durability reference | 100,000 cycles | |
| Seat-foam compression set reference | 35 percent after 22 hours at 70 degrees C | |
| Fabric or leather abrasion reference | 50,000 Martindale cycles | |
| Color options for procurement | 1 standard black color | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery | Black smooth leather or leather-look surface over padded seat, back and arm pads | |
|---|---|---|
| Seat cushion | High-resilience polyurethane foam with a 470 mm deep padded cushion | |
| Back cushion | Segmented high-back foam pad with integrated head and lumbar bolsters | |
| Armrests | Upholstered fixed pads over a rigid structural support | |
| Gas-lift and center column | Chrome-plated steel telescoping gas lift with black lower shroud | |
| Five-star base | Polished aluminum-alloy or chrome-plated steel five-star base |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic gas lift raises seat height from 460 mm to 505 mm through a 45 mm stroke via side lever | |
|---|---|---|
| Swivel function | 360-degree swivel around the central gas column supported by the five-star caster base | |
| Recline and lock | Synchronized tilt mechanism with side lever and 115degree back recline reference plus three lock positions | |
| Mobility | Five dual-wheel casters provide rolling movement and load distribution on office floors |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 800 x 700 x 680 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office and management workspace | High-back support, padded fixed arms and chrome base suit daily use at 750 mm executive desks | |
|---|---|---|
| Meeting or private consultation room | Black upholstered swivel chair provides formal visitor or executive seating with rolling mobility |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 office chair dimensions | Use to verify seat, back, clearance and dimensional suitability for office work | |
|---|---|---|
| EN 1335-2:2018 office chair safety | Use for structural safety, stability and chair-component acceptance testing | |
| EN 1335-3:2009 office chair test methods | Use laboratory test methods for strength, durability and mechanism cycling |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 office chair general-purpose applicability | Use the general-purpose office-chair test protocol for back, seat, arm, base and caster durability |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357 furniture strength test applicability | Use static load, stability and durability test methods for seat, back, arms and base |
|---|
This product must meet the following technical requirements: 1. GB/T 10357 furniture strength test applicability: Use static load, stability and durability test methods for seat, back, arms and base; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
