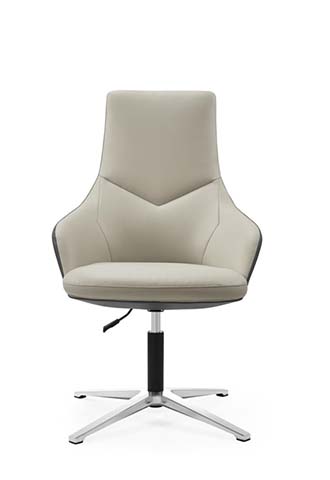

Product supplierSwivel Upholstered Executive Visitor Chair, Light beige smooth-faced upholstery with angular chevron stitching
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 650 × 1010 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 14 kg | |
|---|---|---|
| Recommended user weight | 120 kg | |
| Static seat load verification target | 600 kg | |
| Back static load verification target | 136 kg | |
| Upholstery abrasion acceptance target | 50,000 Martindale cycles | |
| Swivel rotation | 360 degrees | |
| Gas-lift height travel | 80 mm | |
| Seating capacity | 1 person | |
| Foam density target | 45 kg/m3 | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer seat and back upholstery | Light beige smooth-faced upholstery with angular chevron stitching | |
|---|---|---|
| Seat cushion | 80 mm polyurethane foam pad over a load-bearing seat plate | |
| Back padding | Molded polyurethane foam in an ergonomic wraparound shell | |
| Internal seat support | 12 mm plywood or steel composite seat carrier | |
| Four-star base | Polished die-cast aluminum or chrome-plated steel base | |
| Base arm section | 35 x 20 mm polished metal profile | |
| Center column | Black telescoping sleeve with chrome gas-lift tube | |
| Gas lift | 50 mm diameter class 3 steel gas lift | |
| Adjustment lever | Black polymer paddle lever mounted under the seat | |
| Floor contacts | Four non-marking polymer glide pads | |
| Edge trim | Dark perimeter piping or welt along the upholstered shell | |
| Seam construction | Stitched angular panel seams with 6 mm stitch pitch target |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Paddle lever controls the gas lift through an 80 mm travel between 440 and 520 mm seat height | |
|---|---|---|
| 360-degree swivel | Central column allows the seat shell to rotate fully while the four-star base remains stationary | |
| Integrated body support | Backrest and arms form one continuous wraparound shell for lateral elbow and back support | |
| Stationary floor placement | Four glide feet provide a non-rolling footprint for meeting and visitor areas | |
| Lumbar contour | Chevron-shaped back split provides a shaped lower-back zone without a separate adjustable lumbar part | |
| Posture type | Fixed upright executive posture with no visible recline handle or tilt tension knob | |
| Armless-gap entry | Open front between the integrated arm wings allows side access while retaining wraparound support | |
| Height mechanism retention | Gas lift locks at the selected height when the paddle lever is released | |
| Floor protection | Four polymer glides distribute load and reduce scratching on hard flooring | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 760 x 680 x 420 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office visitor seating | Stationary swivel design suits guests in front of executive desks while maintaining a formal appearance | |
|---|---|---|
| Meeting room | Single 680 mm-wide chair fits conference tables and supports short-to-medium seated sessions | |
| Reception and lounge area | Beige upholstery and polished base provide a refined guest seat in hotel or corporate lounges | |
| Manager workstation | Height-adjustable seat allows use at desks from 720 to 760 mm high | |
| Consultation room | Swivel access and wraparound arm support suit interviews, advisory meetings, and client discussions | |
| Hard-floor installation | Glide feet are appropriate for wood, tile, vinyl, and polished stone floors where casters are not required | |
| Color coordination | One visible light beige upholstery color with black and polished-metal contrast elements | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 | Strength, durability, and safety standard for non-domestic seating, suitable for visitor and office chair acceptance | |
|---|---|---|
| EN 1022 | Determination of stability for seating, applicable to the tall four-star base and elevated seating positions | |
| EN 1335-2 | Safety requirements for office work chairs, applicable where this model is used at office desks |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4 | Safety and performance reference for lounge and public-office seating with static, load, and stability tests | |
|---|---|---|
| ANSI/BIFMA X5.1 | General office-chair safety and performance tests may be specified for heavier commercial use |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 | Test method for furniture surface physical and chemical properties, applicable to upholstery and exposed finish acceptance | |
|---|---|---|
| GB/T 10357.3 | Test method for furniture strength and durability, applicable to seat, back, arm, and base verification | |
| GB 17927 | Safety requirements for upholstered furniture, applicable to structural and fire-safety procurement checks in China |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2: Test method for furniture surface physical and chemical properties, applicable to upholstery and exposed finish acceptance; 2. GB/T 10357.3: Test method for furniture strength and durability, applicable to seat, back, arm, and base verification; 3. GB 17927: Safety requirements for upholstered furniture, applicable to structural and fire-safety procurement checks in China; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
