Automatic mm / inch conversion · Core engineering specifications

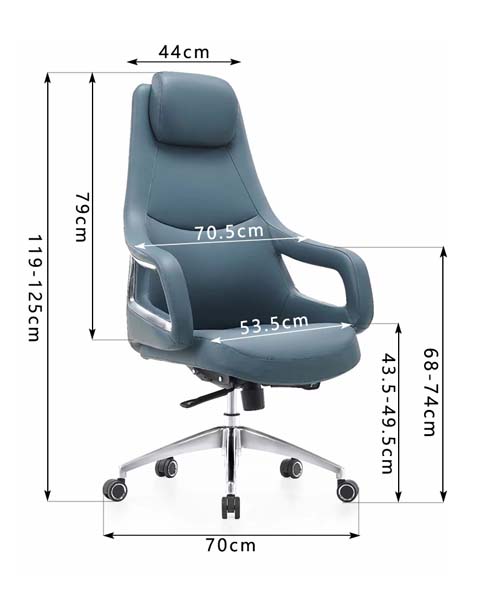

| Overall dimensions | 705 x 700 x 1250 mm | |
|---|---|---|
| Seat width | 535 mm | |
| Seat height from floor | 495 mm | |
| Armrest height from floor | 740 mm | |
| Backrest height above seat | 790 mm | |
| Integrated headrest width | 440 mm | |
| Five-star base diameter | 700 mm | |
| Seat depth | 500 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Net weight | 25 kg | |
|---|---|---|
| Maximum user weight capacity | 136 kg | |
| Five-star base static load rating | 1136 kg | |
| Recommended daily use duration | 8 hours | |
| Caster rolling durability | 100000 cycles | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back upholstery | 1.0mm thick slate blue PU faux leather | |
|---|---|---|
| Seat cushion padding | 50mm thick 45kg/m³ high-density polyurethane foam | |
| Backrest padding | 40mm thick 40kg/m³ high-resilience polyurethane foam | |
| Five-star base | 2.0mm thick polished chrome-plated steel | |
| Armrest construction | Padded PU cover with chrome accent trim, steel internal support | |
| Gas lift cylinder | Class 3 chrome-plated steel, 100mm stroke, 50mm diameter | |
| Casters | 50mm diameter PU tread with chrome housing, dual-wheel design | |
| Tilt mechanism plate | 3mm thick stamped steel with tension adjustment | |
| Seam stitch pitch | 3 stitches per centimeter | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
Adjustment / rotation / tilt / mobility / storage features
| Height adjustment | Pneumatic gas lift adjusts seat height 60mm between positions | |
|---|---|---|
| 360-degree swivel | Full rotation around central gas lift axis | |
| Tilt function | 12-degree backrest recline with adjustable tension control | |
| Mobility | Dual-wheel casters roll smoothly on hard floors and low-pile carpet | |
| Ergonomic support | Integrated fixed headrest and contoured lumbar support | |
| Arm support | Fixed wrap-around padded armrests with chrome trim | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Executive private office | High-back supportive design for manager and executive workstations | |
|---|---|---|
| Home office workspace | Polished aesthetic fits premium residential office setups | |
| Conference meeting rooms | Comfortable padded design for extended meeting seating | |
| Reception and visitor areas | Professional finish creates welcoming executive impression | |
| Standard desk compatibility | Adjustable height fits 760 mm standard office desk heights | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| Office chair stability and strength | EN 1335:2018 | |
|---|---|---|
| Office chair safety dimensions | EN 1335:2020 | |
| Caster performance | EN 12529:1998 |
US and Canada office-furniture standards
| General purpose office chair safety | ANSI/BIFMA X2017 | |
|---|---|---|
| Office chair caster durability | ANSI/BIFMA X5.1 Test 12 |
Standards applicable to China-market projects
| Seat strength and durability | GB/T 10357.3 | |
|---|---|---|
| Upholstered furniture safety | GB 20400 |
This product must meet the following technical requirements: 1. Seat strength and durability: GB/T 10357.3; 2. Upholstered furniture safety: GB 20400; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
