PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

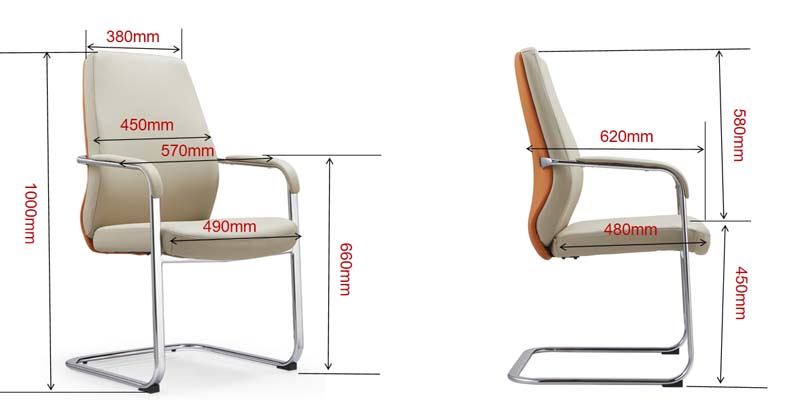

Overall dimensions (W × D × H)	570 × 620 × 1000 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	160 kg
Net weight	13 kg
Stacking capacity	1 chair
Seating capacity	1 person
Floor glide count	4 glides
Foam density seat	35 kg/m3
Foam density backrest	28 kg/m3
Foam rebound	40%
Fabric abrasion acceptance target	50000 cycles
Warranty target	36 months

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and front back upholstery	Beige faux leather over padded foam with stitched edge piping
Rear back panel	Orange upholstered decorative panel with vertical edge seam
Cushion core	Polyurethane foam pad in seat and back with rounded front edge
Armrest pads	Beige upholstered pads integrated with curved arm supports
Cantilever frame	Polished chrome-plated bent steel tube forming continuous sled runners
Floor contacts	Black polymer glides pressed onto the four runner ends

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed ergonomic posture	Rigid cantilever frame provides a 450 mm fixed seat height and 580 mm upright back rise
Integrated arm support	Fixed upholstered armrests connect into the chrome frame at a 660 mm top height
Cantilever flex	Twin continuous steel runners create controlled fore-aft flexibility without rotation
Floor protection	Four replaceable polymer glides reduce floor contact noise and prevent exposed metal scraping

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference and meeting rooms	Fixed 450 mm seat height and padded arms suit standard 760 mm conference tables.
Visitor and reception areas	Beige-and-orange upholstered appearance provides formal guest seating without casters or recline controls.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VC-CANT-570-1000-BE

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VC-CANT-570-1000-BE

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VC-CANT-570-1000-BEOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Padded Conference Visitor Chair with Chrome Cantilever Sled Base is a single-seat visitor chair designed for formal meeting and reception settings. Its model is VC-CANT-1000-BE and it is supplied unbranded. The chair presents a structured, upright silhouette with beige faux leather upholstery on the seat, front backrest, and integrated armrest pads, contrasted by an orange upholstered decorative rear panel with a vertical edge seam. Stitched edge piping gives the seat and front back a tailored appearance, while the polished chrome frame adds a clean commercial aesthetic. Its layout combines a padded seat, tall supportive backrest, fixed arms, and a continuous cantilever sled base. The overall dimensions are 570 x 620 x 1000 mm. The finished seat cushion is 90 mm thick, the backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. The clear width between the armrests is 540 mm. A fixed 450 mm seat height and 580 mm upright back rise support a consistent conference-seating posture. The fixed armrests connect into the chrome frame, with their top surface at 660 mm. Construction uses polyurethane foam and a chrome-plated bent steel tube frame. The seat cushion uses 35 kg/m3 foam, while the backrest uses 28 kg/m3 foam. The cushion cores are rounded at the front seat edge, and the upholstery is fitted over padded foam. Twin continuous steel runners form the cantilever base and provide controlled fore-and-aft flexibility without a rotating mechanism. Four black polymer glides are pressed onto the runner ends, helping reduce contact noise and preventing exposed metal from scraping the floor; the glides are replaceable. The chair has a recommended static load capacity of 160 kg and weighs 13 kg. This model is suited to conference rooms and meeting areas, particularly with standard 760 mm conference tables. It is also appropriate for visitor and reception spaces where a formal, non-reclining chair without casters is preferred. The fixed arms offer support during discussions or waiting periods, and the sled base gives a stable, orderly look suitable for rowed or grouped guest seating. The chair is intended for one person and has a stacking capacity of one chair. For procurement planning, each set is delivered in two cartons, with packaged gross weight of 23 kg and reference carton volume of 0.26 m3. Reference assembly time is 40 minutes per set. The indicative loading plan allows 135 sets in a 20GP container at 85 percent space utilization. Buyers should allow time for assembly, confirm floor compatibility with the polymer glides, and consider the beige-and-orange appearance alongside existing interiors.}

Padded Conference Visitor Chair with Chrome Cantilever Sled Base Specifications
