Product supplierGreen Upholstered Cantilever Visitor Chair with Chrome Sled Frame, Green padded upholstery over a layered cushion assembly
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

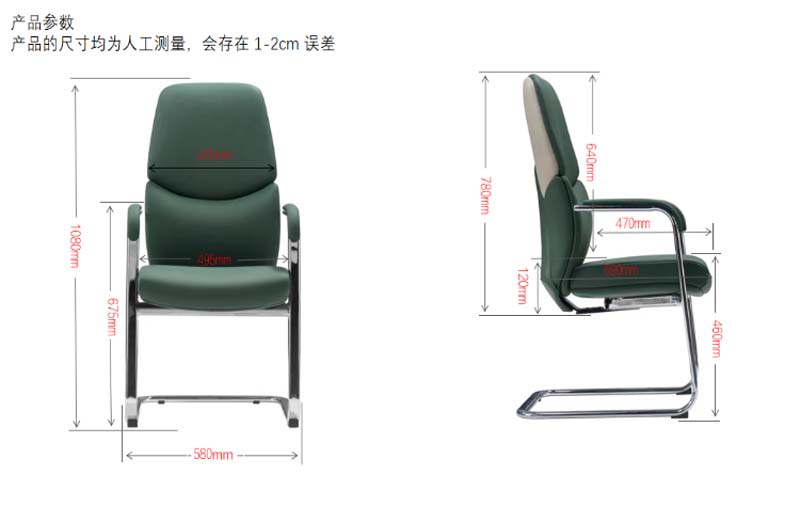

Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 580 × 470 × 1080 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 14.5 kg | |
|---|---|---|
| Rated static load | 160 kg | |
| Recommended user weight | 120 kg | |
| Seating capacity | 1 person | |
| Back support height | 640 mm | |
| Floor glide load area | 4 contact points | |
| Frame tube static deflection limit | L/100 at 160 kg | |
| Foam compression set acceptance | 8 percent after 22 hours at 70 degrees C | |
| Upholstery abrasion acceptance | 50,000 Martindale cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Green padded upholstery over a layered cushion assembly | |
|---|---|---|
| Back upholstery | Green upholstered two-zone back with beige rear panel visible in side view | |
| Cushion core | Molded polyurethane foam, 90 mm seat and 80 mm lumbar thickness | |
| Internal support board | 12 mm molded plywood or composite seat board | |
| Arm pads | Green upholstered pads mounted over curved steel arm supports | |
| Cantilever frame | 25 x 2.0 mm chrome-plated steel tube with continuous sled base |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed cantilever support | Continuous chrome sled frame flexes slightly under load without tilt, swivel, or height adjustment | |
|---|---|---|
| Fixed seated posture | 460 mm seat height and 470 mm seat depth provide upright reception or conference posture | |
| Integrated arm support | Curved arm supports connect the back/seat area to the sled legs and terminate in padded armrests | |
| Floor protection and movement | Four polymer glides protect flooring and permit limited repositioning by lifting or sliding |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 1 flat-packed or semi-knocked-down carton per chair | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Recommended Matching Desk Size | 2.4 m executive desk | |
|---|---|---|
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 applicability | Non-domestic seating strength, durability, and safety for contract visitor chairs | |
|---|---|---|
| EN 1022 applicability | Seating stability determination for forward and rearward tipping risk | |
| EN 14465 applicability | Upholstery fabric abrasion, pilling, and color-fastness assessment if fabric is specified |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 applicability | General-purpose office chair back, seat, arm, leg strength, and stability tests | |
|---|---|---|
| ANSI/BIFMA e3 applicability | Furniture sustainability, material, energy, and social-responsibility credits if supplier documentation is available |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 applicability | Furniture strength and durability test for seating: back and seat static loading | |
|---|---|---|
| GB/T 10357.6 applicability | Furniture test for seating arm downward static load | |
| GB/T 10357.7 applicability | Furniture seating stability test for a non-swivel four-contact chair |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 applicability: Furniture strength and durability test for seating: back and seat static loading; 2. GB/T 10357.6 applicability: Furniture test for seating arm downward static load; 3. GB/T 10357.7 applicability: Furniture seating stability test for a non-swivel four-contact chair; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
