Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

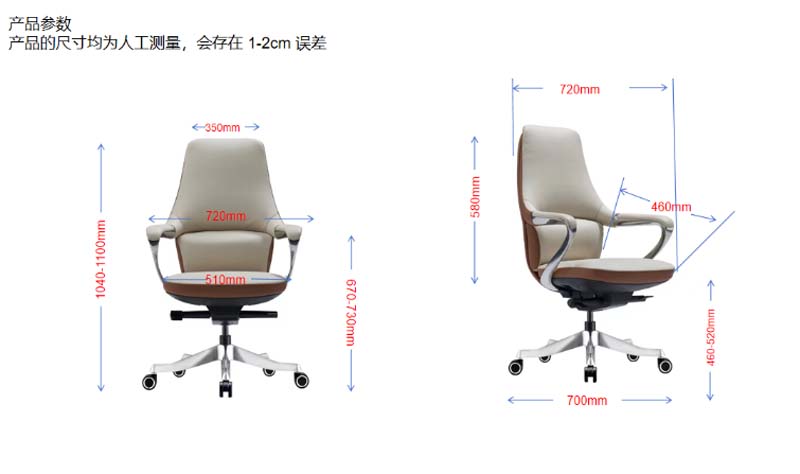

| Overall dimensions (W × D × H) | 720 × 700 × 1100 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 160 kg | |
|---|---|---|
| Chair net weight | 21 kg | |
| Seat foam density | 45 kg/m3 | |
| Back foam density | 35 kg/m3 | |
| Foam rebound rating | 40% | |
| Gas-lift class | Class 4 | |
| Gas-lift diameter | 50 mm | |
| Base static-load rating | 1136 kg | |
| Caster rolling durability | 100000 cycles | |
| Back tilt angle | 115 degrees |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery | Top-grain leather with beige seating faces and brown side/welt panels; exact hide grade requires supplier BOM confirmation. | |
|---|---|---|
| Seat cushion | Molded high-resilience polyurethane foam, 90 mm thick, wrapped to preserve a rounded leather front edge. | |
| Back cushion | Contoured dual-zone foam, 70 mm thick at lumbar region, attached to a shaped internal support board. | |
| Internal frame | 15 mm molded plywood or steel-reinforced composite seat/back support, inferred from the rigid contoured shell. | |
| Armrests | Padded leather arm pads mounted on polished die-cast aluminum curved supports. | |
| Base and gas lift | Polished aluminum alloy five-star base with chrome-plated steel telescoping gas cylinder. |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Pneumatic lever raises the seat from 460 mm to 520 mm, giving a 60 mm stroke for desk-height adaptation. | |
|---|---|---|
| 360-degree swivel | Central gas-lift swivel allows full rotation while the five-star base remains stationary. | |
| Mobility | Five twin-wheel casters on a 700 mm base provide rolling movement and stability on office floors. | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 850 x 680 x 380 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive offices | Suitable for managers and private offices where a padded high-back leather chair supports 8 hour desk work. | |
|---|---|---|
| Meeting and reception rooms | Two-tone styling and polished aluminum base fit formal conference rooms, executive reception areas, and VIP meeting spaces. |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
