Product supplierBlack Faux Leather Visitor Chair with Chrome Cantilever Frame, Black smooth faux leather with stitched panel seams
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

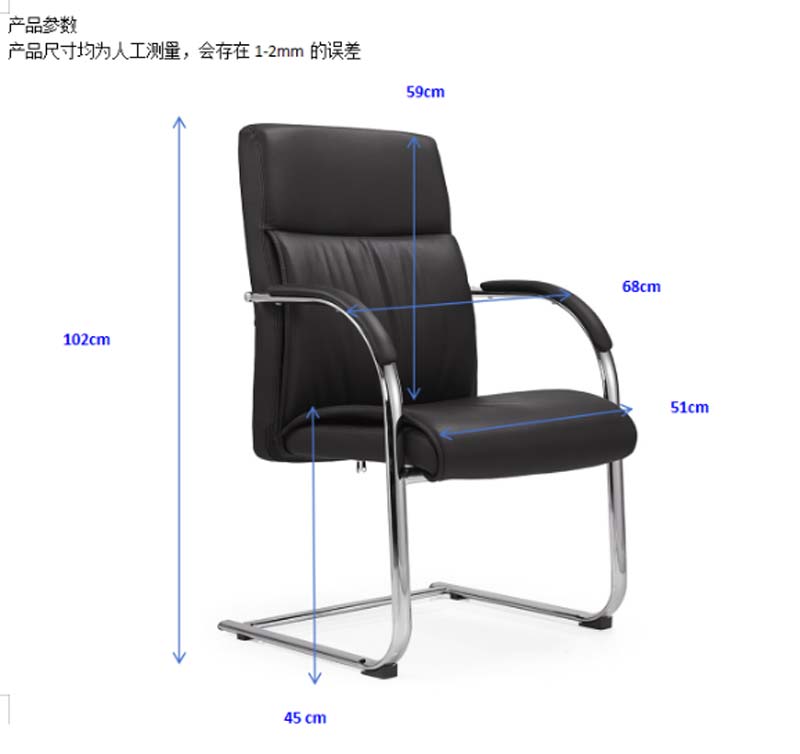

| Overall dimensions (W × D × H) | 680 × 510 × 1020 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static load capacity | 160 kg | |
|---|---|---|
| Net weight | 11 kg | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 28 kg/m3 | |
| Foam rebound | 40% | |
| Seating capacity | 1 person | |
| Chrome tube static proof-load reference | 320 kg | |
| Abrasion acceptance target | 50000 Martindale cycles | |
| Seam stitch pitch | 8 stitches per 50 mm | |
| Warranty reference | 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Black smooth faux leather with stitched panel seams | |
|---|---|---|
| Seat cushion | 80 mm molded polyurethane foam over a board or steel seat carrier | |
| Back padding | Segmented padded back with horizontal lumbar pleats and 90 mm top-roll cushioning | |
| Arm pads | Black padded armrest pads mounted on curved chrome supports | |
| Load frame | Chrome-plated 25 mm tubular steel cantilever sled frame | |
| Floor protection | Four black non-marking glide pads at the sled rail ends |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed rocking function | Fixed non-swivel seat with a slightly flexible cantilever frame that gives controlled seated give | |
|---|---|---|
| Arm support | Continuous curved arm supports with padded contact surfaces at 670 mm floor height | |
| Stacking and mobility | Non-stacking floor-standing chair with four glides and no casters | |
| Floor mounting | Freestanding placement using anti-slip glides; no screws or brackets are required |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight per carton | 13 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Meeting and conference rooms | Fixed padded seating for boardrooms, meeting rooms and project spaces where upright support and quiet placement are needed | |
|---|---|---|
| Visitor and reception areas | Black professional chair for reception lounges, interview rooms and guest seating opposite desks |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office chair safety applicability | EN 1335safety requirements and EN 1335test methods for fixed non-adjustable office seating | |
|---|---|---|
| Stability applicability | EN 1022 for seating stability under forward, rearward and lateral loading | |
| Upholstery flammability applicability | EN 1021cigarette ignition and EN 1021 match-flame ignition for upholstered seating |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Visitor chair performance basis | Recommended references: ANSI/BIFMA X5.1 | |
|---|---|---|
| Upholstery durability basis | ANSI/BIFMA e3 level or equivalent textile abrasion and colorfastness documentation |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Strength and durability applicability | GB/T 10357.2 for chair mechanical stability and GB/T 10357.3 for seat and back durability | |
|---|---|---|
| Formaldehyde control applicability | GB/T 39600 for formaldehyde emission if wood-based panels are used in the seat carrier | |
| Upholstered furniture fire basis | GB 17927 for upholstered furniture combustion behavior when fire compliance is required |
Standardized tender description text
This product must meet the following technical requirements: 1. Strength and durability applicability: GB/T 10357.2 for chair mechanical stability and GB/T 10357.3 for seat and back durability; 2. Formaldehyde control applicability: GB/T 39600 for formaldehyde emission if wood-based panels are used in the seat carrier; 3. Upholstered furniture fire basis: GB 17927 for upholstered furniture combustion behavior when fire compliance is required; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
