PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

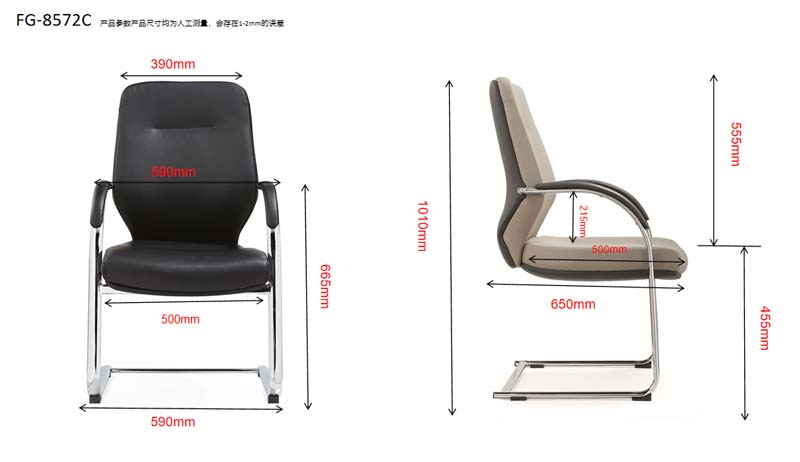

Overall dimensions (W × D × H)	590 × 650 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	12.5 kg per chair
Rated occupant load	120 kg static seating capacity
Frame static proof load target	600 kg front-edge vertical test target
Arm downward load target	68 kg per arm
Backrest pull-back target	91 kg
Seating capacity	1 person
Stacking capacity	0 chairs
Recommended daily use	8 hours intermittent visitor seating
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Leather-look coated fabric or split-leather substitute over shaped foam; exact material grade needs supplier BOM confirmation
Seat cushion structure	80 mm thick high-resilience foam seat pad with engineered hardness 45 kg/m3
Back cushion structure	60 mm molded back foam with lumbar contour and engineered density 38 kg/m3
Arm pads	Black padded arm pads wrapped in the same visible upholstery material
Cantilever frame	25.4 mm diameter chrome-plated welded steel tube with continuous sled runners
Floor glides	Four black non-marking polymer glide pads fastened at runner ends

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed cantilever support	Continuous chrome sled legs provide slight controlled flex without tilt, swivel, height adjustment, or casters
Fixed arm support	Curved padded arms remain at 215 mm above the seat and connect into the cantilever frame
Lumbar posture support	The contoured back provides a fixed lower-back curve and 555 mm of upper-back support
Floor protection	Four replaceable polymer glides distribute the runner load and allow limited repositioning on hard floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Export carton dimensions	720 x 640 x 330 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Reception and meeting areas	Fixed guest seating for executive reception rooms, meeting rooms, and training rooms where a formal upright posture is required
Open-plan visitor positions	Suitable for desk-side guest seating and conference tables without floor locking or casters

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Strength and durability	EN 16139: non-domestic seating strength and durability requirements for visitor chairs
Stability	EN 1022: seating stability test method for forward and rear overturning checks
Upholstered furniture flammability	BS EN 1021and BS EN 1021cigarette and match ignition tests

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Static and fatigue reference	ANSI/BIFMA X5.4 lounge and public seating static, back, arm, and leg load tests

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General safety standard	GB/T 10357.2: vertical static load testing for chairs and stools as a procurement verification reference
Backrest strength standard	GB/T 10357.3: backrest static and fatigue test method for seating

Standardized tender description text

This product must meet the following technical requirements:
1. General safety standard: GB/T 10357.2: vertical static load testing for chairs and stools as a procurement verification reference;
2. Backrest strength standard: GB/T 10357.3: backrest static and fatigue test method for seating;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FG-8572C

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FG-8572C

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FG-8572COpen Export Tool

Quick Actions

Post an RFQ

Product Description

The FG-8572C is an unbranded upholstered visitor chair built around a polished chrome-plated cantilever frame. Its visual character is clean and formal: a padded seat and contoured back are paired with continuous sled-style steel legs, curved fixed arms, and black arm pads that coordinate with the leather-look upholstery. The single-person design presents a structured guest-seating profile suited to professional interiors where a neat, upright appearance is preferred. The frame uses 25.4 mm diameter welded steel tube with a chrome finish and uninterrupted runners, creating the characteristic cantilever silhouette. The support is fixed rather than adjustable, offering slight controlled flex without tilt, swivel, height adjustment, or casters. Four black non-marking polymer glides are fitted at the runner ends to protect hard floors and permit limited repositioning. The chair weighs 12.5 kg and balances a visibly slender frame with substantial static load targets, including a 120 kg rated occupant load and a 600 kg front-edge vertical frame test target. Comfort comes from shaped foam construction. The seat includes an 80 mm high-resilience foam pad with engineered hardness specified as 45 kg/m3, while the finished cushion thickness is 90 mm. The back uses 60 mm molded foam at 38 kg/m3 engineered density, with 70 mm of finished backrest padding, a fixed lumbar contour, and a lumbar support zone height of 240 mm. The back also provides 555 mm of upper-back support. Black padded arm pads are wrapped in the same visible upholstery material and connect into the cantilever frame, with a clear width of 540 mm between armrests and fixed arm support 215 mm above the seat. The upholstery is described as leather-look coated fabric or a split-leather substitute; exact material grade should be confirmed through the supplier bill of materials before order placement. This distinction is especially important for projects with finish, cleaning, durability, or sustainability requirements. Because the chair does not stack and has fixed arms and a cantilever base, storage and handling should be planned accordingly.

FG-8572C Upholstered Visitor Chair with Chrome Cantilever Frame Specifications
