PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	740 × 810 × 1400 mm
seat width	560 mm
seat depth	520 mm
seat height adjustable range top	560 mm
seat height adjustable range minimum	450 mm
backrest height	860 mm
armrest height from seat	220 mm
five-star base diameter	700 mm
caster diameter	50 mm
footrest extension length	420 mm
integrated headrest thickness	120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight	28 kg
recommended static load capacity	227 kg
cushion foam thickness	140 mm
backrest foam thickness	100 mm
seat foam density	45 kg/m³
foam rebound rate	60%
upholstery abrasion resistance	50000 cycles
caster rolling durability	100000 cycles
structure warranty	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

seat and back upholstery	1.2mm thick light grey faux leather
seat cushion core	High-density polyurethane foam with pocket spring layer
backrest core	Contoured high-density foam with integrated lumbar padding
armrest caps	Curved dark woodgrain finished hard caps over padded arm bases
internal frame	1.5mm thick welded steel tube frame with plywood reinforcement
five-star base	Polished chrome-plated steel 5-prong swivel base
casters	50mm diameter black PU dual-wheel swivel casters
recline mechanism	2.5mm thick steel tilt lock mechanism with chrome adjustment lever
gas lift	Class 4 nitrogen-filled steel gas lift cylinder
footrest frame	Chrome-plated steel slide rail with padded faux leather top
stitching	Reinforced polyester thread with 8mm seam pitch
armrest padding	20mm thick foam padding under woodgrain arm caps

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel rotation	Full 360° swivel around central gas lift axis for multi-directional access
seat height adjustment	110mm vertical height travel via side-activated gas lift
lockable recline function	135° maximum backrest recline with infinite position lock
recline tension adjustment	User-adjustable tilt tension to match body weight
retractable footrest	420mm slide-out padded footrest that stows under seat when not in use
integrated headrest support	Fixed padded headrest section aligned to support neck in all positions
integrated lumbar support	Contoured built-in lumbar pad aligned to support lower back
smooth rolling mobility	Dual-wheel PU casters roll on hardwood, tile, and low-pile carpet
fixed padded armrests	Stationary curved armrests positioned at standard elbow height
reclined total length	1500 mm
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

executive private office	Suitable for director/CEO offices with professional styling and recline comfort
home office study	Works for premium home workspaces where users work long hours or take short breaks
managerial meeting rooms	Appropriate for senior meeting spaces requiring comfortable seating for long discussions
reception executive areas	Fits premium reception zones for visiting executive guests
commercial office procurement	Meets standard procurement specifications for mid-to-premium grade office seating
multi-surface use	Compatible with hardwood, tile, and low-pile carpet floor types without additional mats
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applicable European standard for office chair dimensional requirements
EN 1335-2:2018	Applicable safety strength and durability standard for office work chairs
EN 1022:2018	Applicable standard for seating stability for office use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applicable North American standard for office chair strength, durability, and safety
ANSI/BIFMA X5.11-2015	Applicable standard for big-and-tall office chair performance ratings

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applicable standard for office chair dimensional stability and measurement
GB 28007-2011	Applicable safety standard for strength and durability of office seating
GB/T 19941-2005	Applicable standard for leather/faux leather upholstery material performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable standard for office chair dimensional stability and measurement;
2. GB 28007-2011: Applicable safety standard for strength and durability of office seating;
3. GB/T 19941-2005: Applicable standard for leather/faux leather upholstery material performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · REC-EXEC-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · REC-EXEC-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · REC-EXEC-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

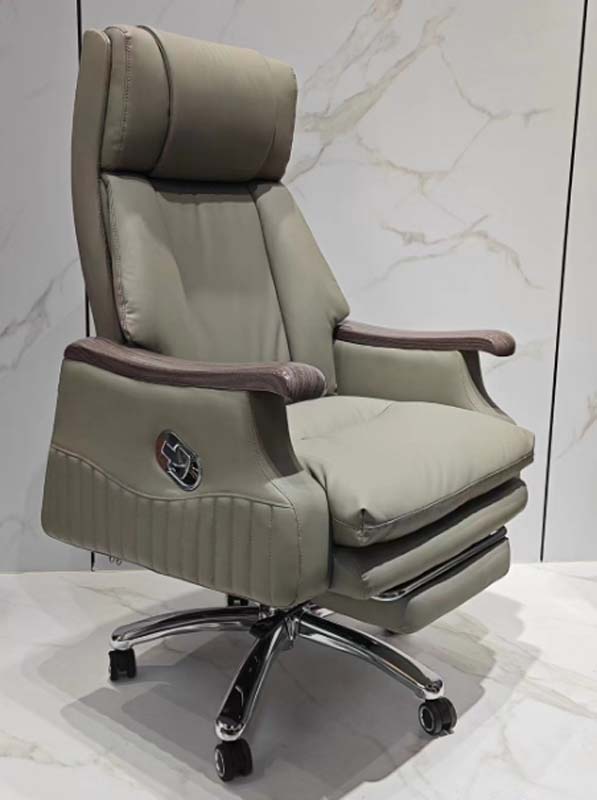

The Light Grey Reclining Executive Office Chair with Extendable Footrest, model REC-EXEC-GRY-01, carries an unbranded positioning, balancing modern executive styling with ergonomic functional support for professional and premium work settings. Visually, it features a streamlined, structured silhouette upholstered in consistent light grey, paired with curved dark woodgrain armrest caps and a polished chrome five-star base that delivers a polished, professional aesthetic suitable for high-end work environments. The 560 mm wide, 520 mm deep seat sits atop the 700 mm diameter five-prong base, with a fixed padded headrest integrated into the 860 mm tall backrest to align with the neck across all recline positions, while contoured built-in lumbar padding supports the lower back without protruding add-ons. The chair is built for long-term durability, with a 1.5mm thick welded steel tube frame reinforced with plywood at its core. Seat and back surfaces use 1.2mm thick light grey faux leather rated for 50000 abrasion cycles, with cushioning constructed from high-density polyurethane foam paired with a pocket spring layer for the seat, and contoured high-density foam for the back. Foam specifications include a 45 kg/m³ seat density, 60% rebound rate, 140mm seat cushion thickness, and 100mm backrest foam thickness. Hardware components include a 2.5mm thick steel tilt lock mechanism with chrome adjustment lever, Class 4 nitrogen-filled steel gas lift, and 50mm diameter black PU dual-wheel swivel casters, supporting a 28 kg net weight and 227 kg recommended static load capacity. For user functionality, the chair delivers full 360-degree swivel for multi-directional workspace access, 110mm of vertical seat height adjustment ranging to a maximum 560 mm seat height, and 135-degree maximum backrest recline with infinite position locking, plus user-adjustable tilt tension to match individual body weight. A 420mm slide-out padded footrest stows seamlessly under the seat when not in use, enabling comfortable short rest breaks without additional furniture. The chair is well suited for executive private offices for directors and CEOs, premium home office studies for users working long hours, senior managerial meeting rooms for extended discussions, and upscale reception areas for visiting executive guests. It operates safely on hardwood, tile, and low-pile carpet floors without additional protective mats, and meets standard specifications for mid-to-premium grade commercial office procurement. For purchasing planning, each unit ships in 2 cartons, requires 40 minutes of assembly per set, and 135 sets fit in a 20GP container at 85% space utilization, making it scalable for both single-space and bulk commercial orders. Upright, the chair measures 740 x 810 x 1400 mm, with armrests positioned 220 mm above the seat surface for consistent arm support during typing and meeting activities.
