EX-HB-L-01

Code：ARBNGKV1
Request supplier quotes

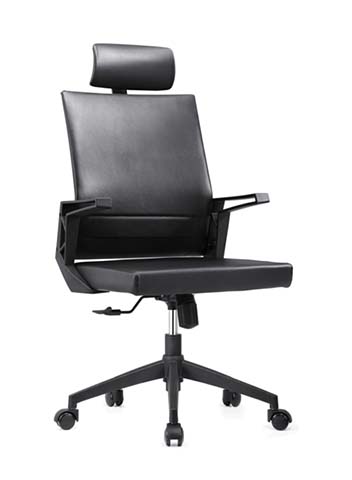

High-Back Leather Executive Office Chair with Headrest Key Specifications 2026-08-02 11:56

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EX-HB-L-01

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 700 x 1280 mm
Seat width500 mm
Seat depth480 mm
Seat height range480 mm
Backrest height720 mm
Backrest width500 mm
Headrest width280 mm
Headrest depth150 mm
Armrest height from seat200 mm
Five-star base diameter700 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight reference25 kg
Recommended maximum user weight150 kg
Seat foam density45 kg/m³
Back foam density35 kg/m³
Gas lift static load rating1000 kg
Base static load rating1200 kg
Caster rolling durability100000 cycles
Tilt angle range135 degrees
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsterySmooth black leather-faced cover with bonded leather construction
Headrest padFoam-padded cylindrical cushion with matching leather-faced cover
Seat and back foamPolyurethane foam padding of medium-high density
Internal framePlywood and steel inner support frame under upholstery
ArmrestsBlack PP top pad mounted on black steel or nylon support bracket
Five-star baseBlack nylon reinforced 5-leg base
Gas lift cylinderSteel pneumatic height-adjustment cylinder with black outer sleeve
Tilt mechanismSteel chassis with control levers under the seat
CastersBlack twin-wheel swivel casters with hard tread
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment via side lever, providing vertical travel up to 100 mm
Backrest tilt and lockSynchronous or knee-tilt mechanism with multiple lock positions, reclining up to 135 degrees from upright
Headrest supportFixed-position cylindrical headrest for upper neck and head support
Swivel function360-degree full rotation around the central gas lift axis
Mobility5 dual-wheel swivel casters for smooth rolling on hard and carpeted floors
Fixed armrestsFixed-height armrests with flat top pads for forearm support
Tilt tension controlUnder-seat knob or lever for adjusting backrest recline resistance
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Packaging units1 carton per chair
Carton dimensions750 x 650 x 450 mm
Gross weight per carton28 kg
Volume per carton0.22 m³
Assembly time50 minutes
20ft container loading quantity200 units
Warranty reference5 years
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive officesSuitable for senior management workstations requiring a formal leather aesthetic and ergonomic tilt support
Conference roomsSuitable for meeting rooms with long-duration seated discussions and presentation sessions
Reception and waiting areasSuitable for premium visitor seating in lobbies and client waiting zones
Home office premium setupsSuitable for high-end home workspaces seeking executive styling and adjustable height function
Control rooms and monitoring stationsSuitable for long-shift workstation environments requiring recline and headrest support
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Applicable for office chair dimensions, safety and stability requirements
EN 1335-2:2019Applicable for office chair strength, durability and safety testing
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017Applicable for general office chairs performance and durability testing
ANSI/BIFMA X5.11-2020Applicable for chair caster durability and rolling resistance testing
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 14710-2009Applicable for stability, strength and durability testing of office chairs
GB/T 3323-2019Applicable for metal furniture general technical requirements for steel structural parts
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 14710-2009: Applicable for stability, strength and durability testing of office chairs;
2. GB/T 3323-2019: Applicable for metal furniture general technical requirements for steel structural parts;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EX-HB-L-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EX-HB-L-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EX-HB-L-01Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The GUOYOU EX-HB-L-01 is a high-back leather executive office chr with headrest, engineered to deliver formal aesthetic appeal and functional support for both commercial and premium residential settings. Its sleek, cohesive black design features a tall contoured backrest topped with a cylindrical foam-padded headrest, pred with fixed flat-top armrests and a matte black five-star base, creating a streamlined, professional silhouette suited to executive-grade interiors. Constructed with a bonded leather-faced upholstery covering medium-high density polyurethane foam padding, the chr’s internal structure is supported by a plywood and steel inner frame. Height adjustment is enabled by a steel pneumatic gas lift cylinder, while a steel tilt chassis with control levers sits beneath the seat. The five-star base is built from reinforced black nylon, fitted with black twin-wheel hard-tread swivel casters for mobility. Armrests combine black polypropylene top pads with black steel or nylon support brackets, complementing the chr’s uniform dark finish. For practical use, the chr offers pneumatic seat height adjustment via a side lever, along with a tilt mechanism that reclines up to 135 degrees from the upright position with multiple lock positions and adjustable tension. The fixed cylindrical headrest provides upper neck and head support, while fixed-height armrests offer stable forearm rest. It supports full 360-degree swivel rotation and smooth multidirectional movement across floor surfaces, with padded seat and back sections designed to accommodate extended seated sessions. The chr is suited for a range of commercial spaces including executive offices, conference rooms, premium reception and wting areas, and long-shift control or monitoring stations. It also fits well in high-end home office setups that prioritize executive styling alongside adjustable ergonomic features. Procurement teams should note that the chr ships in knockdown packaging, with a single chr packed per carton. Single-person assembly is required, and units are compatible with standard executive desk configurations. Specifications for material thickness, foam density, load ratings, and warranty terms reflect reference benchmarks for the category, and final validation of these detls with the supplier is recommended prior to purchase.
