Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

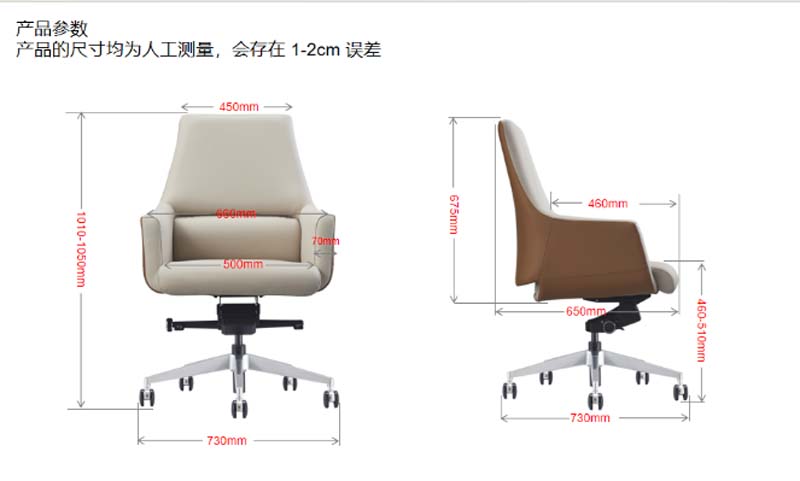

| Overall dimensions (W × D × H) | 730 × 650 × 1050 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Chair net weight | 19 kg | |
|---|---|---|
| Recommended maximum user weight | 150 kg | |
| Backrest static load reference | 200 kg | |
| Seat impact endurance reference | 100000 cycles | |
| Gas-lift vertical travel | 50 mm | |
| Swivel rotation | 360 degrees | |
| Caster rolling endurance reference | 100000 cycles | |
| Base static verification load | 1136 kg | |
| Seating capacity | 1 person | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and front upholstery | Light beige upholstered padding with stitched cushion boundaries; leather or synthetic leather grade requires supplier BOM confirmation | |
|---|---|---|
| Outer back and arm shells | Brown upholstered curved outer shell forming integrated armrests and back support; visible two-tone construction | |
| Seat cushion structure | Padded cushion over a concealed load-bearing board; 80 mm foam depth selected from visible cushion thickness | |
| Backrest cushioning | Contoured padded back panel with continuous side wings; internal board or molded shell requires supplier BOM confirmation | |
| Five-star base | Silver finished metal five-star base with five outward legs; aluminum or steel alloy requires supplier BOM confirmation | |
| Casters and lifting hardware | Black twin-wheel casters, black gas lift, and black metal tilt mechanism visible under the seat |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Pneumatic height adjustment | Under-seat gas lift changes seat height through a 50 mm stroke, from 460 mm to 510 mm | |
|---|---|---|
| Swivel and mobility function | Central swivel and five twin-wheel casters provide 360-degree rotation and movement on hard office floors or carpet | |
| Recline control | Visible under-seat tilt mechanism supports controlled back recline with a 15-degree maximum angle and lockable upright position | |
| Integrated arm support | Fixed curved arm panels rise continuously from the back shell and provide 70 mm side support thickness without width adjustment |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Export carton dimensions | 820 x 690 x 420 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive and meeting spaces | Suitable for executive offices, boardrooms, and client meeting rooms where a 500 mm seat and high-back profile support formal all-day use | |
|---|---|---|
| Reception and management workpoints | Suited to reception suites and manager workstations requiring quiet two-tone upholstery, swivel mobility, and 510 mm adjustable seat height |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture safety and strength | EN 16139:2013+AC:2013 | |
|---|---|---|
| Office chair wheel behavior | EN 12529:1999 | |
| Upholstered furniture flammability | EN 1021:2014 and EN 1021:2014 |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Office chair structural performance | ANSI/BIFMA X2017 | |
|---|---|---|
| Formaldehyde emissions from composite panels | ANSI/BIFMA e2023credit 7.6.1 |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Office chair safety applicability | GB/T 28004 | |
|---|---|---|
| Furniture upholstery formaldehyde control | GB 28007 |
This product must meet the following technical requirements: 1. Office chair safety applicability: GB/T 28004; 2. Furniture upholstery formaldehyde control: GB 28007; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
