PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

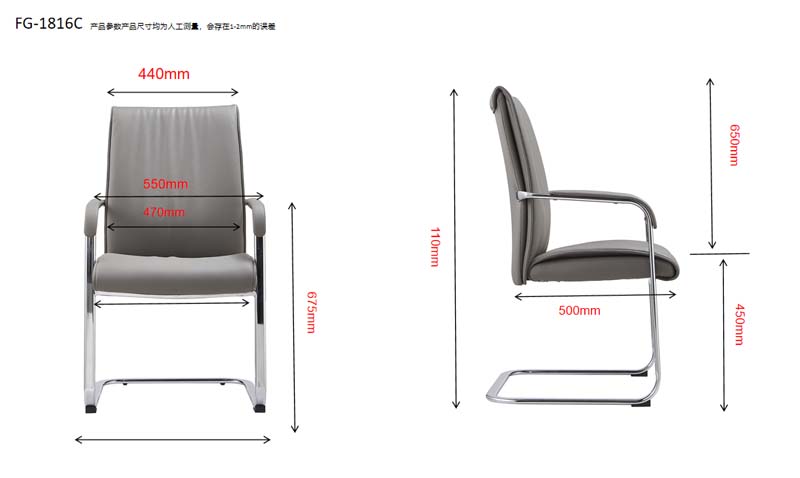

Overall dimensions (W × D × H)	550 × 500 × 1100 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	11 kg
Rated static load	160 kg
Recommended user weight	120 kg
Seating capacity	1 person
Stacking capacity	0 chairs
Nesting capacity	0 chairs
Back load-deflection reference	120 kg rearward static check load
Seat impact endurance reference	100000 cycles
Frame stability verification	60 N horizontal rear overturn force
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Gray leather-look surface with padded cushion and stitched edge piping
Back upholstery	Tall padded gray upholstered panel with vertical pleats and rolled top edge
Cushion core	Molded polyurethane foam seat and back padding, 80 mm seat and 70 mm back reference thickness
Cantilever frame	One-piece chrome-plated steel tube forming two side C-frames joined by a lower crossbar
Arm supports	Chrome steel tube continuing from the cantilever frame with gray padded arm caps integrated under the upholstery
Floor glides	Black non-marking polymer caps at four runner contact points

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cantilever rocking action	The continuous steel sled frame provides controlled vertical flex without tilt locking, reclining mechanism, or user adjustment
Fixed seating position	The 450 mm seat height and 650 mm back height provide an upright conference posture with no height, swivel, or recline adjustment
Floor protection	Four polymer glides distribute the frame load and allow controlled repositioning on hard floors
Arm support	Fixed continuous armrests run from front seat edge to back support at a 230 mm reference height above the seat

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference and meeting rooms	Fixed padded arms and upright 450 mm seat height suit prolonged visitor seating around standard 760 mm conference tables.
Reception and executive guest areas	Gray high-back upholstery and polished sled frame provide a formal appearance for reception, waiting, and management meeting spaces.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FG-1816C

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FG-1816C

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FG-1816COpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Gray Upholstered Cantilever Visitor Chair, model FG-1816C, is an unbranded high-back visitor seat designed for formal meeting and guest settings. Its clean silhouette combines a tall gray upholstered back, padded seat, continuous chrome frame, and integrated armrests, giving it a structured executive appearance that suits professional interiors without requiring adjustment controls or moving mechanisms. The back is a padded gray panel with vertical pleats and a rolled top edge, while the seat uses a gray leather-look surface with stitched edge piping. Visually, the chair presents a neat cantilever profile in which polished steel tubing runs from the floor runners, upward beneath the seat, and into the arm and back supports. Construction centers on a one-piece chrome-plated steel tube frame formed as two side C-frames and joined by a lower crossbar. The frame supports molded polyurethane foam padding, with a 90 mm finished seat cushion, 70 mm backrest padding, and a defined lumbar support zone. The arm supports continue directly from the cantilever frame and feature gray padded arm caps integrated beneath the upholstery. Four black non-marking polymer glides cap the runner contact points to help protect hard floors during controlled repositioning. The chair has an overall dimension of 550 x 500 x 1100 mm, a 540 mm clear width between armrests, and a net weight of 11 kg. Functionally, the FG-1816C uses the continuous sled base to provide controlled vertical flex. It does not include tilt locking, reclining hardware, swivel action, or height adjustment. The fixed 450 mm seat height and 650 mm back height encourage an upright conference posture, while the fixed armrests extend from the front seat edge to the back support at a 230 mm reference height above the seat. Rated static load is 160 kg, with a recommended user weight of 120 kg. The chair seats one person and does not stack or nest, making it best considered as a permanent side or visitor seat rather than a flexible event-stacking chair. It is well suited to conference rooms, meeting rooms, reception lounges, waiting areas, and executive guest spaces, particularly around standard 760 mm conference tables. The gray leather-look upholstery and polished chrome frame create a formal look that coordinates with neutral office interiors. Procurement planning should note that each set ships in two cartons, with packaged gross weight of 23 kg and reference assembly time of 40 minutes. The fixed footprint, non-stacking design, glide specification, high-back form, and assembly requirement should be reviewed against storage space, floor type, table height, and intended visitor-use frequency.

Gray Upholstered Cantilever Visitor Chair with Chrome Sled Frame Specifications
