PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

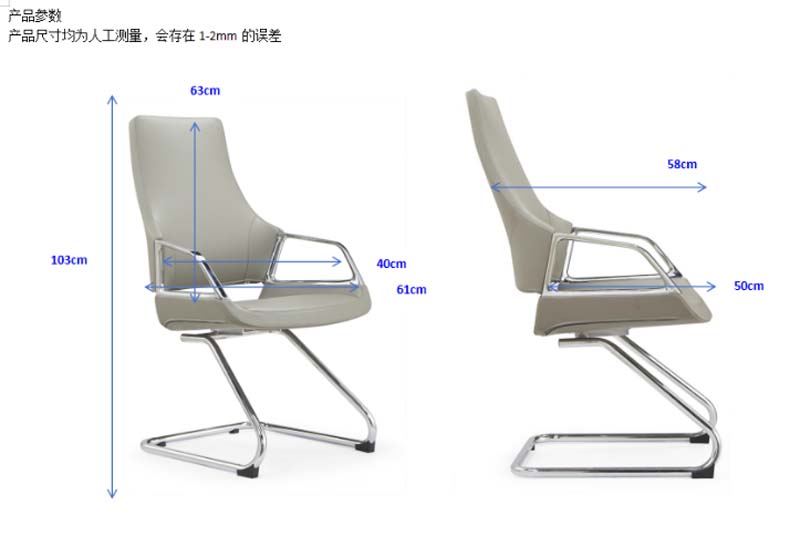

Overall dimensions (W × D × H)	610 × 580 × 1030 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	160 kg
Recommended user body weight	120 kg
Net weight	13 kg
Seating capacity	1 person
Stacking quantity	0 chairs
Frame static proof-load target	640 kg
Backrest cyclic endurance target	120,000 cycles
Seat front-edge fatigue target	100,000 cycles
Floor glide compression load	80 kg per glide
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Light grey upholstered surface over a padded molded shell; exact leather, PU, or fabric grade requires supplier BOM confirmation.
Seat cushion core	80 mm molded polyurethane foam pad, density 35 kg/m3, rebound 35% target
Backrest cushion core	60 mm polyurethane foam layer, density 30 kg/m3, rebound 30% target
Inner support shell	8 mm molded plywood or reinforced polypropylene seat shell
Armrest and leg frame	One-piece polished chrome-plated 25 mm steel tube forming arm loops and cantilever runners
Surface finish	Mirror chrome plating at 0.25 mm minimum target thickness over steel tubing

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cantilever rocking action	Fixed sled frame provides controlled flex under load, with no swivel, gas lift, or tilt lock
Integrated arm support	Chrome tubular armrests provide continuous forearm and side support at 230 mm above the seat
Floor protection	Four replaceable polymer glides distribute load and reduce scratching on hard floors
Fixed-position conference seating	Non-adjustable high-back posture intended for meeting, visitor, and boardroom seating

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference and meeting rooms	High-back fixed chair suited to boardrooms and meeting areas where users need a formal, non-swivel seat around a table.
Visitor and reception seating	Light grey upholstery and polished frame support professional reception, lounge-adjacent, or consultant seating.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VIS-CONF-HB-SLED-610

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VIS-CONF-HB-SLED-610

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VIS-CONF-HB-SLED-610Open Export Tool

Quick Actions

Post an RFQ

Product Description

The High-Back Upholstered Conference Chair with Chrome Cantilever Sled Base is a formal visitor and conference seat with a clean, structured silhouette. Its light grey upholstered seat and tall back are paired with a polished chrome-plated tubular steel frame, creating a refined contrast between soft seating surfaces and a reflective metallic structure. The one-piece frame forms integrated arm loops and continuous cantilever sled runners, giving the chair an open, linear profile suited to organized meeting layouts and reception settings. The armrests provide continuous forearm and side support, while four black anti-slip polymer glides complete the base and help protect hard flooring. Construction centers on a padded molded seat and back shell. The seat uses a molded polyurethane foam cushion with density and rebound targets specified for support, paired with an upholstered surface. The backrest uses a separate polyurethane foam padding layer over the molded shell. The inner support shell is supplied in molded plywood or reinforced polypropylene, and the precise upholstery grade should be confirmed through the supplier bill of materials. The frame is made from steel tube with a mirror chrome plating finish and includes replaceable glides that distribute load and reduce scratching. As a fixed-position chair, it does not swivel, include a gas lift, or offer tilt lock adjustment. Instead, the cantilever sled base provides controlled flex under load, producing a steady seating action appropriate for professional environments. The high back includes a defined lumbar support zone, and the non-adjustable design promotes consistent seating posture around conference and boardroom tables. It is intended for single-person use and is not designed for stacking. This model is well suited to conference rooms, boardrooms, meeting areas, and visitor or reception spaces where a polished, non-swivel chair is preferred. Its neutral light grey finish and bright chrome frame also make it suitable for consultant seating and lounge-adjacent reception zones that require a businesslike appearance. For procurement, buyers should verify the exact seat and back upholstery material, shell configuration, packaging condition, and assembly requirements. The chair ships across two cartons per set, with assembly time referenced at forty minutes per set. Weight capacity, glide replacement, freight volume, and container loading should be reviewed alongside project quantities and delivery terms.
