PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

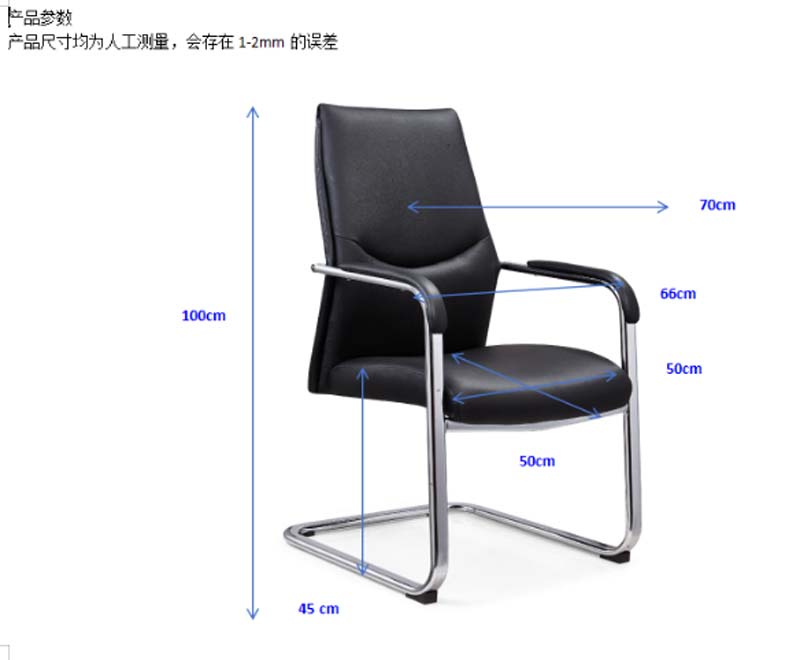

Overall dimensions (W × D × H)	500 × 700 × 1000 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	13 kg
Recommended user weight capacity	140 kg
Seat foam density	40 kg/m3
Back foam density	35 kg/m3
Foam rebound	40%
Upholstery abrasion resistance	50000 Martindale cycles
Metal frame static load rating	200 kg
Stacking capacity	0 chairs
Seam stitch pitch	8 stitches per 50 mm
Warranty period	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Black leather-look upholstered surface over padded seat and back
Seat cushion	Padded polyurethane cushion, 90 mm target thickness
Back cushion	Contoured padded polyurethane back with lumbar curve, 80 mm target thickness
Support frame	Polished chrome-plated tubular steel cantilever sled frame, 32 mm target tube diameter
Armrest construction	Fixed curved arm with chrome tubular support and black padded contact surface
Floor protection	Black polymer glide pads at four sled-frame floor-contact ends

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed seating position	Non-swivel fixed visitor-chair posture with 450 mm seat height
Arm support	Fixed padded armrests at 660 mm floor height and 210 mm above seat
Lumbar support	Integrated contoured lumbar curve in the upholstered back, no adjustable mechanism
Floor movement	Light repositioning by sliding on polymer-tipped chrome runners, with no casters

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Meeting and visitor spaces	Suitable for conference rooms, reception areas, and interview settings where fixed formal seating is required
Workstation guest seating	Suitable as a guest chair beside a desk or executive table

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VC-SLED-BLK-700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VC-SLED-BLK-700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VC-SLED-BLK-700Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Black Upholstered Visitor Chair with Chrome Sled Frame, model VC-SLED-BLK-700, is a formal meeting and visitor chair supplied without a branded label. Its appearance balances a tailored black upholstered seat and back with a bright polished chrome frame, producing a clean, professional look suited to organized reception and conference settings. The chair has a straightforward side-chair layout with a non-swivel fixed seating position, continuous sled support, and fixed curved armrests. The broad back includes an integrated contoured lumbar curve rather than an adjustable mechanism, while the padded armrests provide a consistent black contact surface over chrome tubular supports. The cantilever sled frame is made from polished chrome-plated tubular steel and terminates in black polymer glide pads at all four floor-contact points. These glides allow light repositioning by sliding while avoiding casters, helping the chair retain a neat placement in formal spaces. Comfort is built around layered polyurethane padding. The finished seat cushion is 90 mm thick and uses 40 kg/m3 foam, while the backrest has 70 mm of finished padding and 35 kg/m3 foam. The contoured back includes a 240 mm lumbar support zone, and the clear width between armrests is 540 mm. The seat is set at a fixed 450 mm height, with armrest support at 660 mm from the floor, or 210 mm above the seat. The black leather-look upholstery gives a consistent executive finish, and its abrasion rating is 50000 Martindale cycles. The chair has a net weight of 13 kg, a recommended user weight capacity of 140 kg, foam rebound of 40%, and a metal frame static load rating of 200 kg. This model is appropriate for conference rooms, reception areas, interview rooms, and guest seating beside desks or executive tables. Its fixed posture and refined frame make it particularly suitable where a coordinated, formal seating arrangement is preferred over mobile task seating. For procurement, each set is supplied in two cartons, with packaged gross weight of 23 kg and carton volume of 0.26 m3. Planning can allow 40 minutes for assembly per set. The reference loading quantity is 135 sets in a 20GP container at 85% space utilization. Buyers should specify floor-protection requirements, confirm assembly resources, and match the black-and-chrome finish with existing meeting-room furniture and flooring conditions.

Black Upholstered Visitor Chair with Chrome Sled Frame Specifications
