PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 680 × 1230 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	19 kg
Maximum user weight	160 kg
Recommended user height range suitability	190 cm maximum body height
Recommended daily use duration	8 hours per day
Gas lift vertical stroke	100 mm
Back recline angle	18 degrees backward from upright
Seat swivel angle	360 degrees
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound resilience	45 percent

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Tan leather-touch upholstery over a stitched padded cushion
Back upholstery	Tan upholstered panels with horizontal segmented seams
Seat cushion core	110 mm molded polyurethane foam, density target 45 kg/m3
Back cushion core	80 mm polyurethane padding over a load-bearing back shell
Armrests	Continuous upholstered tubular loop with padded contact surface and rigid inner support
Internal seat shell	12 mm molded plywood or engineered composite seat board
Back support frame	20 mm tubular steel inner frame with welded back brackets
Tilt mechanism	Black steel multi-position tilt mechanism with 2.5 mm plate target
Gas lift	50 mm outer-column black steel gas lift, Class 4 procurement grade
Five-star base	Polished chrome-plated steel five-star base with 1.5 mm wall target
Casters	60 mm black nylon twin-wheel casters with steel bearing pins
Fasteners and connectors	Black powder-coated steel brackets, bolts, and spring-tension assembly

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height adjustment through a 100 mm stroke using a side actuator
360-degree swivel	Seat and back rotate freely around the gas lift on the five-star base
Back tilt	Synchronized back recline to 18 degrees with spring-loaded return
Tilt tension control	Knob-adjustable recline resistance for users up to 160 kg
Upright tilt lock	One lock position at the upright working angle for task focus
Mobility	Five 60 mm twin-wheel casters enable rolling on hard floors and low-pile carpet
Integrated arm support	Fixed loop armrests provide 230 mm forearm support above the seat
Lumbar and upper-back support	Segmented high back divides lumbar, mid-back, and upper-shore support zones
Seat-front pressure relief	Rounded waterfall cushion front with 110 mm padding reduces thigh-edge pressure
Color configuration	1 standard tan upholstery color with polished chrome base
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suited to private manager offices where a high back, padded arms, and chrome base support formal seating.
Open-plan workstation	Fits desk-based staff requiring 360-degree swivel, 500 mm seat height, and carpet-safe mobility.
Meeting and conference room	Appropriate for long discussions around executive desks or conference tables with 760 mm work height.
Home office	Suitable for dedicated home workrooms with hard floors or low-pile carpet and standard desk clearance.
Senior reception area	Can serve guest or supervisor seating where tan upholstery and polished metal create a refined appearance.
User profile	Designed for users up to 160 kg and 190 cm tall using the chair for up to 8 hours daily.
Recommended floor protection	Use a hard-floor chair mat on wood or tile if softer tread casters are not supplied.
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXE-HB-TAN-5S

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXE-HB-TAN-5S

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXE-HB-TAN-5SOpen Export Tool

Quick Actions

Post an RFQ

Product Description

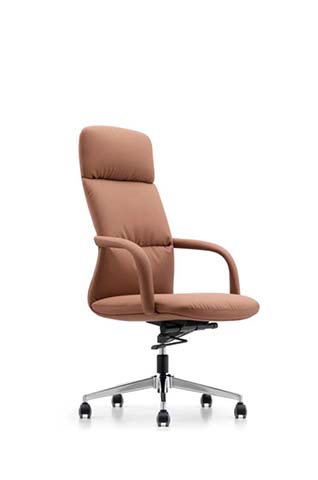

The High-Back Upholstered Executive Swivel Chair, model EXE-HB-TAN-5S, presents a formal executive seating profile with tan leather-touch upholstery, a tall supportive back, padded fixed armrests, and a polished chrome five-star base. Its seat and back use coordinated tan panels: the seat is a stitched padded cushion, while the back features horizontal segmented seams that give the chair a structured office appearance. The continuous upholstered tubular loop armrests create a clean visual line and provide padded forearm support. Overall dimensions are 650 mm wide, 680 mm deep, and 1230 mm high, with 540 mm of clear width between the armrests. Construction combines upholstered comfort with a steel support system. The finished seat cushion is 90 mm thick and uses a 110 mm molded polyurethane foam core with a density target of 45 kg/m3. The backrest has 70 mm of finished padding over an 80 mm polyurethane cushion and load-bearing shell, including a 240 mm high lumbar support zone. Inside are a 12 mm molded plywood or engineered composite seat board and a 20 mm tubular steel back frame with welded brackets. The black steel multi-position tilt mechanism uses a 2.5 mm target plate, paired with a 50 mm outer-column black steel gas lift specified to Class 4 procurement grade. The chair rests on a chrome-plated five-star steel base and black nylon 60 mm twin-wheel casters. Functionally, the chair supports pneumatic seat-height adjustment through a 100 mm stroke using a side actuator, full 360-degree swivel, and synchronized back recline of 18 degrees from upright with spring-loaded return. A knob adjusts tilt resistance for users up to 160 kg, and an upright lock secures the chair for task-focused work. The fixed armrests offer 230 mm of forearm support above the seat, while the casters allow movement on hard floors and low-pile carpet. Net weight is 19 kg, and the chair is intended for users up to 190 cm tall and up to 8 hours of daily use. It is suitable for private manager offices, open-plan workstations, meeting and conference rooms, dedicated home offices, and senior reception areas where a refined tan and chrome look is appropriate. Buyers should note the unbranded presentation, two-carton packaging, 23 kg packaged gross weight, 0.26 cubic meter carton volume, and 40-minute reference assembly time per set. The indicative 20GP loading is 135 sets at 85 percent space utilization, useful for volume planning.

High-Back Upholstered Executive Swivel Chair Specifications
