Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

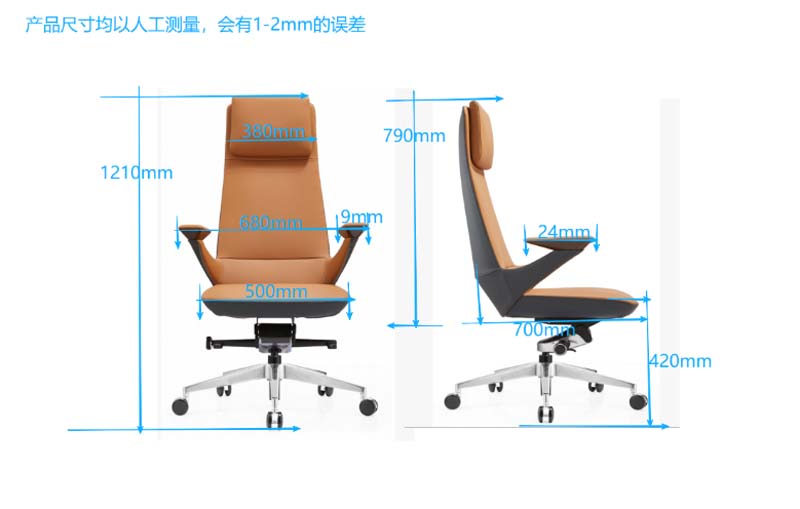

| Overall dimensions (W × D × H) | 680 × 700 × 1210 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 21 kg | |
|---|---|---|
| Recommended user weight capacity | 150 kg | |
| Static seat load verification target | 690 kg | |
| Backrest backward tilt angle | 18 degrees | |
| Caster rolling durability target | 100000 cycles | |
| Gas-lift vertical cycles | 100000 cycles | |
| Seat foam density | 45 kg/m3 | |
| Back foam density | 35 kg/m3 | |
| Foam rebound rating | 40 percent | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Cognac leather-look surface over padded cushions | |
|---|---|---|
| Outer back and underside shell | Dark gray molded polymer structural shell | |
| Armrest construction | Fixed curved dark polymer arms with 24 mm padded top surfaces | |
| Five-star base | Polished aluminum-alloy five-star swivel base | |
| Casters | Black twin-wheel hard-floor casters with swivel stems | |
| Gas lift and mechanism | Black-and-chrome steel gas lift with multi-lever tilt mechanism |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Swivel function | 360-degree swivel around the central gas lift for full turning access at a desk. | |
|---|---|---|
| Height adjustment | Pneumatic seat-height lift with a 100 mm stroke, actuated by the visible underside lever. | |
| Recline function | Synchro-tilt backrest movement to 18 degrees rearward with proportional seat movement. | |
| Arm support | Fixed curved arms position the padded support 220 mm above the seat for forearm support. |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 820 x 680 x 380 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Recommended Matching Desk Size | 2.4 m executive desk | |
|---|---|---|
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
