PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

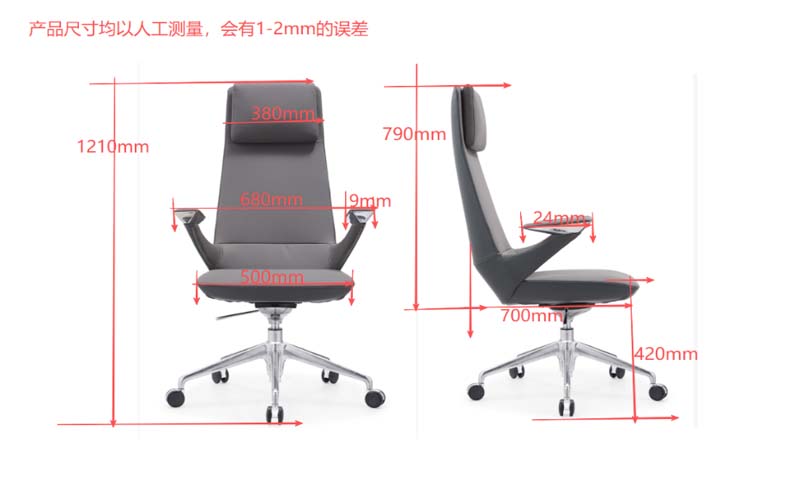

Overall dimensions (W × D × H)	680 × 700 × 1210 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	19.5 kg
Recommended user weight capacity	150 kg
Seat impact and cyclic durability target	100,000 cycles
Gas-lift static load rating	150 kg
Five-star base static load target	1136 kg
Caster rolling durability target	100,000 cycles
Recommended user height range	1900 mm
Seating capacity	1 person
Warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Dark grey padded upholstery with continuous cushioned seat and back surfaces
Headrest cushion	Attached high rectangular cushion, 380 mm wide, upholstered in the same dark grey material
Seat cushion core	Moulded polyurethane foam with a 70 mm thick engineered target and 45 kg/m3 density target
Back cushion core	Contoured polyurethane foam with a 60 mm thick engineered target and 40 kg/m3 density target
Internal load-bearing shell	Moulded plywood or reinforced polymer seat/back carrier with 12 mm target thickness
Arm assembly	Rigid angled arm supports with dark 24 mm padded top surfaces and silver-grey side finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height adjustment operated by the visible under-seat lever, with a 100 mm target stroke around the 420 mm seat height.
Swivel function	360-degree swivel seat on the central gas-lift bearing, allowing rotation without moving the five-star base.
Tension and posture support	Visible fixed arms provide forearm support at 230 mm above the seat, while tilt tension should be adjustable by a rear tension knob.
Mobility	Five twin-wheel casters provide omnidirectional movement on hard floors or low-pile carpet; caster hardness and brake option require selection.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	820 x 660 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive and management offices	High-back head support, dark upholstery, and polished metal base suit daily desk work in private offices and meeting rooms.
Conference and supervisory workstations	Swivel mobility and 150 kg target user capacity support prolonged seated discussion, computer work, and supervisory tasks.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020 dimensional suitability	Use office-chair dimensional and safety fit requirements as a procurement design reference.
EN 1335-2:2018 safety requirements	Apply stability, strength, and rolling-chair safety criteria during factory acceptance.
EN 1335-3:2009 test methods	Use standardized test methods for structural safety verification before volume shipment.
EN 1021-1 upholstery ignitability	Specify smouldering-cigarette ignition testing for the selected seat and back upholstery material.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 office chairs	Use back, seat, arm, base, caster, and stability tests as the commercial-furniture acceptance reference.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357 furniture mechanical test applicability	Apply relevant seat, back, arm, and base static-load and fatigue test clauses for procurement verification.
GB 17927-2010 upholstered furniture anti-ignition applicability	Specify cigarette and match ignition resistance when the selected upholstery is used in commercial interiors.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357 furniture mechanical test applicability: Apply relevant seat, back, arm, and base static-load and fatigue test clauses for procurement verification.;
2. GB 17927-2010 upholstered furniture anti-ignition applicability: Specify cigarette and match ignition resistance when the selected upholstery is used in commercial interiors.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · HB-EXEC-LEATHER-680

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · HB-EXEC-LEATHER-680

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · HB-EXEC-LEATHER-680Open Export Tool

Quick Actions

Post an RFQ

Product Description

The High-Back Padded Executive Swivel Chair with Headrest presents a formal, management-oriented seating profile in dark grey padded upholstery. Its continuous cushioned seat and back rise into an attached high rectangular headrest, creating a tall, supportive silhouette suited to private office settings. Rigid angled arm supports carry dark padded top surfaces with a silver-grey side finish, while a polished aluminium five-star base, chrome-plated gas lift, and black twin-wheel casters give the chair a structured commercial appearance. Overall dimensions are 680 by 700 by 1210 millimetres, with 540 millimetres of clear width between the armrests. The seat cushion has a finished thickness of 90 millimetres, the backrest padding is 70 millimetres thick, and the lumbar support zone is 240 millimetres high. The 380 millimetre headrest cushion uses the same dark grey upholstery for visual continuity. Construction balances comfort and load-bearing support. The seat cushion core uses moulded polyurethane foam with a 70 millimetre engineered thickness target and 45 kilograms per cubic metre density target. The contoured back cushion uses polyurethane foam with a 60 millimetre engineered thickness target and 40 kilograms per cubic metre density target. An internal moulded plywood or reinforced polymer carrier provides the seat and back structure, with a 12 millimetre target thickness. The polished five-star base has a static load target of 1136 kilograms, the gas lift has a 150 kilogram static load rating, and the recommended user weight capacity is 150 kilograms. The chair has a net weight of 19.5 kilograms and is intended for users up to 1900 millimetres in height. Daily operation is designed around executive desk use. A visible under-seat lever controls pneumatic height adjustment, with a 100 millimetre target stroke around the 420 millimetre seat height. The seat rotates 360 degrees on the central gas-lift bearing, so the user can turn without repositioning the base. Fixed arms place forearm support 230 millimetres above the seat, and a rear tension knob is intended for tilt-tension adjustment. Five twin-wheel casters provide omnidirectional movement on hard floors and low-pile carpet. Durability targets include 100,000 cycles for seat impact and cyclic use and 100,000 cycles for caster rolling. The chair is appropriate for executive and management offices, meeting rooms, conference workstations, supervisory desks, and prolonged computer or discussion-based work. Procurement planning should account for delivery as one set in two cartons, a packaged gross weight of 23 kilograms, and a reference assembly time of 40 minutes per set. Buyers should also select caster hardness and any brake option to match the intended floor.

High-Back Padded Executive Swivel Chair with Headrest Specifications
