PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

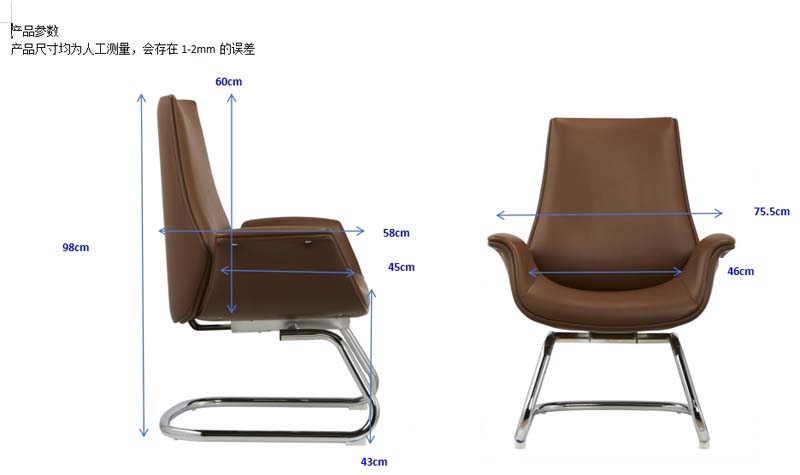

Overall dimensions (W × D × H)	755 × 580 × 980 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	16 kg per chair
Rated occupant load	160 kg static load
Recommended user body width	460 mm clearance
Frame vertical static proof-load target	1,100 N
Backrest backward static test target	670 N
Arm downward static test target	900 N per arm
Durability cycling target	120,000 seat-back cycles
Stacking or nesting capacity	0 chairs
Seat cushion indentation retention target	15% maximum after cyclic loading
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Brown coated-fabric or leather-look upholstery over formed seat and back panels
Seat cushion	High-resilience polyurethane foam with a 70 mm crown thickness and 45 kg/m3 density target
Back cushion	Molded polyurethane foam with 55 mm upper padding and 35 kg/m3 density target
Arm pads and side shells	Padded brown upper arm surfaces over rigid dark-brown structural side panels
Support frame	Polished chrome-plated cold-rolled steel cantilever tube, 25 mm diameter and 1.5 mm wall target
Floor contacts	Replaceable non-marking polymer glides fitted at the four runner ends

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating motion	Fixed cantilever flex without swivel, tilt lock, gas lift or wheels
Back support	Tall contoured back provides 600 mm upper-body support with a slight rearward reclined posture
Arm support	Integrated curved arms support forearms and connect into the side shell for side-impact resistance
Floor handling	Four polymer glides allow short repositioning while reducing floor noise and scratches

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Visitor and meeting areas	Fixed padded chair for reception lounges, conference rooms and executive visitor seating
Workstation guest seating	Cantilever guest chair placed opposite desks or in open-office consultation zones

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office-chair strength recommendation	EN 16139 for non-domestic seating strength, durability and safety
Stability recommendation	EN 1022 for seating stability verification
Upholstery fabric recommendation	EN 14465 for upholstery fabric performance classification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture safety recommendation	GB/T 10357.2 for chair stability and GB/T 10357.3 for chair strength and durability
Upholstered-furniture safety recommendation	GB 17927 for deterioration resistance of upholstered furniture materials

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture safety recommendation: GB/T 10357.2 for chair stability and GB/T 10357.3 for chair strength and durability;
2. Upholstered-furniture safety recommendation: GB 17927 for deterioration resistance of upholstered furniture materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VC-CANT-755-580-980-BRN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VC-CANT-755-580-980-BRN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VC-CANT-755-580-980-BRNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Brown Upholstered Cantilever Visitor Chair is an unbranded visitor seating solution, model VC-CANT-755-980-BRN, designed for reception, meeting, and guest-facing environments. It presents a tall, contoured high-back silhouette with integrated curved arms that flow into dark-brown structural side panels, giving the chair a unified, professional appearance. Its brown coated-fabric or leather-look upholstery covers the formed seat and back, while padded brown arm caps add a softer visual and physical contrast to the polished chrome frame. Overall dimensions are 755 x 580 x 980 mm, with a 540 mm clear width between the armrests. Construction combines cushioned surfaces with a rigid support structure. The seat uses high-resilience polyurethane foam with a 90 mm finished cushion thickness, while the backrest features molded polyurethane padding with a defined lumbar support zone. Padded upper arm surfaces sit over rigid dark-brown side shells, and the supporting structure is a polished chrome-plated cold-rolled steel cantilever tube with a sled-style base. The frame uses 25 mm diameter tube with a 1.5 mm wall target. Four runner ends are fitted with replaceable, non-marking polymer glides. The chair provides fixed cantilever flex rather than swivel, tilt, height adjustment, or wheeled movement. The tall back offers upper-body support in a slight rearward reclined posture, and the integrated curved arms support the forearms while connecting into the side structure. The glides permit short repositioning and help reduce floor noise and scratches. The chair has a net weight of 16 kg and a rated occupant load of 160 kg static load, with a recommended user body width clearance of 460 mm. Its appearance and function suit reception lounges, conference rooms, executive visitor areas, seating opposite workstations, and open-office consultation zones. The warm brown upholstery works well in spaces seeking a softer alternative to black or grey task seating, while the chrome cantilever frame maintains a commercial aesthetic. For procurement, buyers should note that each set is supplied in two cartons with a packaged gross weight of 23 kg, reference carton dimensions of 850 x 420 x 720 mm, and a reference assembly time of 40 minutes per set. The indicated 20GP loading quantity is 135 sets at 85 percent space utilization. Projects should confirm upholstery preference, floor surface compatibility, delivery access, assembly resources, and required quantities before ordering.

Brown Upholstered Cantilever Visitor Chair with Integrated Curved Arms Specifications
