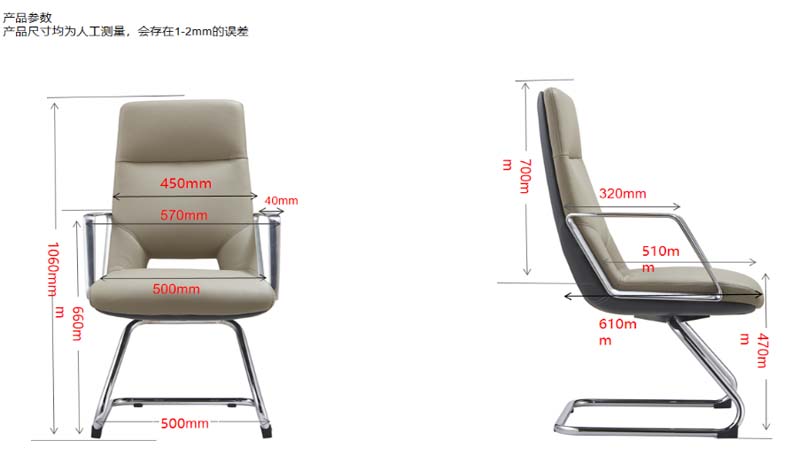

Padded High-Back Visitor Chair with Chrome Cantilever Sled Base (model VC-PU-570-CB) is listed under Executive Boss Chair. Dimensions: 570 × 610 × 1060 mm. Materials: Light taupe padded upholstery over foam cushion; material grade appears leather-like and requires supplier BOM confirmation.. Load capacity: 120 kg. Product Features: padded,high-back,visitor,chair,fixed,cantilever,sled,base,upholstered,seat,and,back,chrome,metal,frame. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | VC-PU-570-CB |
| Overall dimensions (W × D × H) | 570 × 610 × 1060 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended user weight capacity | 160 kg static load |
| Daily-use dynamic seating load | 120 kg | Recommended net weight | 14.5 kg |
| Seating capacity | 1 person | Stacking quantity | 0 chairs |
| Floor-protection glide count | 4 glides | Back support zones | 2 padded zones |
| Recommended upholstery abrasion acceptance | 50,000 Martindale cycles | Suggested warranty period | 3 years |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | Seat upholstery | Light taupe padded upholstery over foam cushion; material grade appears leather-like and requires supplier BOM confirmation. |
| Back upholstery | Light taupe upholstered cushion with horizontal seam and contoured lower lumbar cut-out. | Rear back shell | Black rigid back shell bonded to the upholstered front cushion. |
| Arm and base frame | Polished chrome-plated steel cantilever tube forming integrated arms and sled runners. | Floor glides | Black non-marring polymer glides pressed onto all four runner ends. |
| Internal support board | 12 mm molded wood-composite seat board with 1.5 mm steel back plate, requiring supplier BOM confirmation. | Fixed cantilever support | Continuous chrome tube flexes slightly under load and returns to position, with no swivel, tilt, or height adjustment. |
| Integrated arm support | Tubular arms connect directly into the cantilever frame, providing a fixed 660 mm arm height above floor. | Lumbar cut-out | Open lower-back recess separates the two side bolsters and reduces contact at the sacral area. |
| Floor protection and positioning | Four black glides distribute load on hard floors and allow repositioning by lifting the chair. | Gross weight per carton | 17.5 kg |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Carton Dimensions | 850× 420× 720 mm | Reference Packaged Gross Weight | 23 kg/set |
| Reference Carton Volume | 0.26 m³/set | Meeting and visitor spaces | Suits conference rooms, reception areas, and executive visitor seating where a fixed upright posture and coordinated padded appearance are required. |
| Workstation guest seating | Suitable for placement across a desk at 760 mm work height because the 470 mm seat height provides standard desk-level seating. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 570 × 610 × 1060 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 160 kg static load | |
|---|---|---|
| Daily-use dynamic seating load | 120 kg | |
| Recommended net weight | 14.5 kg | |
| Seating capacity | 1 person | |
| Stacking quantity | 0 chairs | |
| Floor-protection glide count | 4 glides | |
| Back support zones | 2 padded zones | |
| Recommended upholstery abrasion acceptance | 50,000 Martindale cycles | |
| Suggested warranty period | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Light taupe padded upholstery over foam cushion; material grade appears leather-like and requires supplier BOM confirmation. | |
|---|---|---|
| Back upholstery | Light taupe upholstered cushion with horizontal seam and contoured lower lumbar cut-out. | |
| Rear back shell | Black rigid back shell bonded to the upholstered front cushion. | |
| Arm and base frame | Polished chrome-plated steel cantilever tube forming integrated arms and sled runners. | |
| Floor glides | Black non-marring polymer glides pressed onto all four runner ends. | |
| Internal support board | 12 mm molded wood-composite seat board with 1.5 mm steel back plate, requiring supplier BOM confirmation. |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed cantilever support | Continuous chrome tube flexes slightly under load and returns to position, with no swivel, tilt, or height adjustment. | |
|---|---|---|
| Integrated arm support | Tubular arms connect directly into the cantilever frame, providing a fixed 660 mm arm height above floor. | |
| Lumbar cut-out | Open lower-back recess separates the two side bolsters and reduces contact at the sacral area. | |
| Floor protection and positioning | Four black glides distribute load on hard floors and allow repositioning by lifting the chair. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight per carton | 17.5 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Meeting and visitor spaces | Suits conference rooms, reception areas, and executive visitor seating where a fixed upright posture and coordinated padded appearance are required. | |
|---|---|---|
| Workstation guest seating | Suitable for placement across a desk at 760 mm work height because the 470 mm seat height provides standard desk-level seating. |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
