Product supplierDark Brown Upholstered Sled-Base Visitor Chair with Chrome Arms, Dark brown smooth upholstery with tailored seams and padded cushioning
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

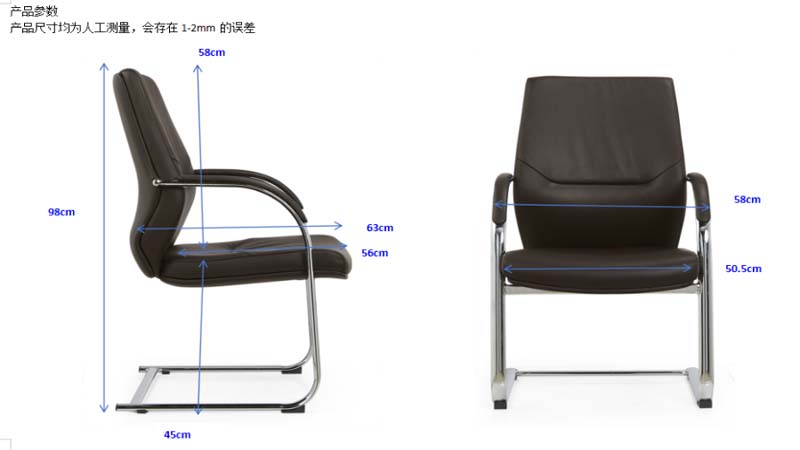

| Overall dimensions (W × D × H) | 580 × 630 × 980 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static load capacity | 160 kg | |
|---|---|---|
| Chair net weight | 11 kg | |
| Seating capacity | 1 person | |
| Stacking capacity | 0 chairs | |
| Recommended daily-use duration | 4 hours | |
| Floor glide contact area | 6,400 mm2 | |
| Frame fatigue reference | 100,000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Dark brown smooth upholstery with tailored seams and padded cushioning | |
|---|---|---|
| Seat cushion core | 80 mm molded foam pad with density target 35 kg/m3 | |
| Back cushion core | 70 mm padded foam panel with density target 30 kg/m3 | |
| Load-bearing frame | Polished chrome-plated 25 mm tubular steel cantilever sled frame | |
| Arm pads | Dark brown upholstered fixed pads mounted to the chrome side frame | |
| Floor protection | Black non-marring polymer glides fitted to four runner contact points |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cantilever support | Twin chrome sled legs flex slightly under load and eliminate rear casters for stable guest seating | |
|---|---|---|
| Arm support | Fixed padded armrests provide 220 mm upper-arm support above the seat with no height or width adjustment | |
| Floor protection | Four polymer glides distribute load and reduce scratching on hard floors without rotating or locking parts | |
| Movement and storage | Non-swivel, non-tilting, non-folding chair intended for stationary meeting-room use |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight per carton | 13 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Meeting and visitor areas | Fixed sled-base chair suited to conference rooms, reception zones and executive guest seating where mobility is not required | |
|---|---|---|
| Workstation consultation seating | Use across a desk or meeting table for short-to-medium meetings, with 450 mm seat height matching standard 760 mm tables |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office visitor chair safety | Recommended references: EN 16139 | |
|---|---|---|
| Upholstered furniture flammability | EN 1021applies to cigarette-ignition resistance of upholstery combinations | |
| Upholstered furniture flammability match test | EN 1021applies to match-flame ignition resistance of upholstery combinations |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Furniture mechanical safety | GB/T 10357.2 applies to chair back-strength and durability acceptance testing | |
|---|---|---|
| Furniture stability | GB/T 10357.7 applies to seating stability verification for floor-standing guest chairs | |
| Upholstered furniture indoor use | GB/T 27717 applies as a general specification reference for domestic seating performance |
Standardized tender description text
This product must meet the following technical requirements: 1. Furniture mechanical safety: GB/T 10357.2 applies to chair back-strength and durability acceptance testing; 2. Furniture stability: GB/T 10357.7 applies to seating stability verification for floor-standing guest chairs; 3. Upholstered furniture indoor use: GB/T 27717 applies as a general specification reference for domestic seating performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
