PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

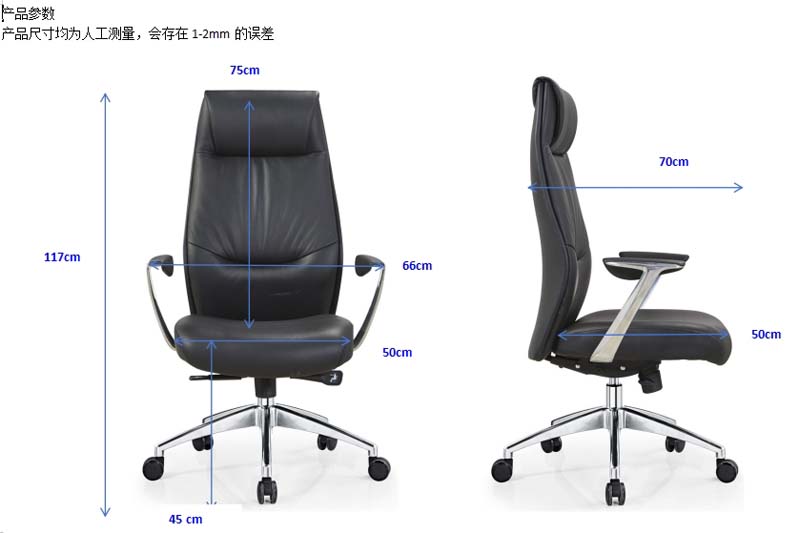

Overall dimensions (W × D × H)	660 × 700 × 1170 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	19 kg
Maximum user weight	150 kg
Seat static load verification target	150 kg
Backrest cyclic durability target	120,000 cycles
Seat cyclic durability target	100,000 cycles
Caster rolling durability target	100,000 cycles
Gas-lift stroke	100 mm
Seat height adjustment range	550 mm
Recline travel	15 degrees
Seat foam density	45 kg/m3

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Black leather or leather-look surface with tailored horizontal and contour seams
Seat cushion	Molded foam pad with rounded waterfall front and 100 mm thickness
Backrest cushion	Contoured high-back foam with lumbar shaping and integrated neck cushion
Armrest pads	Black upholstered pads mounted on polished angular metal supports
Arm supports	Polished die-cast aluminum or plated steel triangular supports with 2.5 mm wall section
Five-star base	Polished metal five-star caster base with 2.5 mm section thickness

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke from 450 mm to 550 mm.
Swivel movement	360-degree swivel around the central gas lift for access to desk and surrounding storage.
Backrest recline	Conventional under-seat tilt mechanism provides 15 degrees rearward travel.
Tilt lock	Visible side control is specified to lock or release recline at the selected working position.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	1 flat-packed chair assembly per carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Suits managers and executives using a 760 mm desk because the seat height starts at 450 mm and the high back supports long meetings.
Meeting or reception room	Black upholstery and polished aluminum base fit formal visitor areas where swivel access and easy movement are required.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Office chair dimensional safety basis for seat, back, clearance, and adjustment evaluation.
EN 1335-2 applicability	Structural safety requirement for strength, stability, and mechanism acceptance.
EN 1335-3 applicability	Test-method basis for durability, static load, impact, and caster verification.
EN 1022 applicability	Chair stability assessment when specified for commercial furniture purchasing.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 applicability	Recommended office-chair standard for back, seat, base, arm, caster, and tilt mechanism verification.
ANSI/BIFMA X5.4 applicability	Lounge and high-back seating reference if the chair is supplied for reception rather than task use.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 applicability	General technical requirement for wooden furniture and concealed chair support components used in procurement inspection.
GB/T 10357.3 applicability	Recommended test basis for chair strength and durability of seat and back loading.
GB/T 27927 applicability	Recommended tipping safety evaluation for a five-star swivel office chair.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 applicability: General technical requirement for wooden furniture and concealed chair support components used in procurement inspection.;
2. GB/T 10357.3 applicability: Recommended test basis for chair strength and durability of seat and back loading.;
3. GB/T 27927 applicability: Recommended tipping safety evaluation for a five-star swivel office chair.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXE-HB-LEA-660700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXE-HB-LEA-660700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXE-HB-LEA-660700Open Export Tool

Quick Actions

Post an RFQ

Product Description

The EXE-HB-LEA-660700 is an unbranded high-back executive swivel chair designed for professional offices, meeting rooms, and formal reception settings. Its appearance is defined by black leather or leather-look upholstery, tailored horizontal and contour seams, a tall contoured back, and an integrated neck cushion. The polished angular arm supports and five-star base give the chair a refined executive profile, while black twin-wheel casters maintain a discreet visual finish. At the illustrated position, the overall dimensions are 660 by 700 by 1170 mm, with 540 mm of clear width between the armrests. Comfort is structured around molded and contoured foam padding. The seat cushion uses molded foam with a rounded waterfall front and 100 mm thickness; the finished cushion thickness is listed as 90 mm. The high-back cushion has 70 mm padding thickness, lumbar shaping, and a 240 mm high lumbar support zone. Armrest pads are upholstered in black and fixed to polished triangular supports made from die-cast aluminum or plated steel with a 2.5 mm wall section. The polished metal five-star caster base also uses 2.5 mm section thickness, and the central height mechanism uses a steel gas lift. Functional controls support typical desk-based executive work. A pneumatic lever adjusts seat height through a 100 mm stroke, from 450 mm to 550 mm. The chair rotates 360 degrees around the central gas lift for access to the desk and nearby storage. A conventional under-seat tilt mechanism allows 15 degrees of rearward recline, and a visible side control locks or releases the backrest at the selected working position. The chair has a net weight of 19 kg and a maximum user weight of 150 kg, matching the stated seat static load verification target. Durability targets include 120,000 backrest cycles, 100,000 seat cycles, and 100,000 caster rolling cycles. The black upholstery and polished base suit managers and executives using a 760 mm desk, particularly where the high back is preferred for long meetings. The same formal appearance also makes the chair suitable for meeting or reception rooms that need swivel access and easy movement. For procurement, note that this is an unbranded model and should be specified by material, function, and model number rather than by a supplier label. Logistics data lists one flat-packed chair assembly per carton, with a reference package count of one set across two cartons, reference packaged gross weight of 23 kg per set, reference carton dimensions of 850 by 420 by 720 mm, and reference carton volume of 0.26 cubic meters per set. Assembly time is referenced at 40 minutes per set.

High-Back Black Leather Executive Swivel Chair with Integrated Headrest and Polished Aluminum Base Specifications
