PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 680 × 1030 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Recommended user weight capacity	160 kg
Recommended occupant height range	190 cm
Gas-lift static load rating	160 kg
Back tilt range	115degrees
Seat height adjustment stroke	60 mm
Seat foam density	45 kg/m3
Back foam density	35 kg/m3
Foam rebound rate	42%
Fabric abrasion acceptance target	50,000 Martindale cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Tan full-grain or corrected leather face with leather-match sides, tailored over padded cushion
Back upholstery	Tan leather or leather-match cover over contoured foam panel
Seat cushion	90 mm polyurethane foam with 45 kg/m3 density target over shaped load-bearing board
Back cushion	70 mm polyurethane foam with 35 kg/m3 density target over rigid back carrier
Internal seat frame	15 mm molded plywood or steel-reinforced composite seat board with steel mounting plates
Back support frame	18 mm molded plywood carrier or 1.5 mm steel back bracket connected to mechanism
Arm pads	Tan upholstered padding over rigid board with softly rounded front edge
Arm supports	Polished die-cast aluminum or stainless-steel angular supports with bright finish
Gas lift	Chrome-plated steel telescopic gas cylinder with 50 mm outer tube
Tilt mechanism	Black powder-coated steel mechanism plate with side lever and rear tension knob
Five-star base	Polished die-cast aluminum five-star base with five radiating legs
Casters	Black nylon twin-wheel casters with steel axle and 60 mm wheel diameter

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel	Central gas-lift swivel enables full 360-degree seat rotation for desk access and egress
Pneumatic seat height	60 mm upward travel controlled by the visible under-seat lever, giving 500 mm seat height
Synchronized or center tilt	Backrest reclines to 115 degrees through the under-seat steel mechanism with upright 90-degree lock position
Tilt tension adjustment	Rear rotary knob adjusts spring resistance for user weights up to 160 kg
Fixed arm support	Padded armrests remain fixed at 230 mm above the seat to support forearms during keyboard work
Mobile caster base	Five 60 mm twin-wheel casters provide rolling movement on hard floors and low-pile carpet
Lumbar contact zone	Contoured lower-back pad provides passive lumbar support without separate adjustable lumbar
Recline lock	Multi-position mechanism lock allows upright work and reclined rest settings
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Fits behind a 2000 mm executive desk where tan upholstery and polished metal create a formal business appearance
Open-plan workstation	Suitable for managers requiring swivel access, 500 mm desk-height compatibility, and mobile caster movement
Meeting or conference room	Pairs with boardroom tables for daily meetings up to several hours using passive lumbar support and fixed armrests
Home office	Suitable for a dedicated home office with hard flooring or low-pile carpet and a standard 760 mm desk
Reception or consulting room	Provides visitor or consultant seating with easy movement and a refined leather-like appearance
Procurement configuration	Recommended in batches with matching tan guest chairs for private offices and director suites
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 office chair dimensional safety applicability	Use to assess seating dimensions, stability boundaries, and ergonomic geometry
EN 1335-2 office chair safety requirements applicability	Applicable standards and test results require confirmation
EN 1335-3 office chair test methods applicability	Use laboratory strength, durability, and fatigue test methods for procurement inspection
EN 1021-1 upholstered seating ignited cigarette applicability	Specify when upholstered seating requires cigarette-ignition resistance testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 office chair safety applicability	Applicable standards and test results require confirmation
ANSI/BIFMA X5.4 lounge and public seating applicability	Consider only if the chair is deployed in heavy public or conference lounge areas

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357 furniture mechanical testing applicability	Apply chair strength and durability test methods to back, seat, arms, and base structures
GB 17927-2022 upholstered furniture anti-dumping applicability	Verify ignitability and anti-dumping components if the chair is supplied for regulated projects

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357 furniture mechanical testing applicability: Apply chair strength and durability test methods to back, seat, arms, and base structures;
2. GB 17927-2022 upholstered furniture anti-dumping applicability: Verify ignitability and anti-dumping components if the chair is supplied for regulated projects;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MB-TAN-AL5

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MB-TAN-AL5

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MB-TAN-AL5Open Export Tool

Quick Actions

Post an RFQ

Product Description

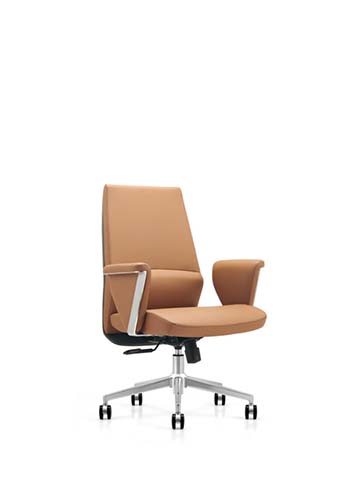

The Mid-Back Tan Leather Executive Swivel Chair, model OFC-MB-TAN-AL5, presents a formal executive profile with warm tan upholstery, a mid-height back, fixed padded arms, and a bright polished metal five-star base. Its angular arm supports and tailored cushioning give the chair a structured business appearance, while the contoured back and rounded arm-pad fronts soften the visual line. Overall dimensions are 650 by 680 by 1030 mm, with 540 mm between the armrests, making it suitable for a substantial executive desk without appearing oversized. The unbranded design supports coordinated installations where a consistent tan and polished-metal finish is preferred. Construction combines upholstered comfort with durable load-bearing components. The seat uses tan full-grain or corrected leather on the face with leather-match sides, fitted over a 90 mm polyurethane foam cushion at a 45 kg per cubic meter density target and a shaped support board. The back uses tan leather or leather-match over a contoured 70 mm foam panel and rigid carrier. Internal framing is 15 mm molded plywood or steel-reinforced composite with steel mounting plates; the back frame is 18 mm molded plywood or a 1.5 mm steel bracket. Arm supports are polished die-cast aluminum or stainless steel, the gas lift is chrome-plated steel with a 50 mm outer tube, and the mechanism plate is steel. Twin-wheel nylon casters complete the base. The chair weighs 18 kg and carries a recommended user weight capacity of 160 kg, matched by the gas-lift static load rating. Maximum recommended occupant height is 190 cm. Functionality is centered on daily desk use. A central gas lift provides 360-degree swivel and 60 mm of pneumatic seat-height travel, reaching a 500 mm seat height. The steel under-seat mechanism offers synchronized or center tilt, reclining to 115 degrees with a locked upright position at 90 degrees. A rear rotary knob adjusts tilt tension for users up to 160 kg. Fixed armrests sit 230 mm above the seat for forearm support during keyboard work, and a 240 mm high contoured lumbar contact zone provides passive lower-back support. Five 60 mm twin-wheel casters allow movement on hard floors and low-pile carpet. The chair fits private executive offices, including placement behind a 2000 mm executive desk, as well as manager workstations in open-plan areas. It is also appropriate for meeting rooms, home offices paired with a standard 760 mm desk, and reception or consulting spaces that require a refined leather-like appearance. For conference use, the passive lumbar support and fixed arms suit meetings lasting several hours. Procurement teams should note that each set ships in two cartons, with packaged gross weight of 23 kg, carton dimensions of 850 by 420 by 720 mm, and reference assembly time of 40 minutes. Carton volume is 0.26 cubic meters per set, and an indicative 20GP container loads 135 sets at 85 percent space utilization. Batch ordering with matching tan guest chairs is recommended for private offices and director suites.

Mid-Back Tan Leather Executive Swivel Chair Specifications
