Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

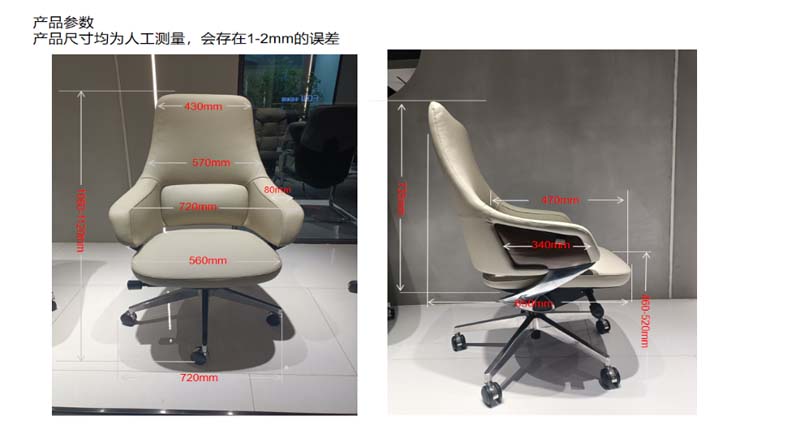

| Overall dimensions (W × D × H) | 720 × 650 × 1120 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 22 kg | |
| Gas-lift stroke | 60 mm | |
| Back recline range | 125 degrees | |
| Tilt tension adjustment | 5 turns | |
| Seat-foam density | 45 kg/m3 | |
| Back-foam density | 35 kg/m3 | |
| Seat-foam rebound | 40% | |
| Caster rolling durability | 100000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Light beige leather-look upholstery over contoured foam | |
|---|---|---|
| Cushion construction | Molded polyurethane foam with separate lumbar pad | |
| Armrests | Padded beige arm caps with dark rigid side panels and polished metal trim | |
| Base | Five-spoke painted metal star base with polished appearance | |
| Gas lift and seat plate | Black powder-coated steel gas lift and under-seat mechanism | |
| Casters | Five black twin-wheel swivel casters with brake-free stems |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat-height adjustment | Pneumatic gas lift adjusts the seat from 460 mm to 520 mm through an under-seat lever | |
|---|---|---|
| Swivel movement | 360-degree seat rotation on the central gas-lift swivel | |
| Recline and lock | Synchronized tilt with 125-degree maximum back angle and 3 lock positions | |
| Mobility | Five twin-wheel casters provide rolling movement on hard floors; no caster brake is visible |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight | 26 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive and management offices | High-back support, padded armrests, and polished trim suit private offices and managerial workstations. | |
|---|---|---|
| Meeting and client-facing spaces | The beige upholstery and refined side panels support reception meetings, conference rooms, and executive visitor settings. |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
