Two-Tone Upholstered Visitor Chair with Chrome Sled Base (model VC-SLED-680-1010-OR) is listed under Executive Boss Chair. Dimensions: 680 × 700 × 1010 mm. Materials: Orange padded upholstery over foam cushion; exact leather or fabric grade requires supplier BOM confirmation. Load capacity: 500 kg. Product Features: modern,two-tone,upholstery,fixed,armrests,cantilever,sled,base,visitor,seating. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | VC-SLED-680-1010-OR |

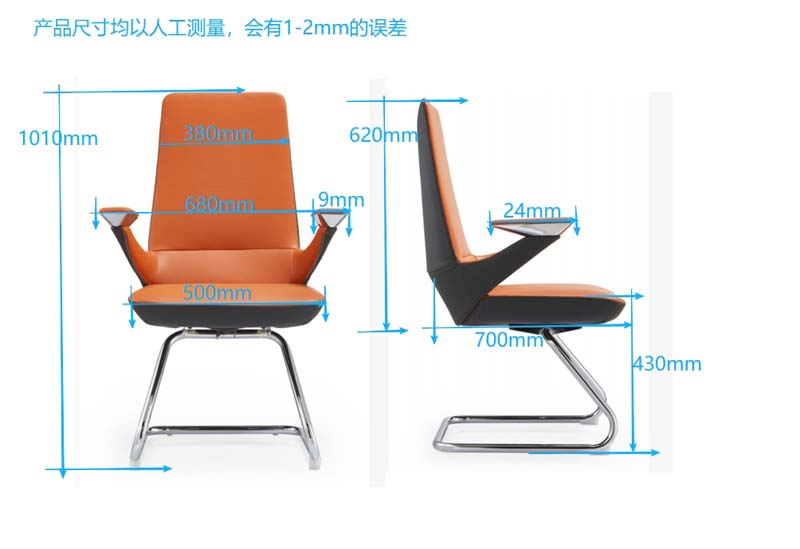

| Overall dimensions (W × D × H) | 680 × 700 × 1010 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended user weight capacity | 120 kg |
| Static seat proof load | 500 kg | Backrest rearward pull test target | 136 kg |
| Arm vertical load target | 68 kg per arm | Chair net weight | 14 kg |
| Quantity of floor contact runners | 2 | Floor glide count | 4 |
| Seating capacity | 1 person | Durability target for fixed frame | 100000 cycles |
| Fabric abrasion acceptance target | 50000 Martindale cycles | Seat upholstery | Orange padded upholstery over foam cushion; exact leather or fabric grade requires supplier BOM confirmation |
| Backrest upholstery | Orange upholstered front backrest with tailored horizontal seam and foam support; material grade requires BOM confirmation | Outer back and side shell | Black rigid upholstered or molded outer shell forming the rear back and seat-side body |
| Arm pads | Black cushioned arm pads with a 24 mm padded section and 9 mm rigid top plate | Arm supports | Black molded side supports connecting each arm pad to the seat shell |
| Sled frame | Polished chrome-plated steel cantilever frame with continuous floor runners and rounded bends | Fixed-height seating | 430 mm fixed seat height for upright visitor or conference posture; no height-raising mechanism is visible |
| Cantilever flex movement | Twin chrome runners provide controlled downward flex under load and return without pivoting parts | Fixed arm support | Integrated armrests provide static forearm support with padded 24 mm tops and no adjustment controls |
| Floor protection | Four runner-end contact points isolate the chrome tube from hard flooring and reduce sliding noise | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Carton Dimensions | 850× 420× 720 mm |
| Reference Packaged Gross Weight | 23 kg/set | Reference Carton Volume | 0.26 m³/set |
| Indicative 20GP Loading | 135 sets at 85% space utilization | Visitor and meeting areas | Suitable for reception rooms, conference rooms, and executive visitor seating due to fixed 430 mm seat height and supportive armrests |
| Open-office guest seating | Use beside desks or in collaboration zones where a non-swivel, space-efficient chair prevents rollaway and keeps walkways clear | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 700 × 1010 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 120 kg | |
|---|---|---|
| Static seat proof load | 500 kg | |
| Backrest rearward pull test target | 136 kg | |
| Arm vertical load target | 68 kg per arm | |
| Chair net weight | 14 kg | |
| Quantity of floor contact runners | 2 | |
| Floor glide count | 4 | |
| Seating capacity | 1 person | |
| Durability target for fixed frame | 100000 cycles | |
| Fabric abrasion acceptance target | 50000 Martindale cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Orange padded upholstery over foam cushion; exact leather or fabric grade requires supplier BOM confirmation | |
|---|---|---|
| Backrest upholstery | Orange upholstered front backrest with tailored horizontal seam and foam support; material grade requires BOM confirmation | |
| Outer back and side shell | Black rigid upholstered or molded outer shell forming the rear back and seat-side body | |
| Arm pads | Black cushioned arm pads with a 24 mm padded section and 9 mm rigid top plate | |
| Arm supports | Black molded side supports connecting each arm pad to the seat shell | |
| Sled frame | Polished chrome-plated steel cantilever frame with continuous floor runners and rounded bends |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed-height seating | 430 mm fixed seat height for upright visitor or conference posture; no height-raising mechanism is visible | |
|---|---|---|
| Cantilever flex movement | Twin chrome runners provide controlled downward flex under load and return without pivoting parts | |
| Fixed arm support | Integrated armrests provide static forearm support with padded 24 mm tops and no adjustment controls | |
| Floor protection | Four runner-end contact points isolate the chrome tube from hard flooring and reduce sliding noise |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Visitor and meeting areas | Suitable for reception rooms, conference rooms, and executive visitor seating due to fixed 430 mm seat height and supportive armrests | |
|---|---|---|
| Open-office guest seating | Use beside desks or in collaboration zones where a non-swivel, space-efficient chair prevents rollaway and keeps walkways clear |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
